Details

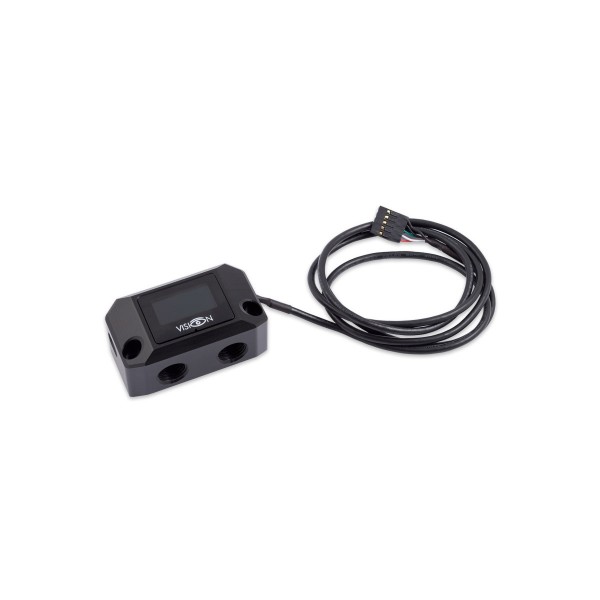

The Aquacomputer VISION RGBpx Connection Terminal for Kryographics is an exchange connection terminal for kryographics-series graphics card coolers as well as the kryoM.2 water cooler. It has a high-resolution OLED graphic display, an RGBpx controller and a USB interface for data visualization. Important: it is used on a water cooler you already own, since neither the cooler nor the backplate is included in the delivery.
Properties
- For
- kryographics series graphics card blocks, kryoM.2 water blocks
- Display
- OLED, 128x64 pixels
- Lighting
- RGBpx output, up to 30 addressable LEDs
- Sensor input
- 1 temperature sensor connector
- Interface
- USB, internal connector, also the power supply
- Size
- approx. 62 x 35 x 31 mm excluding cable
Graphic display
The display's resolution is 128x64 pixels. Aquacomputer says the OLED technology guarantees an exceptional contrast ratio and a wide viewing angle, and due to that excellent contrast the screen can be read from many angles.
The connecting terminal shows a variety of PC hardware data on its display pages. Layouts include single value screens, lists, bar graphs and charts (diagrams), and all texts and graphic logos can be individually adapted to personal preferences. A note pad function shows short memos.
RGBpx controller and temperature sensor
Up to 30 addressable LEDs are controlled via the integrated RGBpx controller, which Aquacomputer points out is especially useful for the integrated RGBpx LEDs in various kryographics series water blocks. There is also a connection for a temperature sensor in the VISION controller. With a compatible sensor connected, temperature is constantly monitored, and these values can be displayed immediately on a display page.
What you need to connect it
The terminal is supplied with power through its USB cable, which goes to an internal USB header of your motherboard; take special care that the pin alignment matches. By default the current is limited to 0.5 Amps, the maximum the USB specification allows, and with many LEDs the brightness is reduced automatically. A 1 Amp limit can be activated, but only on a USB port its manufacturer explicitly specifies for at least 1 Amp. LED products, their interconnecting cables and sensors are optional accessories.
Compatibility
Aquacomputer lists these RGBpx products for the RGBpx connector:
- RGBpx LED-Strip (53268, 53269, 53270)
- RGBpx lighting set (53271, 53272)
- RGBpx Splitty4 (53267)
- RGBpx Splitty12 ACTIVE (53300)
- RGBpx LED ring for ULTITUBE (34115)
- RGBpx LED ring for aqualis (53274, 53276)
- RGBpx LED ring for 60 mm reservoir (53277)
- RGBpx cable (53259, 53260, 53261, 53266, 53297)
Aquacomputer's note: on a product with more than one RGBpx connector, use the one marked "IN"; further RGBpx products go on "OUT". These temperature sensors fit the sensor connector:
- Temperature sensor inline G1/4 for VISION (53218)
- Temperature sensor inner/outer thread G1/4 for VISION (53219)
- Temperature sensor G1/4 for VISION (53220)
- Temperature sensor 70 cm for VISION (53211)
- Temperature sensor 5 cm for VISION (53227)
aquasuite software
The terminal runs without aquasuite, since every setting can be saved into the device's memory. Activating it gives you the current aquasuite version with an upgrade service for at least six (6) months. After it expires, the latest version from that period stays usable and reinstallable with no time limit. The update service can be extended or renewed for a fee, and installation and activation need an internet connection.
Notes
- Completely turn off your power supply before connecting or disconnecting any cable.
- Electronic components and headers must not get in contact with coolant or water.
In the box
- 1x Aquacomputer VISION RGBpx Connection Terminal for Kryographics with USB cable (Internal connector)
The manual covers the whole VISION RGBpx series, so some chapters do not apply to this terminal.
