Details

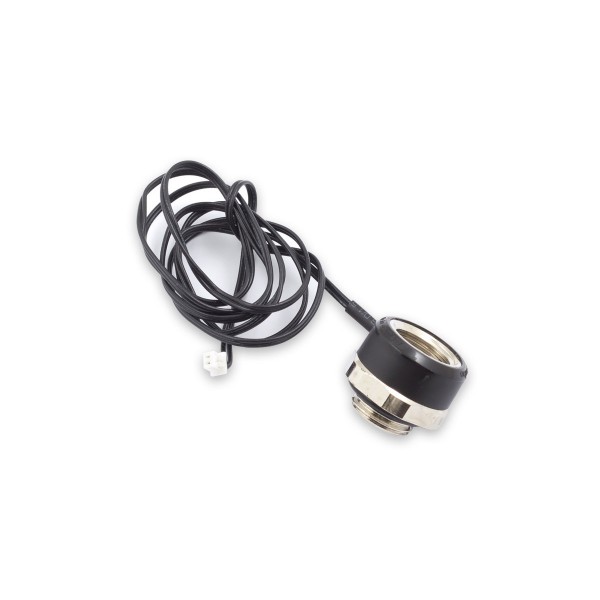

The Aquacomputer Temperature Sensor Internal/External Thread G1/4 for VISION is a coolant temperature sensor with one G1/4 inner thread and one G1/4 outer thread. It connects to VISION Touch, the VISION connection terminals for kryographics and high flow NEXT.
Properties
- Threads
- G1/4 inner, G1/4 outer with o-ring seal
- Cable
- approx. 60 cm, female miniature connector
- Body material
- Nickel plated brass
- Cover material
- Delrin
Fit and technical details
The outer thread, sealed by its o-ring, goes straight into a port of a water block or radiator. The hose fitting that would have used that port then screws into the sensor's inner thread, so it can be installed directly between water block/radiator and hose fitting.
What a run needs
One G1/4 fitting for the inner thread, from our fittings section. This sensor is equipped with a cable about 60 cm in length, and its connector goes to a temperature sensor input on one of the devices below.
Compatibility
Aquacomputer lists the sensor as compatible with these devices:
- VISION Touch (53235)
- VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
- VISION RGBpx connection terminal for kryographics (23686, 23687)
- high flow NEXT (53293)
