Details

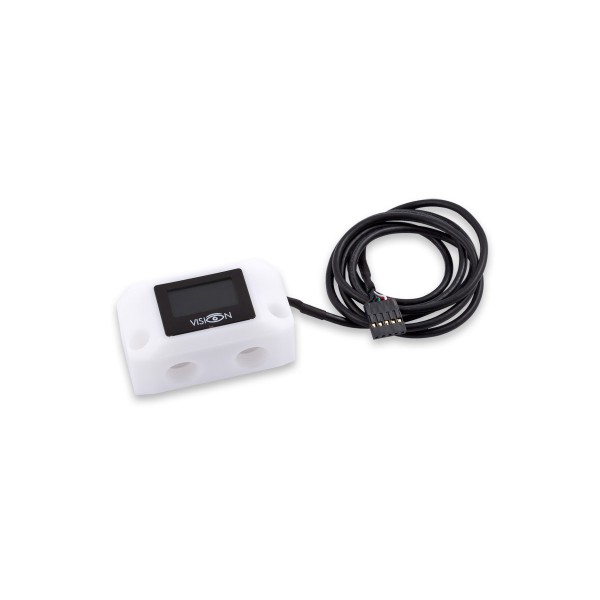

The Aquacomputer VISION Glow Connection Terminal for Kryographics (23665) is a replacement connection terminal for kryographics series graphics card blocks and kryoM.2 water blocks. It is equipped with a high resolution OLED graphic display and a USB interface for data visualization. The water block is not included in delivery.
Properties
- For
- kryographics graphics card blocks, kryoM.2 water blocks
- Interface
- USB (internal header), aquabus
- Connections
- temperature sensor, flow sensor or alarm output
- Dimensions
- approx. 62 x 35 x 31 mm, excluding cable
OLED graphic display
The VISION controller shows its data on a 128x64 pixels OLED panel. Aquacomputer says the OLED technology guarantees an exceptional contrast ratio and a wide viewing angle. Display contents are individually configurable: up to twelve pages show a variety of PC hardware data. Design layouts include single value screens, lists, bar graphs and charts. All texts and graphical logos may be modified to accommodate personal preferences, and a note pad function shows short memos.
RGB illumination
RGB illumination is included: the integrated RGB LED is adjusted in color and brightness, and color change or a temperature dependent color can also be configured.
Sensor and alarm connectors
The controller features one connector for a temperature sensor. A compatible sensor connected there is constantly monitored, and its temperature can feed display pages. If an adjustable threshold is exceeded, an alarm function can trigger a configurable action.
A second connector takes either an Aqua Computer flow sensor or, alternatively, an alarm output for emergency shutdown of the PC, never both at once. Both options need additional accessories, not included.
aquabus interface
Through the aquabus interface the VISION controller connects to an aquaero 5 or 6, such as the aquaero 6 LT or aquaero 6 PRO, and the two devices then exchange various sensor data. USB and aquabus can be used at the same time. Once the terminal is fully configured and connected to an aquaero via aquabus, the USB connection is not required for operation.
What you need to connect it
The USB cable in the box goes to an internal USB header; check that the pin alignment matches your motherboard. For the aquaero link, use the 4-pin aquabus cable for VISION (53214). The alarm output reaches the motherboard's power switch header through the alarm output cable (53216).
Compatibility
Aquacomputer lists these temperature sensors as compatible:
- Temperature sensor inline G1/4 for VISION (53218)
- Temperature sensor inner/outer thread G1/4 for VISION (53219)
- Temperature sensor G1/4 for VISION (53220)
- Temperature sensor 70 cm for VISION (53211)
- Temperature sensor 5 cm for VISION (53227)
These flow sensors fit the flow sensor input:
- Flow sensor with 5.6 mm nozzle (53061, requires cable 53212)
- Flow sensor "high flow" (53068, requires cable 53212)
- Flow sensor high flow LT (53291)
- Flow sensor high flow 2 (53292)
aquasuite software
Setup over USB is done in the aquasuite software. Activation gives you the current version with an upgrade service for at least six (6) months; the latest version from that period stays usable with no time limit. The service can be extended or renewed for a fee. Installation and activation need an internet connection.
Notes
- The connection terminal ships with its own installation manual; install it according to that manual.
In the box
- 1x Aquacomputer VISION Glow Connection Terminal for Kryographics
- USB cable (internal connector)
Aquacomputer's manual covers the whole VISION series, with pin assignments and every aquasuite setting.
