Details

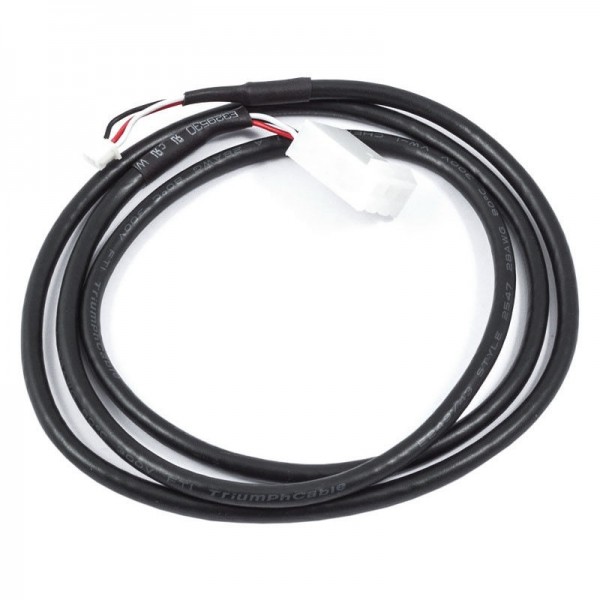

The Aquacomputer Connection Flow Sensor Cable for VISION, OCTO, QUADRO and Farbwerk 360 is a three-pin flow sensor cable. It links an Aqua Computer flow sensor (art. no. 53061 or 53068) to the miniature flow sensor input of Aqua Computer components such as the VISION series, QUADRO, farbwerk 360 and OCTO.
Properties
- For
- flow sensors 53061 and 53068
- Connectors
- three-pin, female plug on both sides
- Length
- approx. 70 cm, including connectors
- Pieces
- one cable
How it connects
Both ends carry a female plug. One goes onto the flow sensor, the other onto the device's sensor input with the miniature connector. The length is measured from end to end, the plugs included, and the box holds just the one cable.
What a run needs
Two flow sensors fit this cable: the flow sensor "high flow" G1/4 (art. no. 53068) and the flow sensor with a 5.6 mm nozzle (art. no. 53061). Other flow sensors for the loop are in our flow rate and pressure sensors section.
Compatibility
Aquacomputer lists the cable as compatible with these devices:
- cuplex kryos NEXT with VISION
- VISION connection terminal for kryographics (23664, 23665, 23666, 23667)
- VISION Touch (53232, 53235)
- QUADRO (53256)
- farbwerk 360 (53279)
- OCTO (53286)
