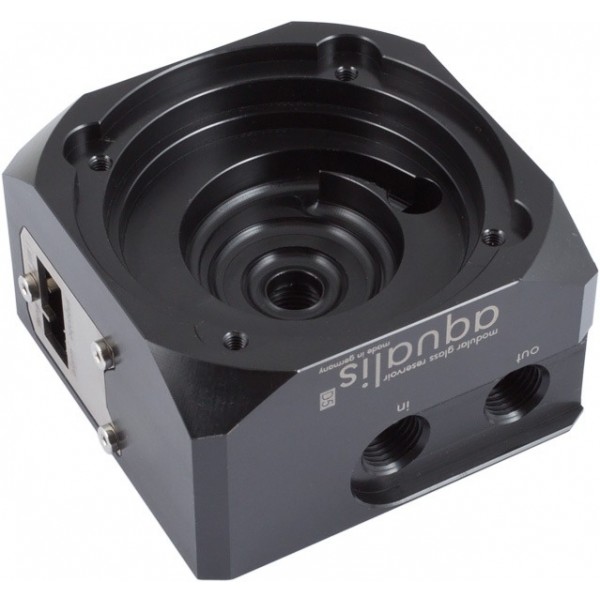

Aquacomputer Aqualis D5 Pump Top with Fill Level Sensor (41095)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

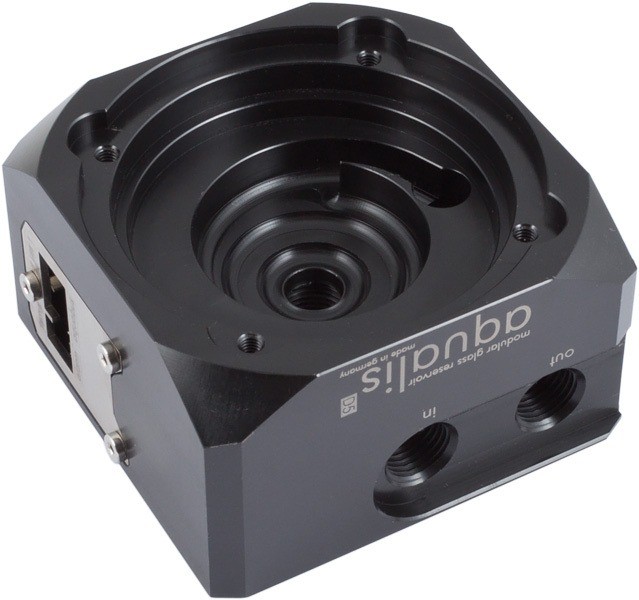

Aquacomputer Aqualis D5 Pump Top with Fill Level Sensor (41095)

Availability: Out of stock

Sku: 52225

$75.25

Quick Overview

The Aquacomputer Pump Top for DDC pumps is a perfect addition to any watercooling system. It's ability to sync with the Aquabus XT interface and other modules surrounding it, gives enthusiasts maximum knowledge and control over their systems. These pumps tops are required for use with the Aqualis BASE series reservoirs.

Details

The Aqua Computer pump adapter for DDC pumps is manufactured from durable Delrin. The adapter can either be used as a stand-alone pump adapter or in combination with a compatible aqualis series reservoir. A mounting bracket made from stainless steel is included in delivery, an optional decoupling set can also be used (not included in delivery). For mounting a DDC series pump, suitable screws are provided. When used with an aqualis series reservoir (art. no. 45324 or 45325), pump adapter and reservoir form a virtually seamless unit. The sockets at the base of the reservoir slide into form-fitting receptables of the pump adapter and the gaskets on the sockets establish a watertight seal. When used with a reservoir, the threads on the side of the pump adapter must be used to connect the water loop.

Additionally, a fill level sensor of the mps series is integrated into the pump adapter. The fill level sensor features an integrated microcontroller with USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the flow sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors. A pressure equalisation membrane is included in delivery of the pump adapter and is to be installed into the top port of the reservoir. When used without an aqualis series reservoir, the fill level sensor is not operational! G1/4 inlet threads for fittings can be used on the top and side of the pump adapter, the pressure side is always connected to a G1/4 port on the side. The unused inlet thread can be sealed with a G1/4 sealing screw supplied with the pump adapter.

Installation Manual

Additional Information

NE US Item # 9SIA9F94S72286
NE CA Item # 9SIAA5K4S72249
Amazon ASIN NA
Manufacturer Aquacomputer
Overall Dimensions Unknown
Color Black / Dark Blue
Product Type Pump Top
Pump Compatibility D5
Number of Ports 4x G1/4
Included -1x Aquacomputer D5 Pump Top with Fill Level Sensor
Material Acetal
