Details

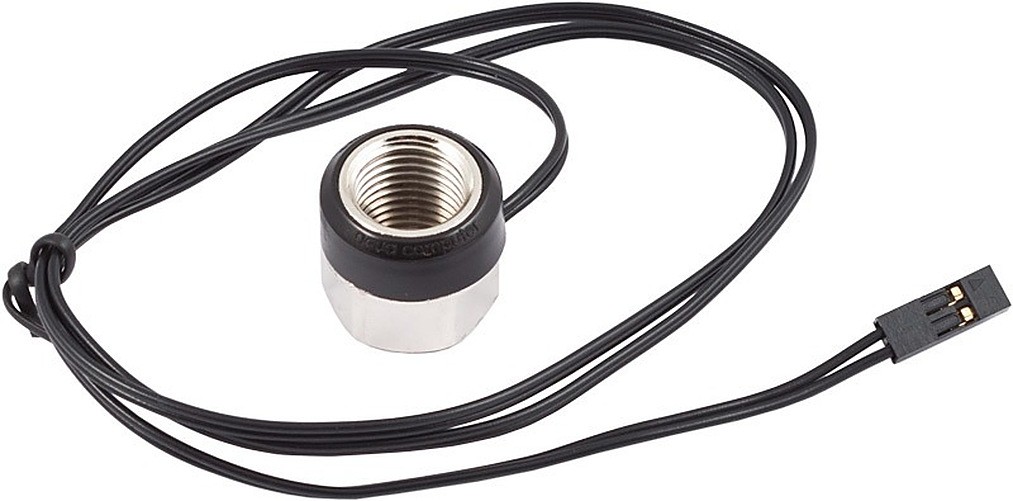

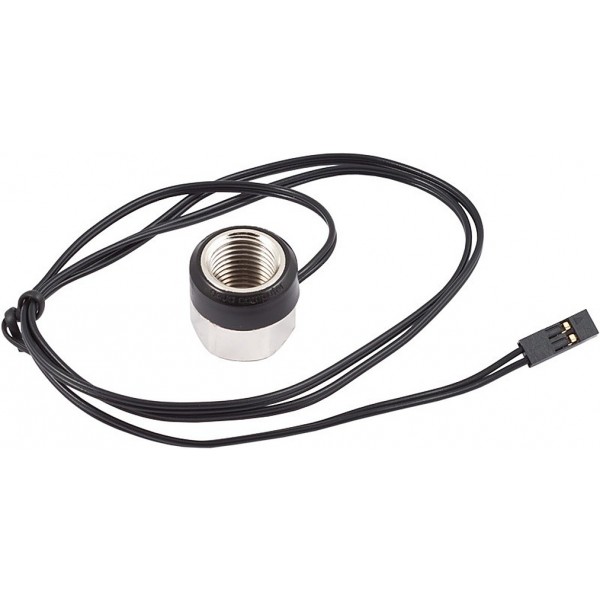

The Aquacomputer G1/4 Temperature Sensor Inline for Aquaero, Aquastream XT and Aquaduct (53066) is an inline coolant temperature sensor with G1/4 inner threads on both sides. This sensor is equipped with a connection cable that has a length of approx. 60 cm and a 2-pin female connector for the sensor input of a controller.
Properties
- Thread
- G1/4 inner, both sides
- Cable
- approx. 60 cm, 2-pin female connector
- Body material
- Nickel plated brass
- Cover material
- Delrin
How it fits
With an inner thread on each side, the sensor sits in a tube run between two fittings, and the two threads allow maximum flexibility in where it goes. Most fittings on the market can therefore be used with it, allowing the use of almost any hose size.
What a run needs
Each side takes one G1/4 hose fitting, so the sensor needs two; the matching tube fittings are in our fittings section. The plug goes to a temperature sensor input, for example on the OCTO fan controller.
Compatibility
Aquacomputer lists the sensor as compatible with these devices:
- aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
- aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
- aquaero 3.07, aquaero 4.00 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
- QUADRO (53256)
- OCTO (53286)
- aquastream ULTIMATE (41108)
- aquastream XT Ultra (41061)
- poweradjust 2 (53082, 53083)
- poweradjust 3 (53166, 53167)
- farbwerk (53170, 53171, 53207)
- farbwerk 360 (53279)
- high flow USB (53129)
- mps flow (53130, 53131, 53132)
- mps pressure (53133, 53134, 53135, 53136, 53160)
- aqualis XT (34041, 34042, 34050, 34058, 34059, 34060, 34061, 34072)
- aquainlet XT (34066, 34067, 34068, 34069)
- D5 pump with USB and aquabus interface (41093)
- Pump adaptors and pump modules with fill level sensor (41095, 41097, 41099, 41101)
- aquaduct variants with external sensor input (360 XT, 720 XT)
- Sensor inputs of many motherboards
