Details

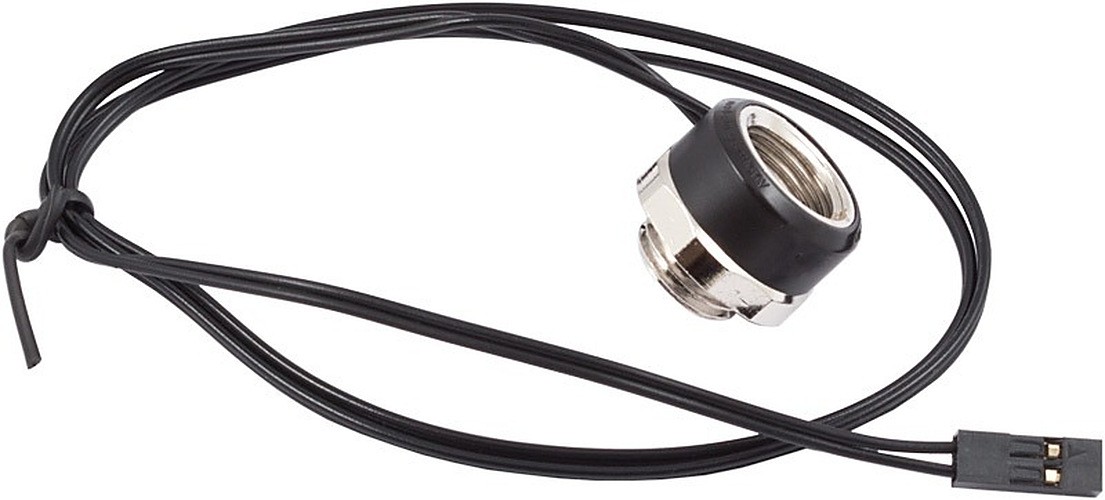

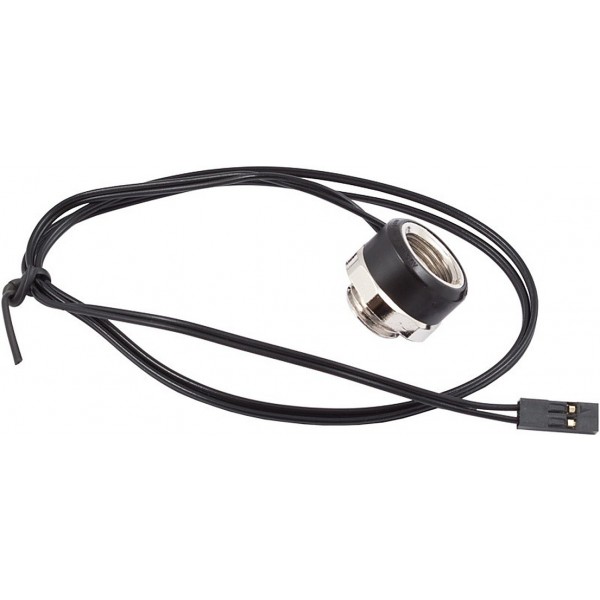

The Aquacomputer G1/4 Temperature Sensor - Black is a coolant temperature sensor with one G1/4 inner thread and one G1/4 outer thread. It can therefore be integrated easily, even directly on a waterblock or radiator port, between that port and the hose fitting.
Properties
- Thread
- G1/4 inner, G1/4 outer with O-ring seal
- Cable
- approx. 60 cm long, two-pin female plug
- Body material
- Nickel plated brass
- Cover material
- Delrin
How it fits
The outer thread, sealed by an O-ring, screws into the port of a block or radiator. The inner thread then takes the hose fitting that would have gone into that port. This sensor is equipped with a cable of about 60 cm, and it has a two-pin female plug at the end for connection to the controller.
What a run needs
One G1/4 fitting goes into the sensor's inner thread; the matching tube fittings are in our fittings section. The plug goes to a temperature sensor input, for example on the OCTO fan controller.
Compatibility
Aquacomputer lists the sensor as compatible with these devices:
- aquaero 6 XT / PRO / LT (53145, 53146, 53206, 53234, 53250, 53251, 53253, 53262, 53263)
- aquaero 5 XT / PRO / LT (53089, 53090, 53095, 53125, 53249, 53252)
- aquaero 3.07, aquaero 4.00 (53030, 53031, 53035, 53045, 53048, 53064, 53075, 53076)
- QUADRO (53256)
- OCTO (53286)
- aquastream ULTIMATE (41108)
- aquastream XT Ultra (41061)
- poweradjust 2 (53082, 53083)
- poweradjust 3 (53166, 53167)
- farbwerk (53170, 53171, 53207)
- farbwerk 360 (53279)
- high flow USB (53129)
- mps flow (53130, 53131, 53132)
- mps pressure (53133, 53134, 53135, 53136, 53160)
- aqualis XT (34041, 34042, 34050, 34058, 34059, 34060, 34061, 34072)
- aquainlet XT (34066, 34067, 34068, 34069)
- D5 pump with USB and aquabus interface (41093)
- Pump adaptors and pump modules with fill level sensor (41095, 41097, 41099, 41101)
- aquaduct variants with external sensor input (360 XT, 720 XT)
- Sensor inputs of many motherboards
