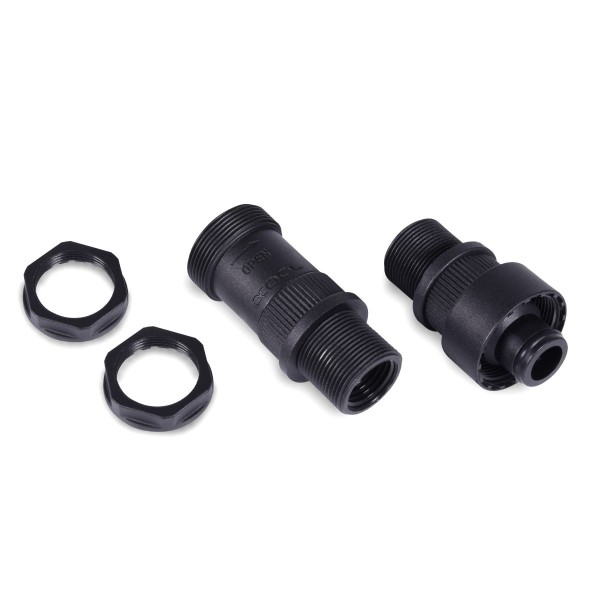

Alphacool HF Quick Release Coupling Set IT/IT - Bulkhead Fitting (17599)

The Alphacool HF Quick Release Coupling Set IT/IT - Bulkhead Fitting (17599) is one quick disconnect set with two G1/4 internal threads for permanent mounting on a PC or server case. It connects an external radiator or cooling system to the water circuit inside.

Properties

Thread

G1/4 IT, two internal connections

Mounting

Two case openings, each 18 mm diameter

Material

Nylon

Color

Black

Pieces in the pack

1 coupling set

Mounting

The set works like a bulkhead fitting and enables quick connection or disconnection of externally connected radiators. It can be mounted permanently on a case. As the mounting example shows, male and female connectors are inserted threaded side first through the two round openings. Then they are screwed tight with the enclosed lock nuts. The water circuit is then connected via the two G1/4 internal threads on the inside. Using additional HF quick-release fasteners, external cooling systems can now be easily connected to the system in the case.

Safety and compatibility

Safety has priority in Alphacool's design. Its couplings do not use a click mechanism, but are screwed on with a cap nut. They thus offer a high level of safety and can no longer be accidentally unlocked. For compatibility, see the G1/4 OT connections and these two products: the HF quick release connector kit G1/4 - black (art. 17396) and the HF quick release connector kit TPV - Eisbaer compatible - black (art. 17452).

What the loop needs

Use suitable G1/4 fittings at the two internal threads; external quick-release fasteners are additional parts.

Technical data

In the box

• 1x Alphacool HF quick release coupling set IT/IT (bulkhead fitting), black

The Datasheet (EN) from Alphacool is a PDF.
