Details

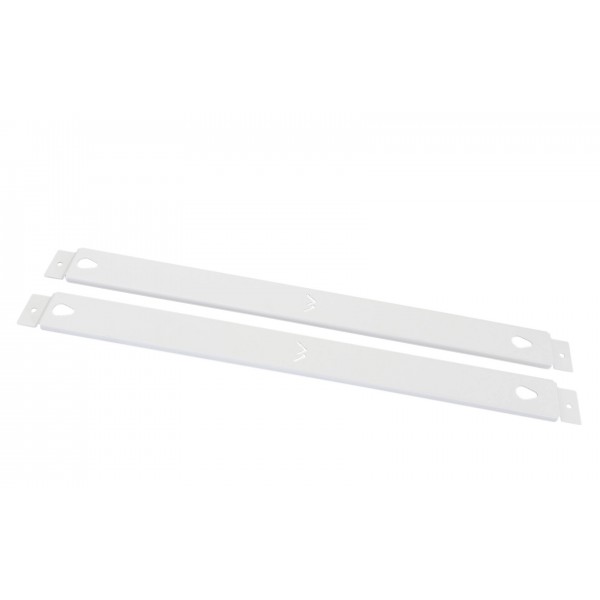

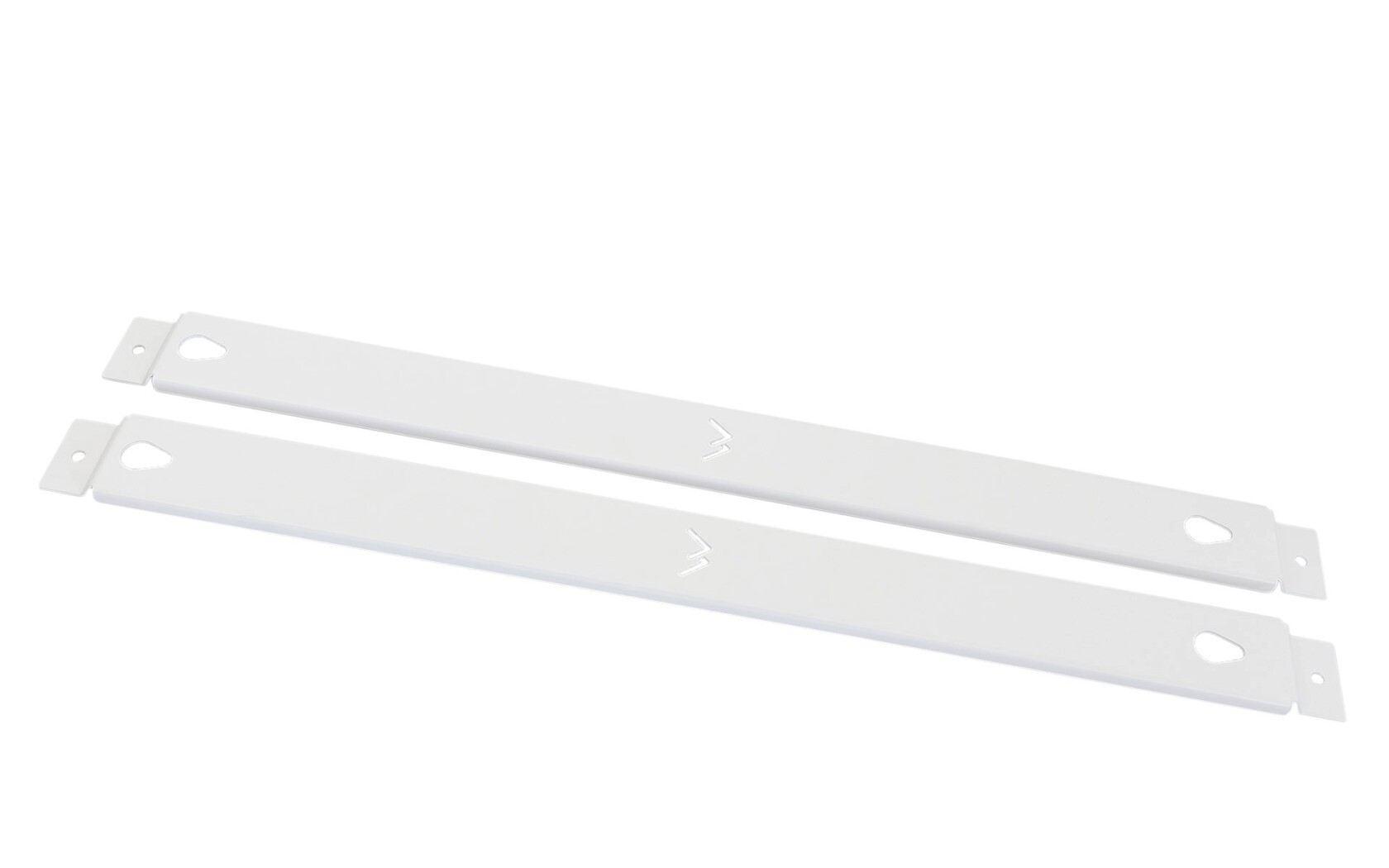

A wall mount that holds a MO-RA IV 600 radiator on any large, flat surface, such as a wall. The Watercool MO-RA IV 600 Wall Mount - White (26631) is sheet steel, powder-coated in white, and measures 605.5 x 46 x 11 mm.
Properties
- For
- All MO-RA IV 600
- Size
- 605.5 x 46 x 11 mm
- Material
- Sheet steel, powder-coated white
- Weight
- 0.91 kg
Maximum flexibility for the radiator
The design allows for easy installation and removal of your MO-RA IV radiator, ensuring maximum flexibility: it comes down again whenever you need it.
Quick conversion and easy adjustments
With the wall mount in place, quick conversions and various adjustments to the MO-RA IV can be carried out quickly and easily.
On the radiator side, the mounting parts are fitted as Watercool's instructions show. Make sure the washers are positioned properly: they anchor the radiator in the wall bracket.
Options
For the smaller radiators there is the MO-RA IV 200/400 Wall Mount - White (26431). More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Sheet steel powder-coated in black or white |
| Dimensions (L x W x H) | 605.5 x 46 x 11 mm |
| Weight | 0.91 kg |
| Compatibility | All MO-RA IV 600 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the bracket and its mounting parts.
- 1x MO-RA IV Wall Mount
- 1x mounting material
Watercool's assembly instructions cover the MO-RA IV series, with a page on the wall mount and the hole spacing of each size.
