Details

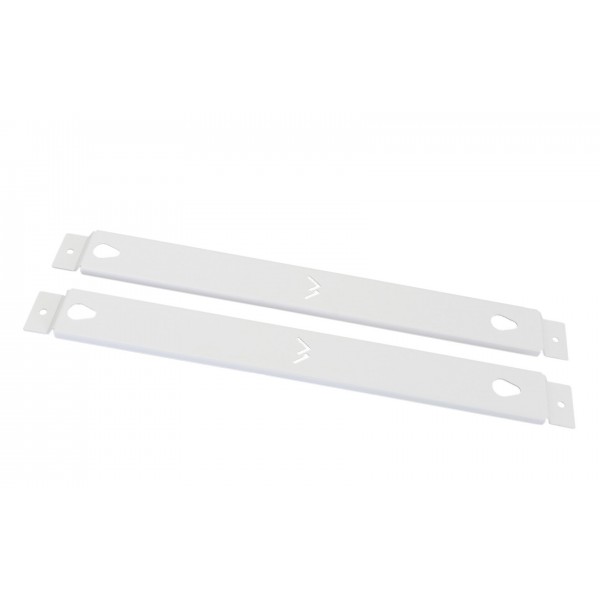

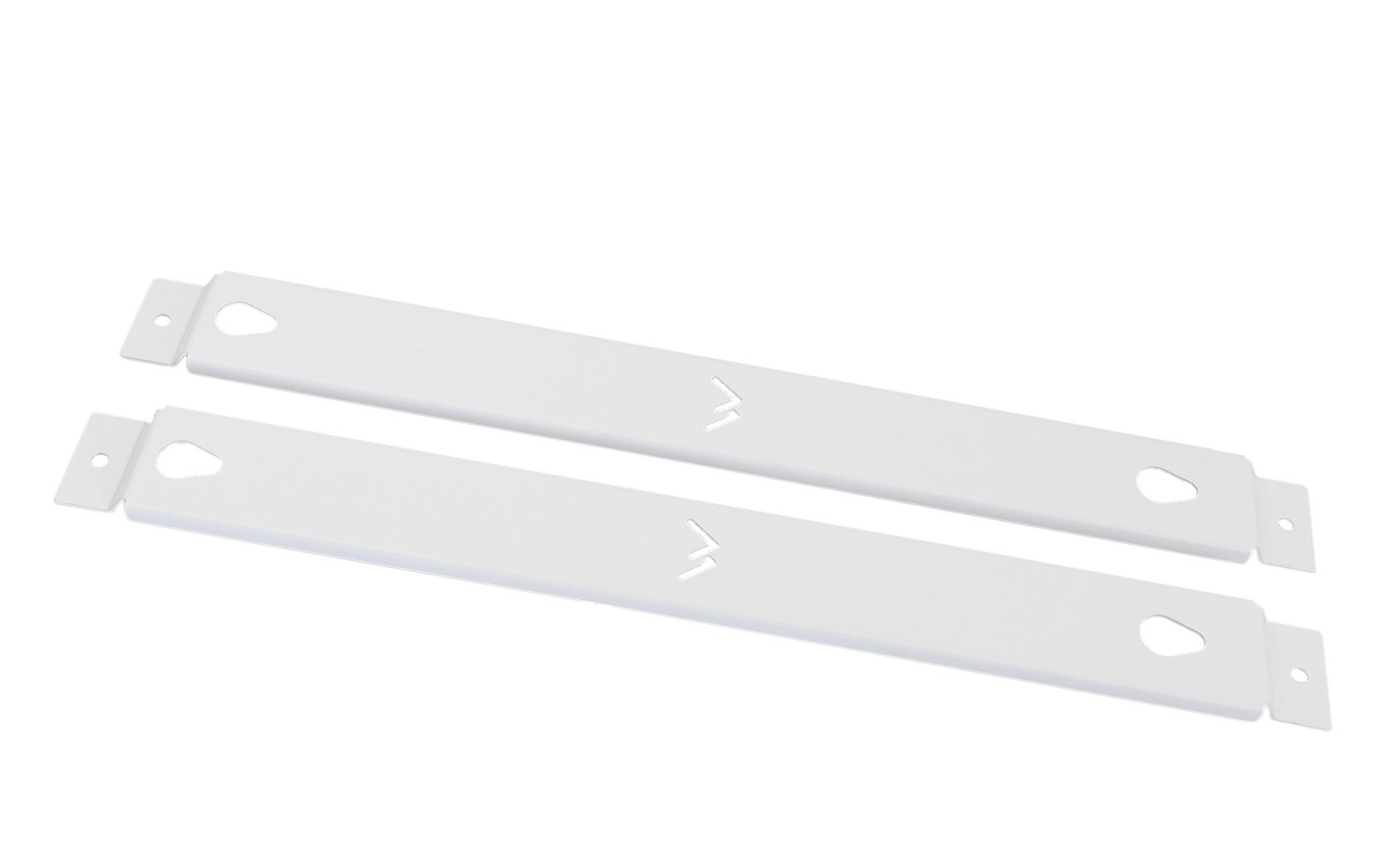

A wall bracket for the MO-RA IV 200 and MO-RA IV 400 radiators, made of white powder-coated sheet steel. The Watercool MO-RA IV 200/400 Wall Mount - White (26431) holds the radiator on any large, flat surface, such as a wall, and comes with its mounting material.
Properties
- For
- All MO-RA IV 200 or 400
- Size
- 465.5 x 46 x 11 mm
- Material
- Powder-coated sheet steel, white
- Weight
- 0.69 kg
Maximum flexibility on the wall
Easily put your radiator up where there is room for it. The design of the bracket allows for easy installation and removal, so it can be attached and detached again when needed. Watercool sees this as ensuring maximum flexibility for the MO-RA IV.
Quick conversion and easy adjustments
Because the radiator lifts off the bracket, quick conversions and various adjustments to the MO-RA IV can be carried out quickly and easily. You do not have to take the whole setup off the wall to change fans or other parts.
Mounting
The mounting parts are fitted on the radiator side first, as Watercool's instructions show, with a Torx TX20. Make sure the washers sit properly: they are what anchors the radiator in the wall bracket.
Options
The same bracket also comes in black. More parts for the radiator are in our MO-RA IV Accessories category.
Technical data
| Material | Sheet steel, powder-coated in black or white |
| Dimensions (L x W x H) | 465.5 x 46 x 11 mm |
| Weight | 0.69 kg |
| Compatibility | All MO-RA IV 200 or 400 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the bracket and the parts to fix it.
- 1x MO-RA IV Wall Mount
- 1x mounting material
Watercool's assembly instructions cover the MO-RA IV series, with a page on the wall mount and the dimensions of each size.
