Details

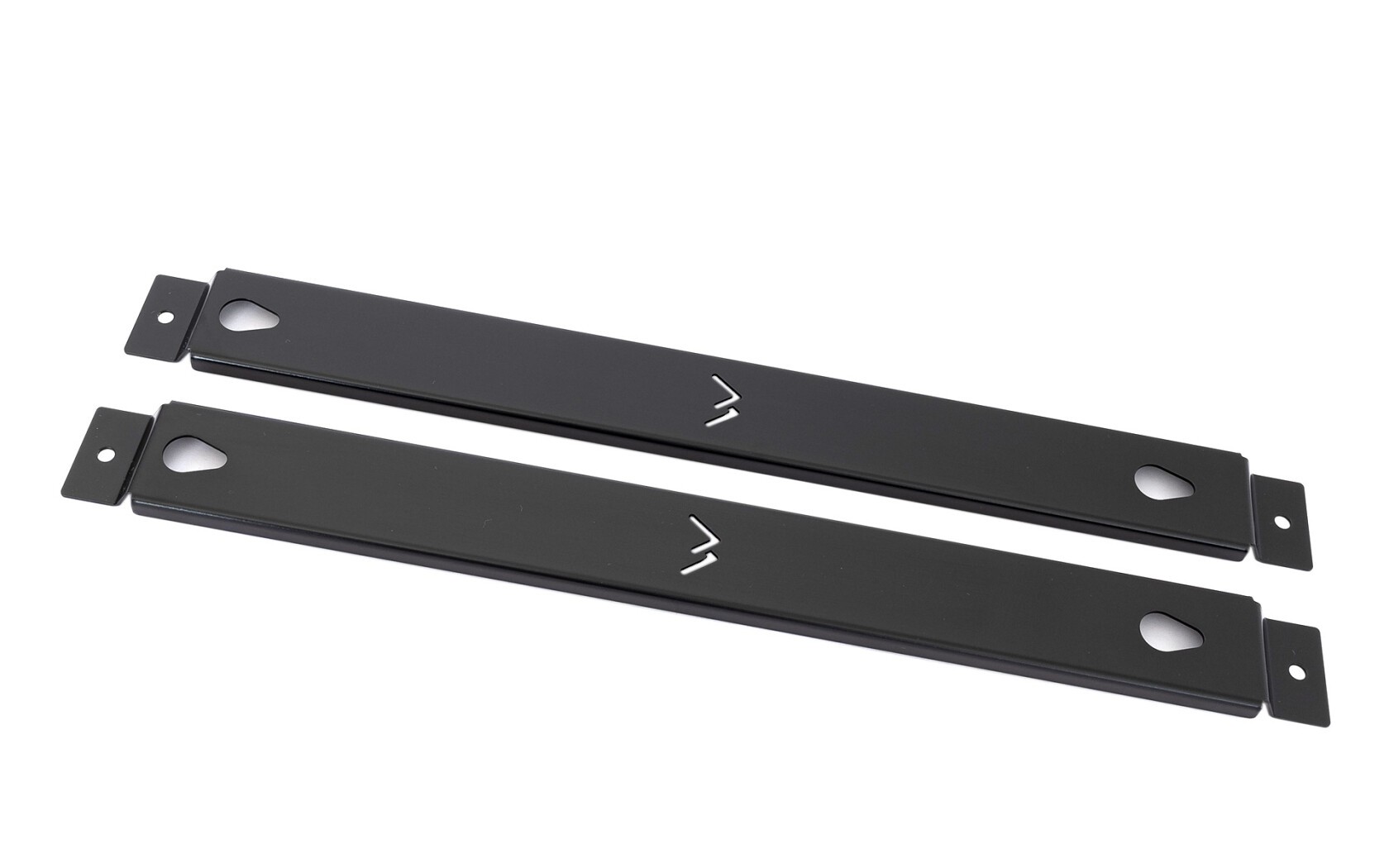

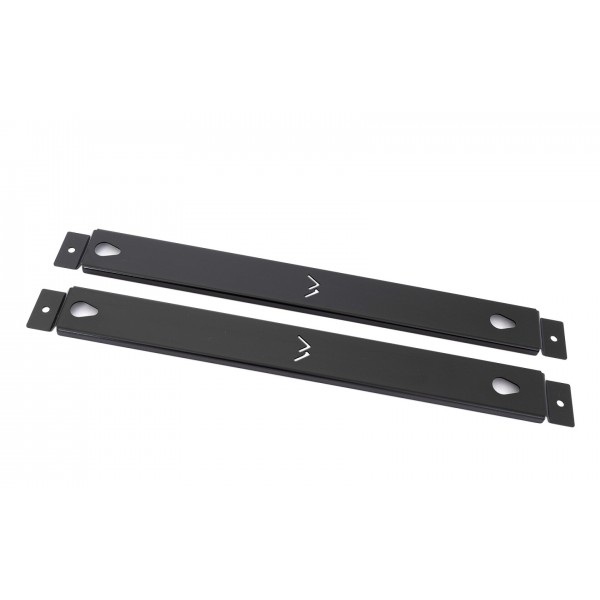

A wall mount for the MO-RA IV 200 and MO-RA IV 400 radiators, in black powder-coated sheet steel, that holds the radiator on any large, flat surface, such as a wall. The Watercool MO-RA IV 200/400 Wall Mount - Black (26430) comes with its mounting material.
Properties
- For
- All MO-RA IV 200 or 400
- Size
- 465.5 x 46 x 11 mm (L x W x H)
- Material
- Powder-coated sheet steel, black
- Weight
- 0.69 kg
Maximum flexibility on the wall
The design allows easy installation and removal of your MO-RA IV radiator, ensuring maximum flexibility in where it sits.
Quick conversion and easy adjustments
With the radiator on the wall mount, quick conversions and various adjustments to the MO-RA IV can be carried out quickly and easily.
Installation
The mounting parts are fitted on the radiator side as Watercool's manual shows. Check that the washers are positioned properly, because they anchor the radiator in the wall bracket. The manual's wall mount page names a 3 mm Allen key as the tool, with M4x35 screws and M4 washers, four of each.
Options
Watercool also makes the mount in white sheet steel: the MO-RA IV 200/400 Wall Mount - White. It fits the MO-RA IV 200 - White and the MO-RA IV 400 - White, and further parts are in our MO-RA IV Accessories category.
Technical data
| Material | Sheet steel, powder-coated in black or white |
| Dimensions (L x W x H) | 465.5 x 46 x 11 mm |
| Weight | 0.69 kg |
| Compatibility | All MO-RA IV 200 or 400 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the mount and its hardware.
- 1x MO-RA IV Wall Mount
- 1x mounting material
Watercool's assembly instructions cover the whole MO-RA IV series, with the wall mount, the hole spacing and the dimensions of each size.
