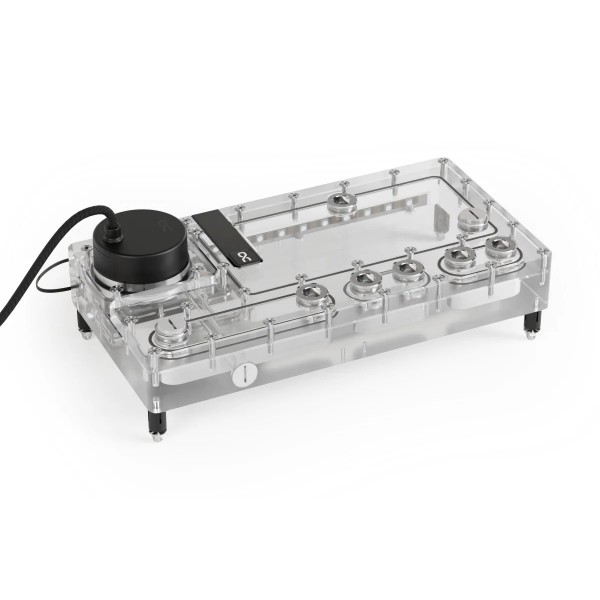

Alphacool Core Distro Plate 280 VPP/D5 - Right with VPP D5 Apex Pump (14574)

The Alphacool Core Distro Plate 280 VPP/D5 - Right with VPP D5 Apex Pump is a 280 mm distro plate with a 360ml reservoir and Alphacool's VPP Apex pump in the box. It is made of acrylic, has eight G1/4 ports plus a drain port, and takes a D5 or VPP pump. The same plate comes as the Left version with pump and as the Right version without a pump.

Properties

Pump

VPP Apex included, D5/VPP compatible

Capacity

360ml

Ports

8x G1/4, 1x drain port

Size (L x W x H)

280.00 x 145.00 x 42.00 mm

Size with pump + push mounting

280.00 x 145.00 x 88.80 mm

Lighting

12 digital aRGB LEDs, 5V

Core Design

Alphacool calls its distro plate with integrated pump an absolute must-have for all custom water cooling systems. With its core design, the maker says, it is not only an absolute eye-catcher but also a functional masterpiece. What it does is simplify the construction and planning of complex water loops, and it offers uncomplicated installation.

The plate is made of what Alphacool calls high-quality acrylic and is fitted with chrome-plated G1/4 brass connections. These have been recessed and deliberately not screwed in, to minimize the risk of cracks and leaks while increasing stability. Each connector is made of two parts that have an O-ring and counter each other when mounted in the acrylic. According to Alphacool this not only ensures absolute leak proofing of each connector, but also allows for the clean and functional look of Alphacool's Core Design series.

Tube routing and lighting

The arrangement of the connections is designed not only to optimize tube routing but also to provide what Alphacool considers an attractive appearance. This is complemented by its integrated aRGB lighting, which provides impressive visual effects in Alphacool's words. The lighting can be controlled either via a digital aRGB header on the mainboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (article no.: 15360).

Push mounting

The Core Push Mounting Kit is included in the scope of delivery, which Alphacool says significantly simplifies the installation of the distro plate. The metal pins are attached to a radiator or the panel of the PC case and the matching female sleeves to the plate, so that you only have to push them onto the pins. This system ensures a secure fit and enables easy disassembly for maintenance or extensions. On a radiator, the manual says to use the screws with the appropriate thread for your radiator. A detailed description can be found in the enclosed instructions.

What the loop needs

The pump, its O-ring, the four M4x22 pump screws and an Allen key are in the box. For pump installation the manual's steps are: insert the O-ring, screw on the pump and tighten the screws with 1.5Nm. The pump cable and the ARGB adapter for the lighting are connected as the manual shows.

The manual marks the ports: OUT leads from the distro plate to the component, IN comes back from the component to the plate. It asks you to choose the port closest to your GPU configuration. Every port in use takes one G1/4 fitting. Three G1/4 plugs and the plug tool are in the box for ports you leave closed, and more are under Plug & Stop Fittings.

Technical data

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x 280 Distro Plate
• 1x VPP-D5 Pump
• 1x O-Ring
• 1x Allen Key
• 4x M4x22 Pump Screw
• 1x Core Push Mount Set
• 1x Plug tool
• 1x ARGB adapter
• 3x G1/4 Plug

Alphacool's manual and data sheet are both PDFs.
