Details

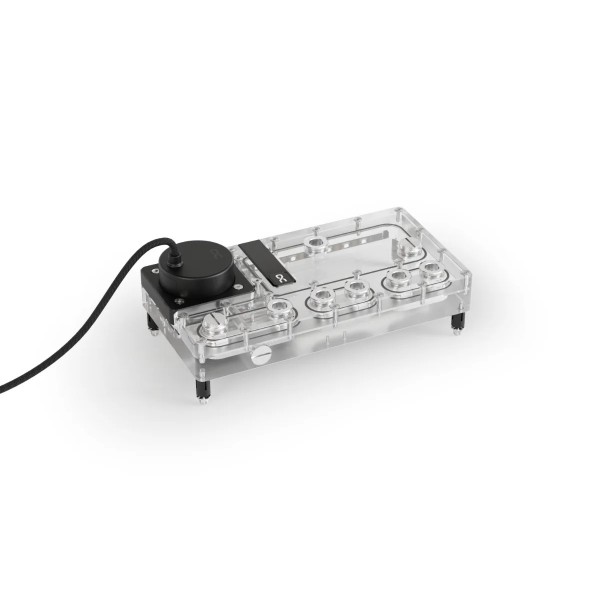

The Alphacool Core Distro Plate V.2 with VPP Apex pump is the ideal solution for custom water cooling systems. The redesigned platform offers significantly greater installation flexibility and simplifies the planning, assembly, and maintenance of even complex water loops.
The core element of the Core Design series is the chrome-plated G1/4" brass fittings. On the Core Distro Plate V.2, these are directly embedded in the acrylic, effectively eliminating the risk of leaks caused by cracking. The two-piece fittings, equipped with O-rings, interlock within the acrylic, ensuring maximum sealing and a clean, high-quality appearance.
Thanks to its reduced depth and optimized G1/4" fitting arrangement, the Distro Plate allows for particularly short and clean tubing runs. A side drain port also enables easy and controlled draining of the loop. This makes the Core Distro Plate V.2 ideal for custom water loops that simultaneously cool the CPU and one or more graphics cards.
Made of high-quality acrylic glass, the Distro Plate offers a clear view of the coolant. The integrated digital aRGB lighting provides a brilliant display of colors and can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (part no. 15360).
Thanks to a redesigned pump bracket, either VPP/D5 or DDC pumps can be installed. The included Alphacool VPP Apex features a ceramic shaft and an optimized motor design, resulting in exceptionally quiet, low-vibration, and efficient operation. Speed control is achieved via a 4-pin PWM connector, which connects to the motherboard or an external controller. The pump is powered via a SATA connector on the power supply.
The Alphacool Core Push Mounting Kit is included. This significantly simplifies installation, ensures a secure fit of the distribution plate to the case panel or radiator, and allows for easy removal for maintenance or upgrades.
The Core Distro Plate V.2 is available in 240mm or 360mm versions, each with left or right positioning of the pump top.
Compatibility:
- Can be mounted on the radiator or the panel
| Technical Details Distro Plate | |
| Dimensions (L x W x H) | 240.00 x 125.00 x 34.50 mm |
| Dimensions (L x W x H) with pump | 240.00 x 125.00 x 62.20 mm |
| Dimensions (L x W x H) with push mounting | 240.00 x 125.00 x 62.30 mm |
| Dimensions (L x W x H) with pump + push mounting | 240.00 x 125.00 x 88.80 mm |
| Material | Acrylic |
| Volume | 105ml |
| Pump compatibility | VPP/D5 |
| Connections | 8x G1/4" internal thread / 1x drain port |
| Maximum operating temperature | 60 °C |
| Pressure tested | 0.8 bar |
| Number of digital aRGB LEDs | 11 |
| Voltage digital aRGB LEDs | 5V |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Weight | 1260g |
| Weight with pump | 1536g |
| Color | Transparent |
| Pump specifications | |
| Dimensions (Distro Plate with pump) (L x W x H) | 240.00 x 125.00 x 62.20 mm |
| Pump material | Plastic |
| Pump cover material | Aluminum |
| Axle Material | Ceramic |
| Connections | 4-Pin PWM | SATA |
| Control range | 2500 - 4500 RPM |
| Cable lengths | 4-pin PWM - 48cm | SATA - 48cm |
| Operating voltage | 8-13V DC / 14W IP32 |
| Starting voltage | 12V DC |
| Maximum delivery head | 4.25 m |
| Maximum flow rate | 340 L/h |
| Maximum operating temperature | 60°C |
| Weight | 276g |
| Color | Black |
Additional Information
| Manufacturer | Alphacool |
|---|---|
| Overall Dimensions | 240.00 x 125.00 x 88.80 mm |
| Color | Clear |
| Reservoir Size | 105 ml |
| Reservoir Type | Other |
| Tube Diameter | N/A |
| Number of Ports | 9x G1/4 |
| Pump Included | Yes |
| Material | Acrylic |
| Pump Compatibility | D5/DDC |
| Included | 1x 240 Distroplate 1x VPP Apex Pump 1x O-Ring 1x Allen Key 4x M4x22 Pump Screw 1x Core Push Mount Set 1x Plug Tool 1x ARGB Adaptor 3x G1/4 Plug |
