Details

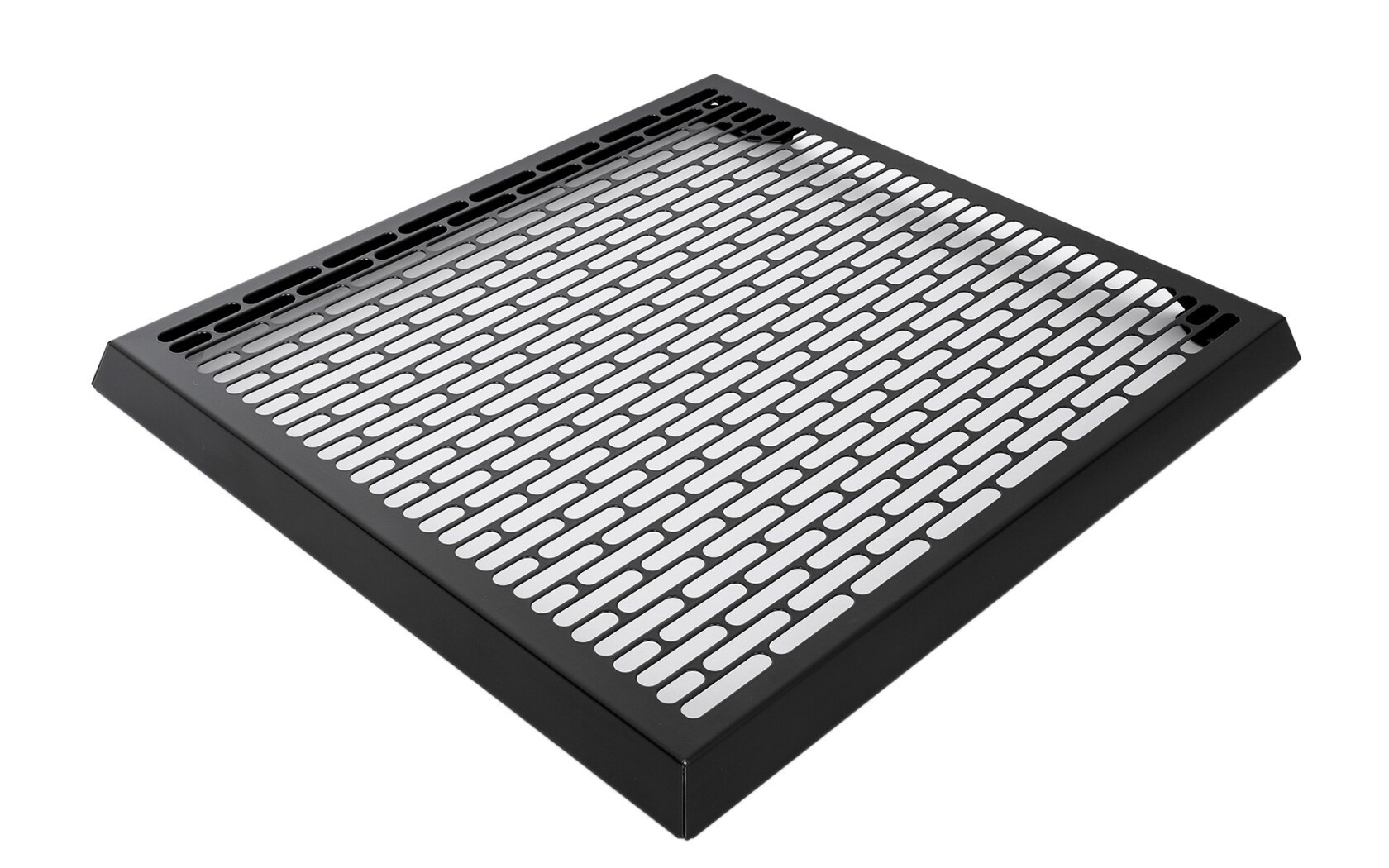

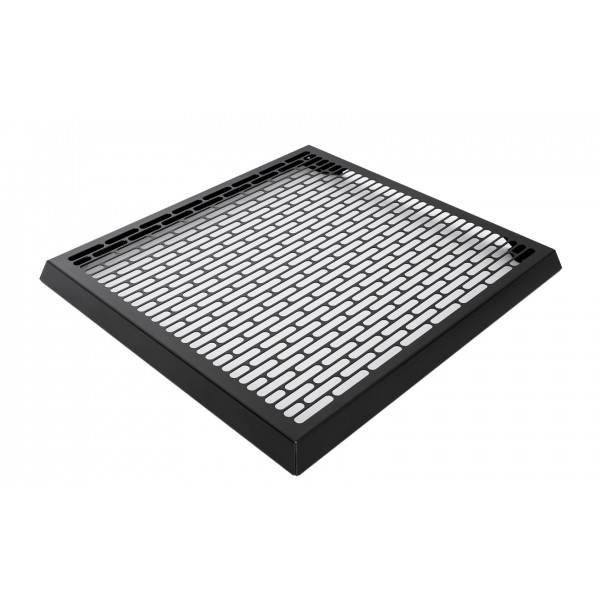

A fan grill for the front of the MO-RA IV 600 radiator, in black powder-coated sheet steel. The Watercool MO-RA IV 600 Fan Grill - Black (26610) snaps onto the Quick-Mount system without tools and can be rotated 180°.
Properties
- For
- MO-RA IV 600
- Size
- 659 x 679 x 32 mm
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 2.34 kg
Made for air flow
Watercool optimized the grill for maximum air flow so that it fits stylishly into the design of the new MO-RA IV. It is made from durable sheet steel, and its large air passage openings ensure improved air flow and less intake noise. The robust powder coating completes the appearance.
Watercool calls it excellent for the highest demands on assembly comfort, cooling performance and acoustic optimization.
Tool-free Quick-Mount
The new design is equipped with a solid bolt holder for the Quick-Mount system, which enables tool-free assembly. Remove the stock bolts of the radiator first. Insert the EasyMount pins into the opening of the washer and screw both together to the radiator. The grill then simply snaps onto the pins, and an audible click confirms that it is locked. To take it off again, pull it off.
The fan grill can be rotated 180° and visually adjusted: its cutout can face the front or the back.
Options
The same grill also comes in white (26611). For fans on the back of the radiator there is the MO-RA IV 600 Fan Frame for 200mm Fans (26621). More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 659 x 679 x 32 mm |
| Weight | Approx. 2.34 kg |
| Surface | Black |
| Compatible | MO-RA IV 600 |
In the box
The scope of delivery is the grill alone.
- 1x MO-RA4 fan grill
Watercool's assembly instructions cover the MO-RA IV series, with the fan grill mounting steps and the dimensions of each size.
