Details

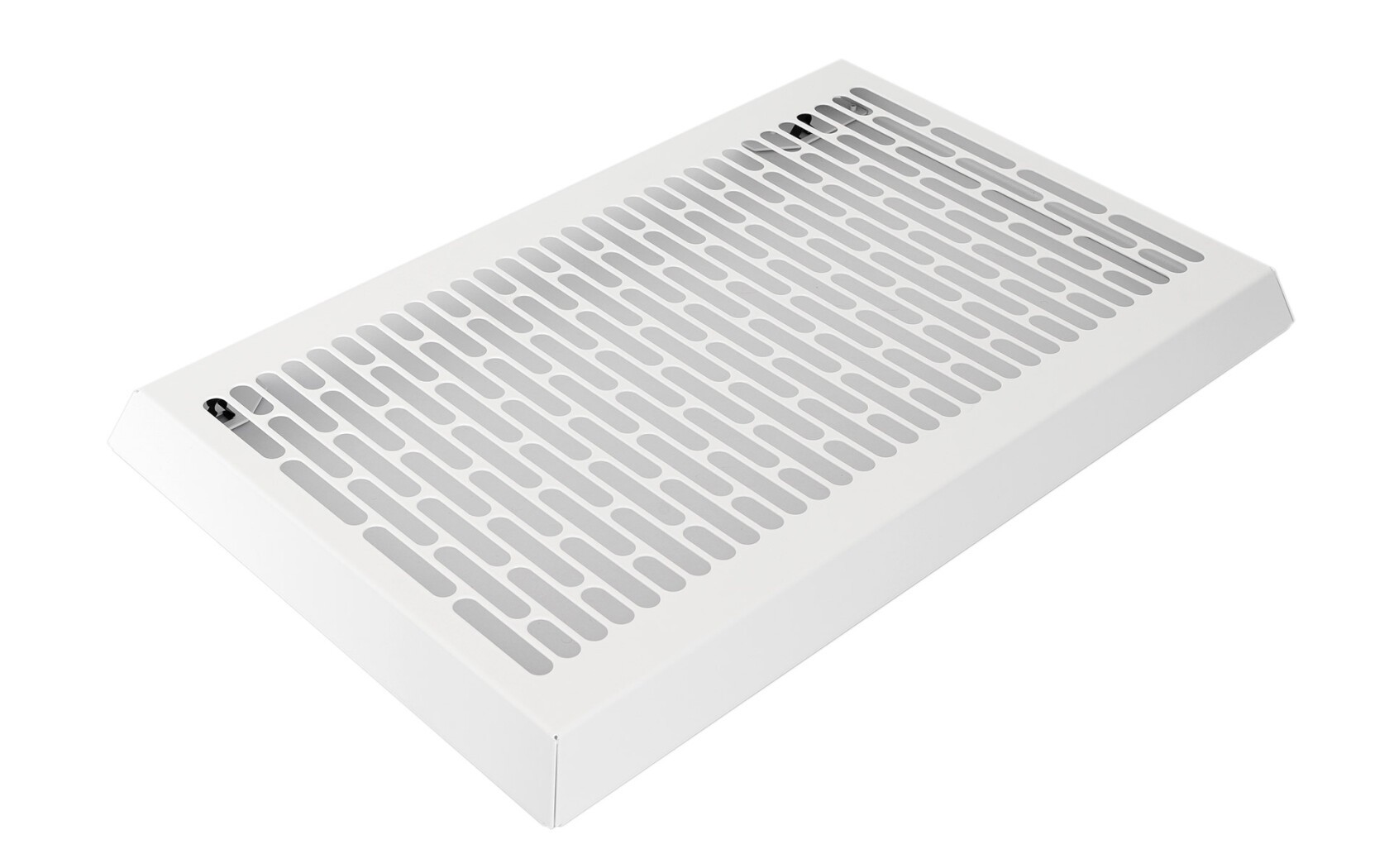

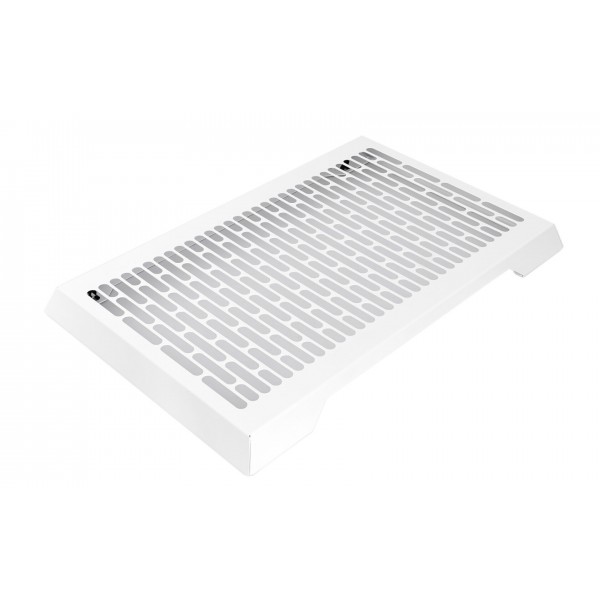

A fan grill for the MO-RA IV 200 radiator, in white powder-coated sheet steel, that snaps onto the MO-RA IV Quick-Mount system. The Watercool MO-RA IV 200 Fan Grill -White (26211) is optimized for maximum air flow and fits stylishly into the design of the new MO-RA IV.
Properties
- For
- MO-RA IV 200
- Size
- 449 x 279 x 32 mm (L x W x H)
- Material
- Powder-coated sheet steel, white
- Weight
- Approx. 900 g
Large openings, less intake noise
The grill is made from durable sheet steel. Its large air passage openings ensure an improved air flow and less intake noise, and the robust powder coating completes the appearance. Watercool calls it excellent for the highest demands on assembly comfort, cooling performance and acoustic optimization.
Quick-Mount, rotated as you like
The new design is equipped with a solid bolt holder for the Quick-Mount system, and that enables tool-free assembly of the grill itself. To fit it, remove the stock screws of the radiator housing first. The EasyMount pins then go into the opening of the washer and are screwed to the radiator together with it.
After that the grill simply snaps onto the pins, and an audible click confirms the lock. To take it off, pull it away. The fan grille can be rotated 180°, so its cutout faces the front or the back and the look can be visually adjusted to the build.
Options
The grill belongs on the MO-RA IV 200 - White radiator. A second set of fans at the back goes on the MO-RA IV 200 Fan Frame for 200mm Fans in white, and further parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 449 x 279 x 32 mm |
| Weight | Approx. 900 g |
| Surface | White |
| Compatible | MO-RA IV 200 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- The manual's fan grill pages show a Torx TX20 and the MO-RA tool as the tools for the job.
In the box
The scope of delivery is the grill alone.
- 1x MO-RA4 fan grill
Watercool's assembly instructions cover the whole MO-RA IV series, with the three fan grill steps and the dimensions of each size.
