Details

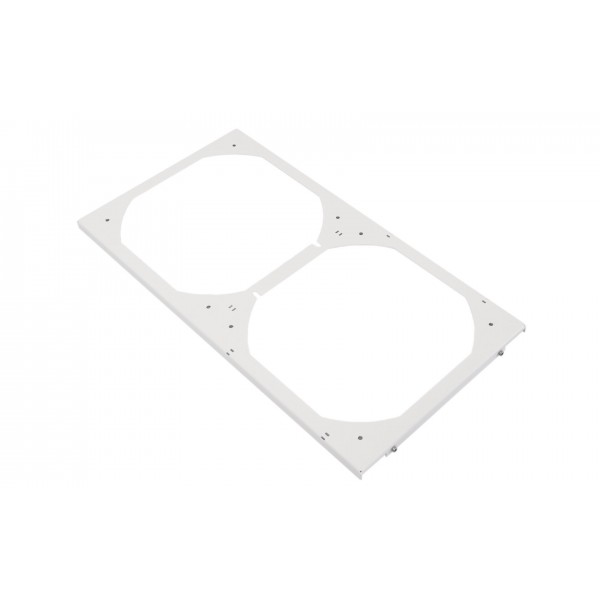

An additional fan frame for the MO-RA IV 200 radiator, so the radiator can have 200mm fans on both sides: the frame takes two 200 x 200 x 30 mm fans at the back. The Watercool MO-RA IV 200 Fan Frame for 200mm Fans - White (26221) is white powder-coated sheet steel, equipped with a built-in fan splitter.
Properties
- For
- MO-RA IV 200
- Fans
- 2x 200 x 200 x 30 mm
- Size
- 421 x 216 x 10 mm (L x W x H)
- Material
- Powder-coated sheet steel, white
- Weight
- Approx. 0.34 kg
Fans on the back as well
The frames are newly designed. Like the fan grill, they use the quick-mount system Watercool specially developed for the MO-RA IV, and the frame is therefore very easy to install. It goes on and comes off without tools when the radiator needs maintenance, and it does not need to be locked in place. Watercool's manual shows an optional permanent lock with two M2.5x6 screws and a 2 mm Allen key.
Cabling already taken into account
Watercool integrated a fan splitter into the frame for the fans on the rear side. Both 200mm fans connect to it. This saves you the hassle of wiring each one back to the system on its own.
Options
The frame is made for the MO-RA IV 200 - White radiator, and a black version of the frame is also in stock. The MO-RA IV 200 Fan Grill in white covers the fans, and further parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 421 x 216 x 10 mm |
| Weight | Approx. 0.34 kg |
| Surface | White |
| Fan compatibility | 2x 200 x 200 x 30 mm |
| Compatible | MO-RA IV 200 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- For a Noctua NF-A20, Watercool calls for short M4x10 mm screws, 4 per fan.
In the box
The scope of delivery is the frame alone.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions cover the whole MO-RA IV series, with the fan frame, the fan mounting and the dimensions of each size.
