Details

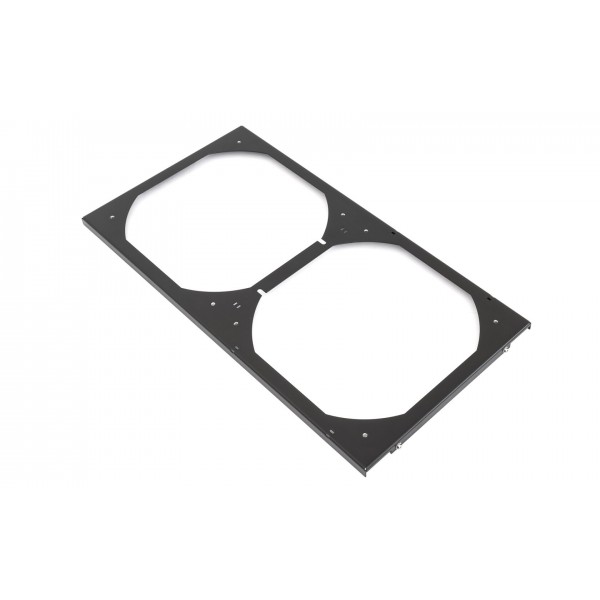

An additional fan frame for the MO-RA IV 200 radiator that holds two 200 mm fans (200 x 200 x 30 mm) on the back. With it the radiator can have fans on both sides. The Watercool MO-RA IV 200 Fan Frame for 200mm Fans - Black (26220) is black powder-coated sheet steel and comes equipped with an integrated fan splitter.
Properties
- For
- MO-RA IV 200
- Fans
- 2x 200 x 200 x 30 mm
- Size
- 421 x 216 x 10 mm
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 0.34 kg
Quick-mount system
Watercool newly designed these frames, and like the fan grill they use its specially developed quick-mount system. The fan frame is therefore very easy to install, and it can be mounted and unmounted without tools for maintenance. Locking it permanently is optional, with two M2.5x6 screws and a 2 mm Allen key.
Cabling taken into account
Watercool has also taken the wiring into account, so the fans at the back plug into that splitter. This saves you the hassle of complex cabling with 200mm fans.
Options
The same frame also comes in white. More parts for the radiator are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 421 x 216 x 10 mm |
| Weight | Approx. 0.34 kg |
| Surface | Black |
| Fan compatibility | 2x 200 x 200 x 30 mm |
| Compatible | MO-RA IV 200 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- A Noctua NF-A20 mounts with short M4x10 mm screws, 4 per fan.
In the box
The scope of delivery is the frame alone.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions cover the MO-RA IV series, with the fan frame and fan mounting steps and the dimensions of each size.
