Details

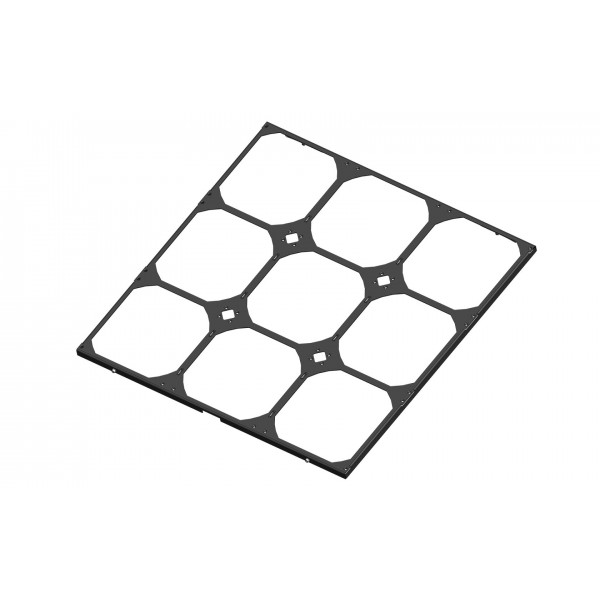

A fan frame for the MO-RA IV 400 radiator that takes nine 140 mm fans. The Watercool MO-RA IV 400 Fan Frame for 140mm Fans - Black (26425) is black powder-coated sheet steel and goes on with Watercool's quick-mount system.
Properties
- For
- MO-RA IV 400
- Fans
- 9x 140 x 140 mm
- Size
- 421 x 416 x 10 mm
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 0.55 kg
For anyone who relies on 140 mm fans
Watercool calls this frame the ideal option for builders who already run 140mm fans or prefer them. If you have a set of them, this frame puts them on the MO-RA IV.
Quick-mount system
The frames are newly designed, and like the fan grill they use Watercool's specially developed quick-mount system. That system therefore makes the frame very easy to install. It can be mounted and unmounted without tools for maintenance, and locking it permanently is optional, with M4x10 screws and a 3 mm Allen key.
Cabling
Watercool has also taken the wiring into account and provided the necessary options for routing the fan cables on the frame.
Options
Pick nine 140 mm fans to fill it. For 200 mm fans on the same radiator there is the MO-RA IV 400 Fan Frame for 200mm Fans (white). More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 421 x 416 x 10 mm |
| Weight | Approx. 0.55 kg |
| Surface | Black |
| Fan compatibility | 9x 140 x 140 mm |
| Compatible | MO-RA IV 400 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- Fans with a standard 25 mm frame height mount with M3x30 screws, 4 per fan.
In the box
The scope of delivery is the frame alone.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions cover the MO-RA IV series, with the fan frame and fan mounting steps and the dimensions of each size.
