Details

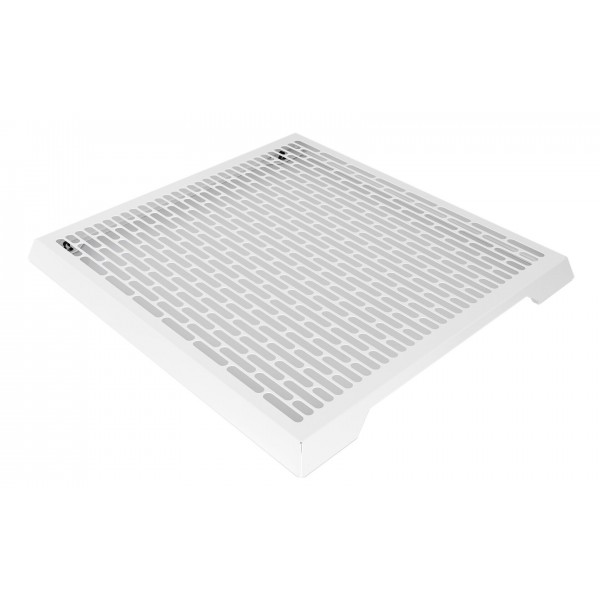

A white fan grill for the MO-RA IV 400 radiator, made from powder-coated sheet steel, that clips onto the radiator's Quick-Mount system without tools. The Watercool MO-RA IV 400 Fan Grill - White (26411) is a fan grille optimized for maximum air flow and fits stylishly into the design of the new MO-RA IV.
Properties
- For
- MO-RA IV 400
- Size
- 449 x 479 x 32 mm (L x W x H)
- Material
- Powder-coated sheet steel, white
- Weight
- Approx. 1.26 kg
Durable steel with large openings
The grill is made from durable sheet steel. Large air passage openings in it ensure an improved air flow and less intake noise from the fans behind it. A robust powder coating completes the appearance. Watercool rates it excellent for the highest demands on assembly comfort, cooling performance and acoustic optimization.
Tool-free on the Quick-Mount system
The new design is equipped with a solid bolt holder for the Quick-Mount system, which enables tool-free assembly of the grill. To prepare the radiator, take out its stock screws first. Each EasyMount pin then goes into the opening of a washer, and the two are screwed to the radiator together.
The grill now simply snaps onto the pins, and an audible click confirms that it is locked. Pull it off to remove it. It can be rotated 180°, so its cutout sits at the front or the back and the look is visually adjusted to your build.
Options
The grill belongs on the MO-RA IV 400 - White radiator. Fans on the other side go on a fan frame, such as the MO-RA IV 400 Fan Frame for 140mm Fans or the white MO-RA IV 400 Fan Frame for 200mm Fans. More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 449 x 479 x 32 mm |
| Weight | Approx. 1.26 kg |
| Surface | White |
| Compatible | MO-RA IV 400 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the grill alone.
- 1x MO-RA4 fan grill
Watercool's assembly instructions cover the MO-RA IV series, with the three fan grill steps and the dimensions of each size.
