Details

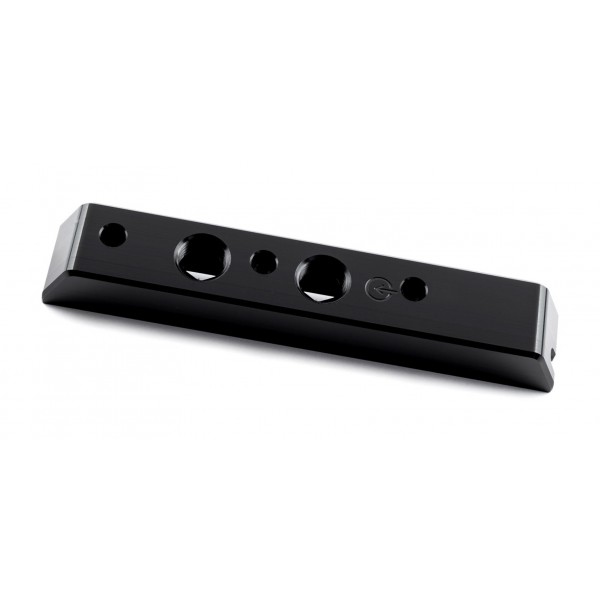

A side connection terminal for the HEATKILLER V water blocks of the ASUS RTX 5090 TUF graphics cards, made of acetal with two G1/4 threads. The optional Watercool HEATKILLER V Sideport Terminal for ASUS RTX 5090 TUF replaces the block's standard terminal, so the tubes connect to the circuit from the side.
Properties
- For
- HEATKILLER V PRO for ASUS RTX 5090 TUF
- Ports
- 2x G1/4 (DIN ISO 228-1)
- Material
- Acetal, black
Expanded connection options
This adapter terminal provides extended connection options. It is fitted in place of the original terminal on the current HEATKILLER V coolers for this card. That allows the block to be connected to the circuit from the side.
What you need to mount it
It fits the block made for this card, such as the HEATKILLER V PRO for RTX 5090 ASUS TUF in nickel or the nickel-black version. Each port in use takes one G1/4 fitting.
Compatibility
Watercool names one compatible cooler for this terminal:
- HEATKILLER® V PRO for ASUS RTX 5090 TUF
Technical data
| Material | Acetal |
| Connection | 2 x G1/4 inch (DIN ISO 228-1) |
In the box
- 1x HEATKILLER® VGA Terminal
- 1x O-rings
- Mounting material
