Details

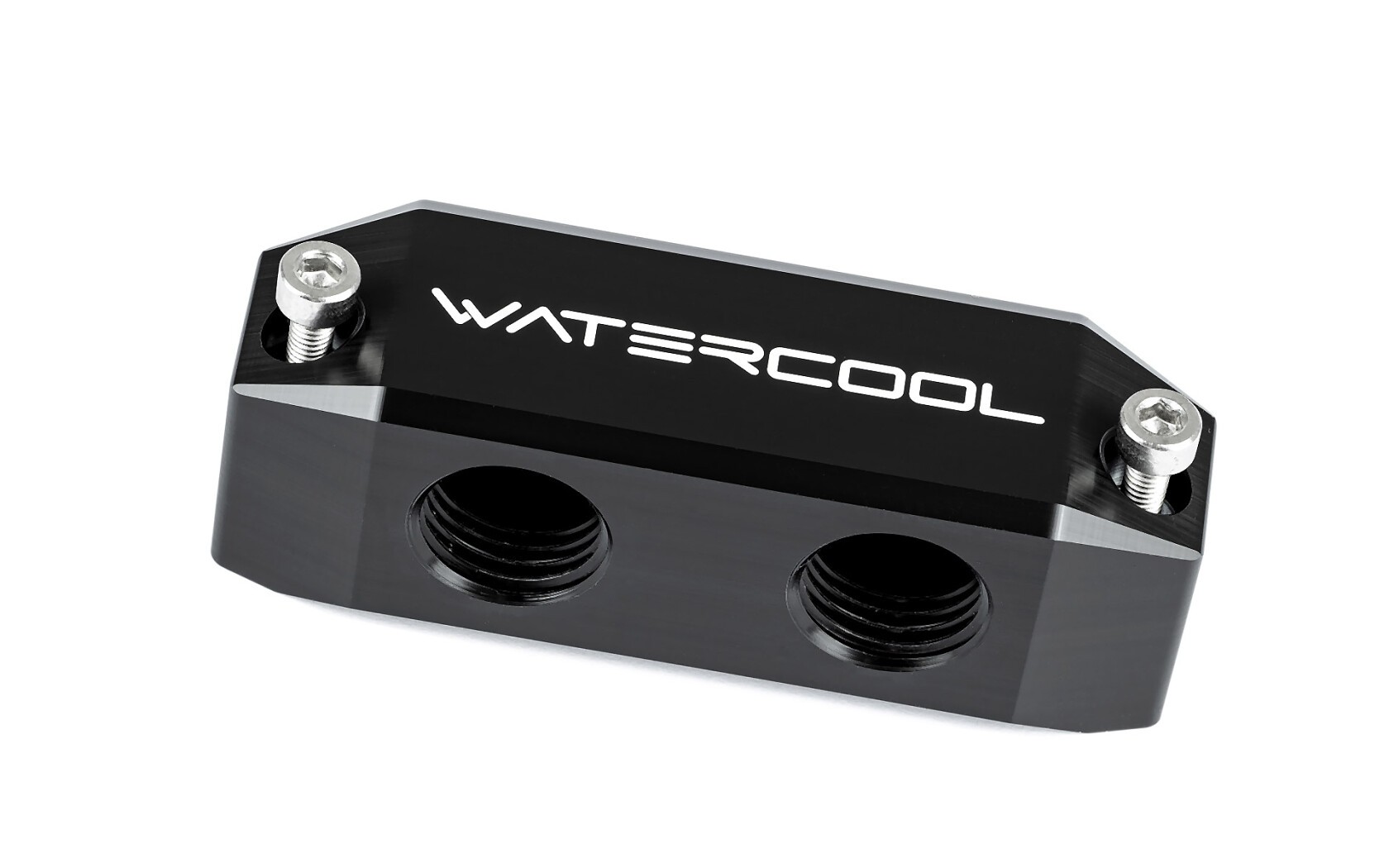

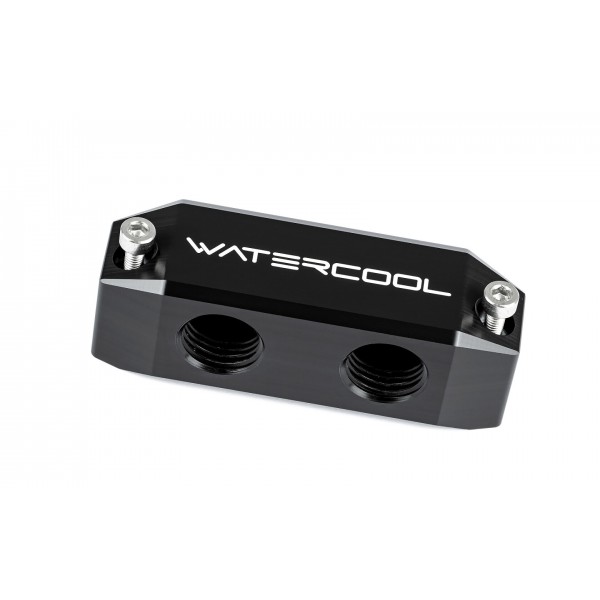

A replacement connection terminal for the graphics card coolers of the HEATKILLER® V VGA series, made of POM (acetal) with four G1/4 threads. The Watercool HEATKILLER® V VGA Terminal (79332) takes the place of the standard installed terminal, and two screw plugs come with it.
Properties
- For
- HEATKILLER V VGA series
- Ports
- 4x G1/4 (DIN ISO 228-1), 25 mm apart
- Material
- POM (acetal)
- Size
- 59.5 x 20 x 20 mm
- Weight
- 50 g
A spare for the stock terminal
This part is a replacement for the stock terminals on water blocks of the HEATKILLER V series, the ones that come installed on its graphics card coolers. The distance between the connecting threads is 25 mm. Two G1/4 screw plugs are included to close threads you leave open.
What you need to mount it
Each port in use takes one G1/4 fitting for your tube. If the card stands upright in a vertical mount, the HEATKILLER V Vertical VGA Terminal is the matching alternative. Spare seals are the replacement O-rings for the V VGA series terminal, two per pack.
Compatibility
Watercool lists the whole series as compatible:
- HEATKILLER® V VGA series
Technical data
| Material | POM (acetal) |
| Dimensions (LxWxH) | 59.5 x 20 x 20 mm |
| Weight | 50 g |
| Connection | 4x G1/4 inch (DIN ISO 228-1) |
In the box
- 1x HEATKILLER® V VGA terminal
- 2x G1/4" screw plug
- mounting material
