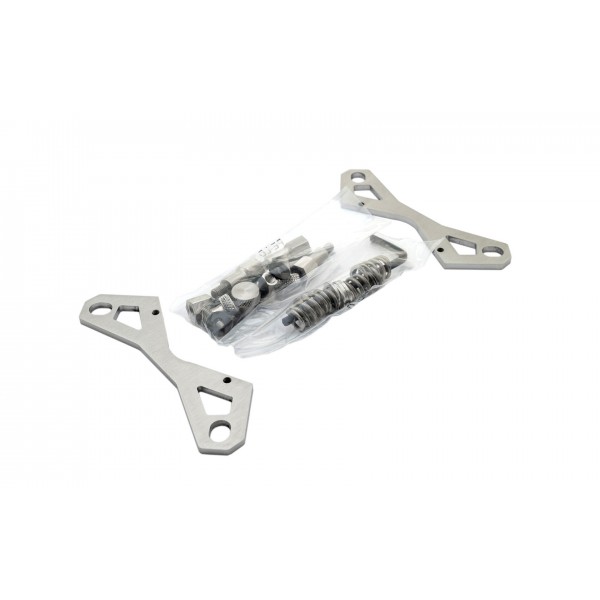

Watercool Conversion Kit HEATKILLER® IV for INTEL processors (14080)

A socket conversion kit that moves any HEATKILLER® IV CPU water block, BASIC or PRO, to the current Intel sockets, LGA1700 and LGA1851 included. The Watercool Conversion Kit HEATKILLER® IV for INTEL processors (14080) holds two holding plates made of stainless steel plus the assembly material.

Properties

For

HEATKILLER IV PRO and HEATKILLER IV BASIC CPU blocks

Sockets

Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851

Material

Stainless steel

One block, a new socket

With this kit, your block can be converted to the Intel bases listed below, and all necessary fasteners are in the scope of delivery. On LGA-1700 you do not need a separate upgrade kit.

Socket compatibility (INTEL)

• INTEL LGA-1150
• INTEL LGA-1151
• INTEL LGA-1155
• INTEL LGA-1156
• INTEL LGA-1200
• INTEL LGA-1700
• INTEL LGA-1851

What an LGA1700 build needs

For optimal performance on LGA-1700, the available backplate with item number 10014 is recommended: the HEATKILLER IV Backplate INTEL 1700.

Notes

• Use a metal washer between spring and bracket, a plastic washer between stud and mainboard, and tighten the nuts evenly and crosswise.

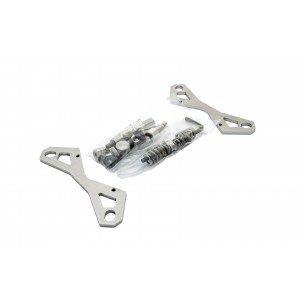

In the box

• 2x Holding plate made of stainless steel
• 1x assembly material
• 1x assembly instructions

Watercool's assembly instructions cover every HEATKILLER IV CPU block and show the Intel installation with and without a backplate.
