Details

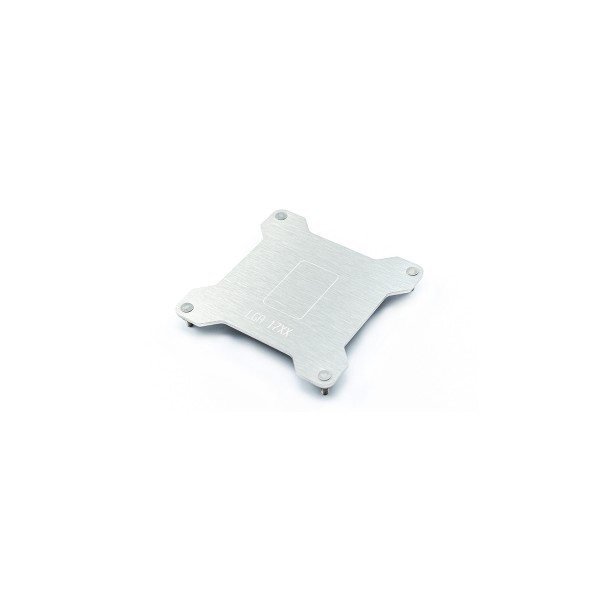

A stainless steel CPU backplate for HEATKILLER® IV water blocks on Intel LGA1700 and LGA1851. The Watercool HEATKILLER® IV Backplate INTEL 1700 comes with its mounting material.
Properties
- For
- HEATKILLER IV CPU series water blocks
- Sockets
- Intel LGA1700 (Alder Lake), LGA1851
- Material
- Stainless steel
Why a backplate on LGA1700
With this massive plate the load on the motherboard is distributed over a larger area, and the mechanical pressure on the board is reduced. As a result, Watercool says, it is even possible to achieve enhanced temperatures. For mounting a HEATKILLER IV on LGA1700, Watercool strongly recommends installing it with a backplate.
What you need to mount it
The plate works with a block of the HEATKILLER IV series, for example the HEATKILLER IV PRO (Intel LGA 1X00) ACRYLIC CLEAN; more are in our Intel CPU blocks category. Mounting material is part of the scope of delivery.
Technical data
| Material | Stainless steel |
| Compatible with | Intel LGA1700/1851 socket |
Notes
- Tighten the studs and knurled nuts evenly and crosswise for optimal surface pressure.
- A metal washer goes between spring and mounting bracket, and an isolating plastic washer between stud and mainboard.
In the box
- HEATKILLER® IV backplate for INTEL LGA1700 Alder-Lake socket
- Mounting material
Watercool's assembly instructions cover every HEATKILLER IV CPU block, with a section on the installation on Intel sockets with a backplate.
