ModMyMods Raspberry Pi Mini Water Cooling Kit (MOD-0171) 1 / 17
  • ModMyMods Raspberry Pi Mini Water Cooling Kit (MOD-0171) - view 1

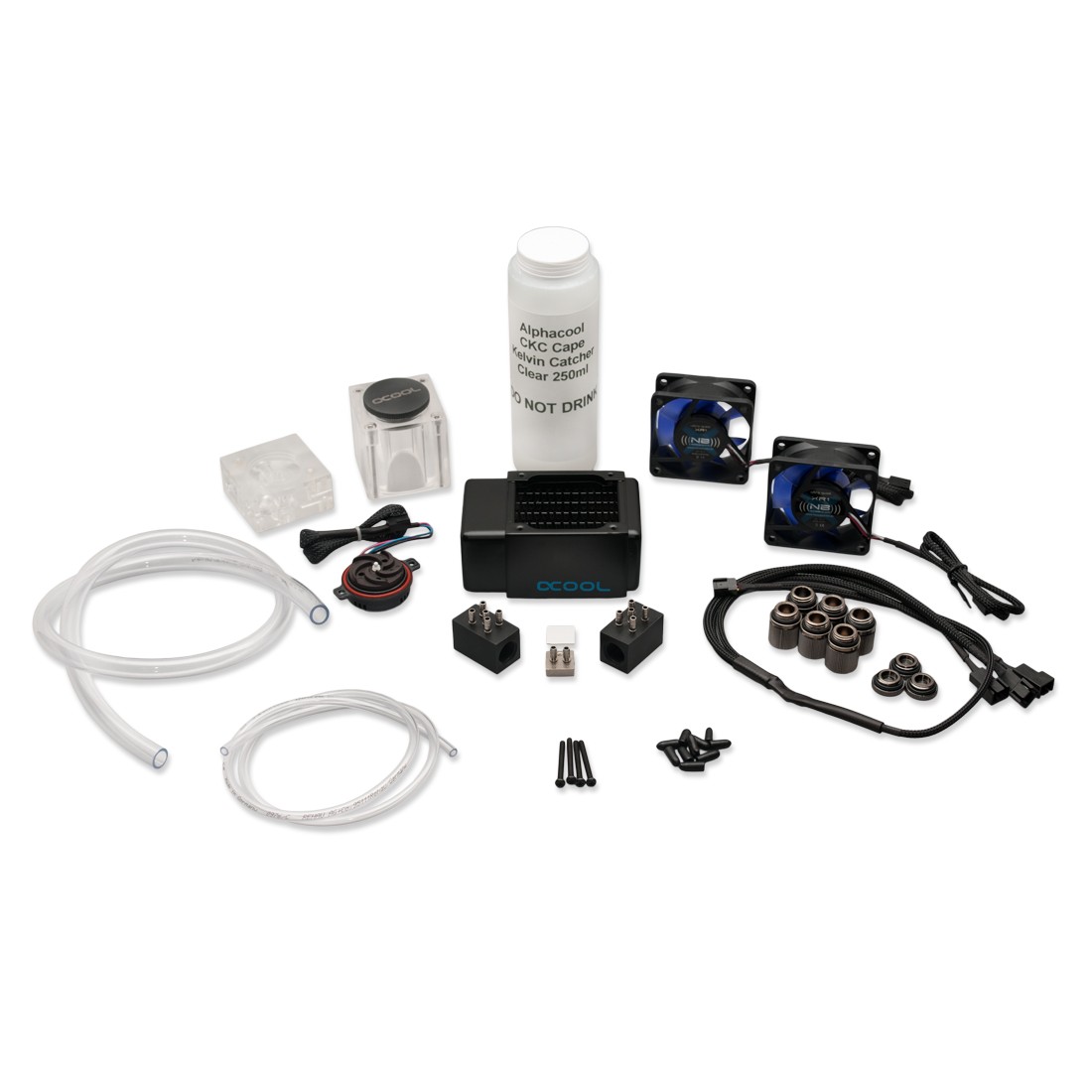

  • Box contents: the kit unpacked
  • Kit part: DC-LT pump top
  • Kit part: G1/4 plug

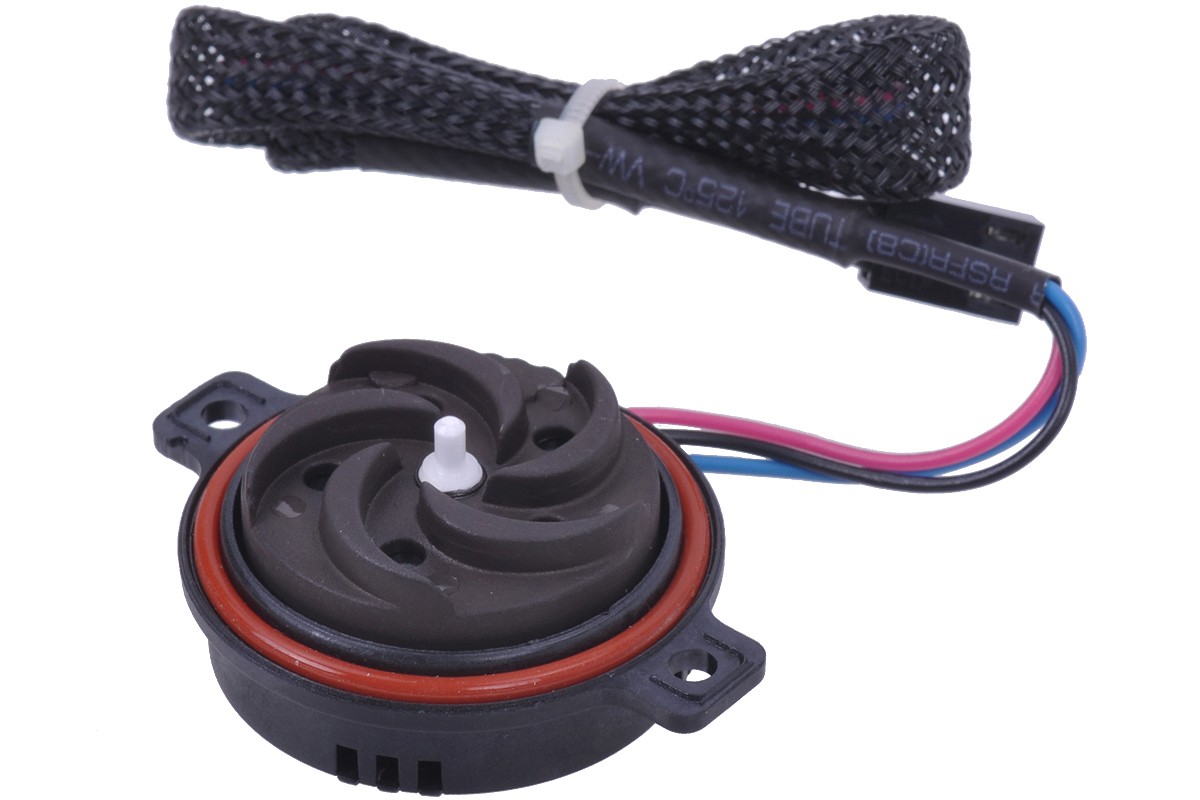

  • Kit part: DC-LT pump
  • Kit part: DC-LT reservoir
  • Kit part: single 60mm radiator
  • Kit part: 11/8mm clear PVC tubing
  • Kit part: 11/8mm compression fitting
  • Kit part: MCX plugs
  • Kit part: 3-pin power distribution cable
  • Kit part: 5/3mm PVC tubing
  • Kit part: 15mm x 15mm adhesive thermal pad
  • Kit part: Noiseblocker NB-Blacksilent XR1 fan
  • Kit part: MCX 5-way divider
  • Kit part: MCX nickel block

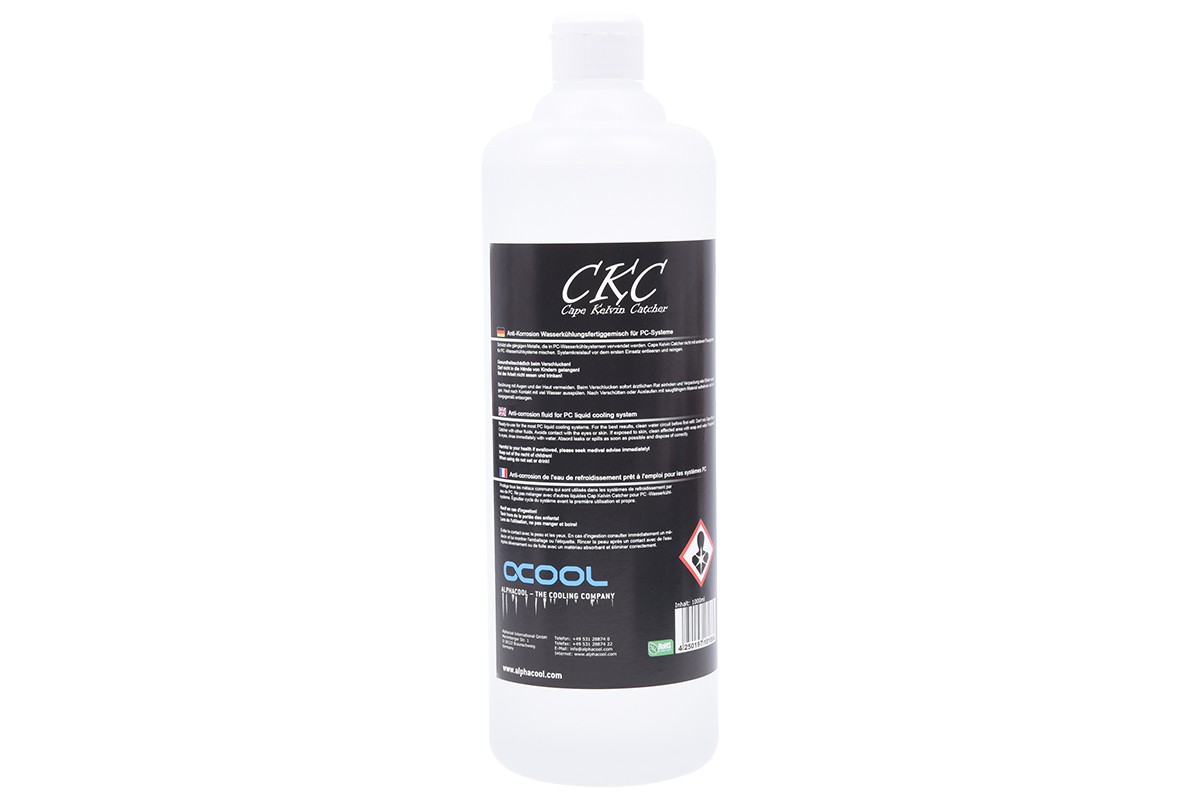

  • Kit part: Alphacool CKC fluid

ModMyMods Raspberry Pi Mini Water Cooling Kit (MOD-0171)

Availability: Out of stock

Sku: MOD-0171

$139.99

Quick Overview

Complete mini water cooling kit for a Raspberry Pi or other embedded board: MCX nickel block, DC-LT pump with reservoir, 60mm radiator with two fans, tubing, fittings and coolant.

Details

Do you suffer from a baked Raspberry Pi, or is your Marsboard on the verge of melting? The ModMyMods Raspberry Pi Mini Water Cooling Kit is an all in one water cooling solution for small embedded devices. It has everything you need to cool a single device such as a Raspberry Pi, Cubieboard or NanoPC, and it works on any board with a 15mm by 15mm processor surface.

Properties

Type
Mini water cooling kit for embedded devices
Block
Alphacool MCX nickel block
Pump
DC-LT pump with pump top and reservoir
Radiator
Alphacool single 60mm radiator, 2 fans push/pull
Tubing
11/8mm and 5/3mm PVC
Coolant
250ml Alphacool CKC fluid

Water cooling for small boards

Small single board computers often run hot under load. The kit cools the processor with a mini water block and moves the heat to a 60mm radiator with two fans, away from the board.

The parts

How the loop runs

The loop goes from the pump and reservoir to the radiator, then to the first divider block, through the thin 5/3mm tubing to the MCX block on your board, back to the second divider block and on to the pump. The 5/3mm tubing holds on the barbs of the divider blocks and the MCX block by itself; the 11/8mm tubing is secured with the compression fittings.

Up to five devices

The two MCX 5-way divider blocks let the kit cool up to five embedded devices in one loop. For more than one device, add an Alphacool MCX One nickel block for each extra board; for a single device, the MCX plugs close the unused barbs.

Compatible embedded devices

Odroid, Orange Pi, Banana Pi, Cubieboard, Raspberry Pi, UDOO, NanoPi, NanoPC, MinnowBoard and Marsboard. If your board is not listed, the kit can be made to cool any board with a 15mm by 15mm surface.

Videos

See the effect of the Mini Water Cooling Kit on a Raspberry Pi 3, and more on water cooling embedded devices.

Technical data

Part number MOD-0171
Cooling for 1 embedded device, up to 5 with extra MCX blocks
Contact surface 15mm x 15mm
Radiator Alphacool single 60mm
Fans 2x Noiseblocker NB-Blacksilent XR1
Pump DC-LT with pump top and reservoir
Tubing 11/8mm clear PVC, 5/3mm PVC
Fittings 11/8mm compression, G1/4
Coolant Alphacool CKC fluid, 250ml

Notes

  • Hand tighten all fittings and screws; the pump top, reservoir and blocks can crack or strip if overtightened.
  • Fill the reservoir and power the pump in short cycles; never let the pump run dry.
  • Leak test the loop before you power up your embedded device.

In the box

  • 1x Alphacool Single 60mm Radiator (1011594)
  • 1x MCX Plugs - 10 pack (18036)
  • 1x MCX Nickel Block (20014)
  • 2x MCX 5x Way Dividers Block (20001)
  • 1x DC-LT Pump
  • 1x DC-LT Pump Top (52197)
  • 1x DC-LT Reservoir (52200)
  • 6x 11/8mm Compression Fittings (62174)
  • 3x Phobya G1/4 Plug (68080)
  • 1x 15mm x 15mm Adhesive Thermal Pad (31085)
  • 2 feet 11/8mm Clear PVC Tubing (58000)
  • 2 feet 5/3mm PVC Tubing (55000)
  • 2x Noiseblocker NB-Blacksilent Fan - XR1 (77222)
  • 1x 250ml Alphacool CKC Fluid
  • 1x Phobya 3x 3-Pin to 3-Pin Power Distribution Cable (81125)
