Details

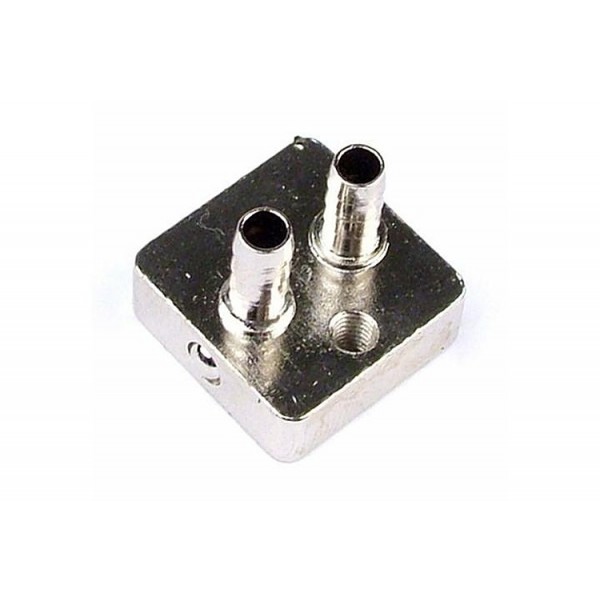

The Alphacool MCX One - Nickel Edition is a miniature waterblock made of nickel-plated copper. It measures 15 x 15 x 5 mm and takes tube with a 3 mm inner diameter, one block per pack.
Properties
- Tube size
- 3 mm inner diameter
- Size (L x W x H)
- 15 x 15 x 5 mm
- Material
- Nickel-plated copper
- Color
- Silver
- Pieces in the pack
- 1
What it is for
Alphacool says the block offers a multitude of possibilities and allows most efficient cooling of e.g. RAM modules on graphics cards or VRM modules. It can be mounted easily. If the criteria is flexibility and design in combination with optimal performance, Alphacool calls the MCX one an adequate solution. Your investment is also long-term, as the MCX components can be used again, for example if you are purchasing a new graphics card.
What the loop needs
The block takes tube with a 3 mm inner diameter, which is in our 3mm ID x 5mm OD soft tubing section. The MCX 2x Distributor ties two such tube runs into the main loop through its 3 mm hose nozzles.
Technical data
| Dimensions (L x W x H) | 15 x 15 x 5 mm |
| Material | Nickel-plated copper |
| Tube size | 3 mm inner diameter |
| Pressure tested (without clamps) | 3 bar |
| Pressure tested (with clamps) | 8 bar |
| Max working temperature | 60 °C |
| Color | silver |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x MCX one
Alphacool's data sheet for the block is a PDF.
