Details

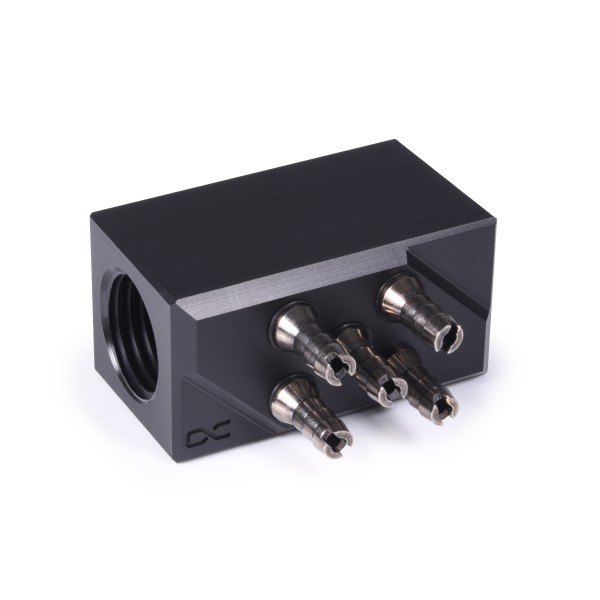

The Alphacool MCX 5-Way Divider is a divider piece for the MCX waterblock with 2 G1/4 threads, 2 M3 threads and 5 barbed fittings for 3 mm tube, one piece per pack. Alphacool lists it as the MCX 5x distributor G1/4, a distributor for its NexXxoS MCX One cooler.
Properties
- Thread
- 2x Thread G1/4, 2x Thread M3
- Tube size
- 5x Barbed fitting 3 mm, pressed in
- Dimensions
- 28 x 20 x 18 mm
- Color
- Black
- Pieces in the pack
- 1
What the loop needs
The two G1/4 threads take the fittings that tie the divider into the loop. Each of the five hose nozzles takes a tube with a 3 mm inner diameter, which is in our 3mm ID x 5mm OD soft tubing section. The block it feeds is the MCX One.
Technical specifications
| Connections | 2x threaded hole G1/4 |
| Connections | 2x M3 holes |
| Connections | 5x hose nozzles 3 mm pressed in |
| Pressure tested (without clamps) | 3 bar |
| Pressure tested (with clamps) | 6 bar |
| Max working temperature | 60 °C |
| Material | Acrylic |
| Color | black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Divider piece
Alphacool's data sheet for the divider is a PDF.
