Details

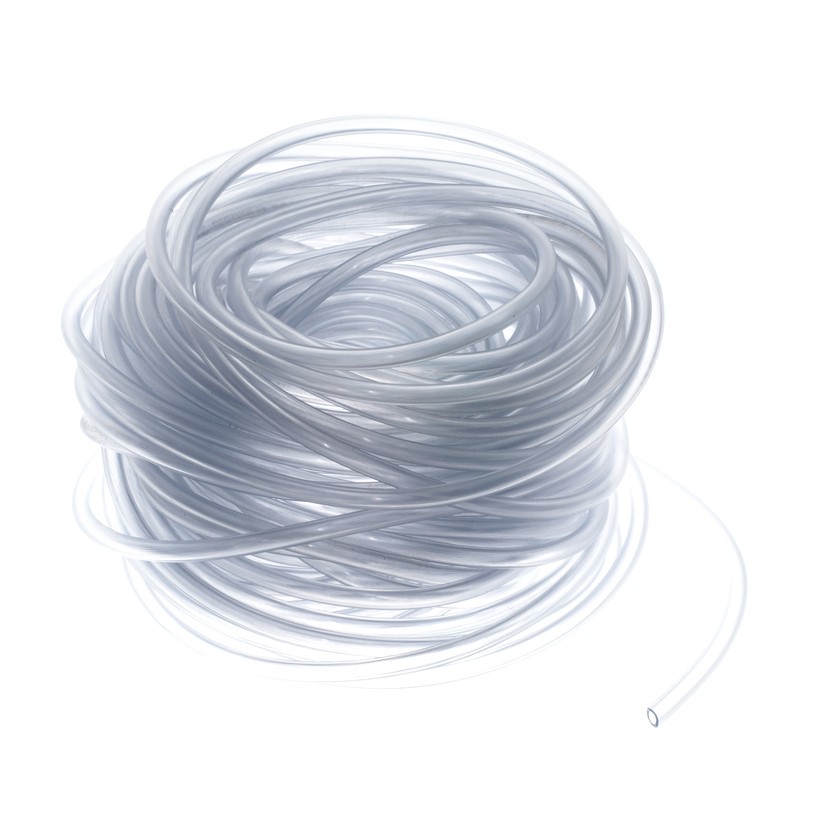

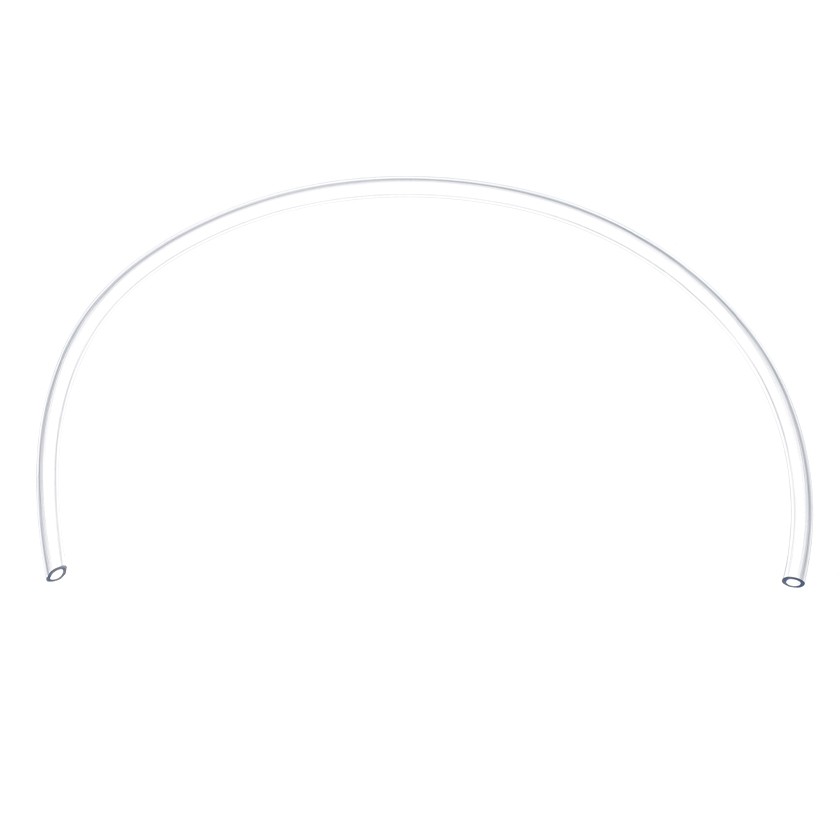

ModMyMods 3mm ID x 5mm OD PVC Tubing is clear soft tubing for small water cooling builds, also listed as 5/3mm. With a 3 mm inner diameter and a 5 mm outer diameter it is made for compact loops, embedded devices and single-board computers where standard PC tubing is too large. It is sold by the foot.
Properties
- Type
- PVC tubing
- Size
- 3mm ID x 5mm OD
- Metric size
- 5/3mm
- Material
- PVC
- Color
- Clear
- Sold by
- The foot
For small loops
This size suits very small cooling parts with thin barbs, such as Alphacool MCX blocks. In the ModMyMods Raspberry Pi Mini Water Cooling Kit it runs between the divider blocks and the MCX block, where the barbed connections hold the tube on their own.
Clear PVC
The clear wall lets you see the coolant and any air bubbles while you fill and bleed the loop. PVC tubing is soft and bends easily around tight corners.
Two small sizes
ModMyMods sells clear PVC tubing for small builds in 3mm ID x 5mm OD (5/3mm) and 8mm ID x 11mm OD (11/8mm). This listing is the 3mm ID x 5mm OD tube.
Technical data
| Type | PVC tubing |
| Inner diameter (ID) | 3 mm |
| Outer diameter (OD) | 5 mm |
| Wall thickness | 1 mm |
| Metric size | 5/3mm |
| Material | PVC |
| Color | Clear |
| Sold by | The foot (quantity 1 = 1 foot) |
Notes
- Cut the tube square with a sharp blade so it seats evenly on the barb or fitting.
In the box
- 1x ModMyMods 3mm ID x 5mm OD PVC Tubing - Clear (1 foot per quantity)
