Details

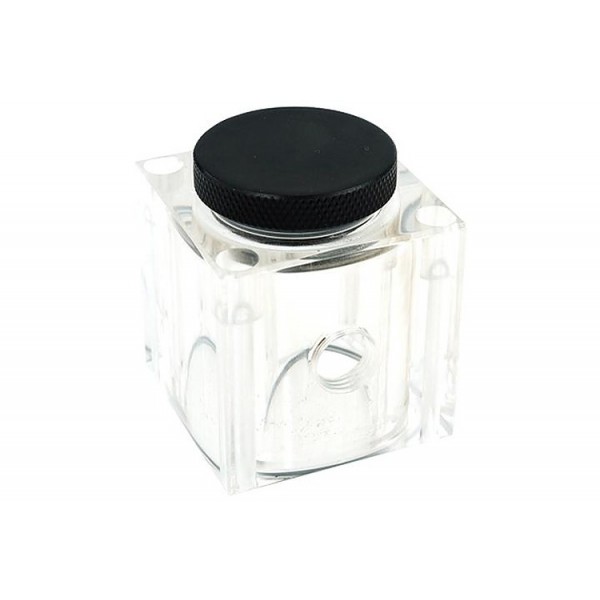

The Alphacool DC-LT Individual Reservoir is a 49 x 49 x 56 mm reservoir that screws onto an Alphacool DC-LT ceramic 12 Volt pump already equipped with the DC-LT Plexi top. Neither the pump nor the top is in the box.
Properties
- Pump
- Alphacool DC-LT with DC-LT Plexi top
- Ports
- 1x G1/4 on the side, 1x 1 inch for the fill level indicator
- Size (L x W x H)
- 49 x 49 x 56 mm
- Material
- Röhm Plexiglas GS / brass
- Color
- Transparent / black
A module for the DC-LT pump
Alphacool calls this reservoir, an expansion tank, the ideal addition to a pump that carries the Plexi top. It is another module for the expansion and improvement of that pump. As a basis, a pump that already has the top is used, and with only a few steps it can now be additionally equipped with a reservoir.
Mounting
Simply place the reservoir on the ring gasket, on top of the pump top. Then tighten the four screws in the corners. Gasket and screws are also included: they are part of the extent of delivery. Done!
Threads
Both threads are machined into the reservoir. The G1/4 one sits on the side and can be used as an inlet or for a lighting module. The second opening is a 1 inch thread, and it holds the fill level indicator.
What the loop needs
The reservoir needs a DC-LT pump with the Plexi top. Please note that for operation of that top only one of its two inlet openings is needed. Hence we recommend ordering a screw plug for the other. Alphacool adds that this product has been reviewed for you by the Hardwaremax Review-Center.
Technical specifications
| Material | Röhm Plexiglas GS / brass |
| Color | Transparent / black |
| Dimensions (LxWxH) | 49 x 49 x 56 mm (without fittings, without pump) |
| Weight | 141 g |
| Connection threads | 1x G1/4 |
| Fill level indicator thread | 1 inch |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x Alphacool reservoir individual for DC-LT pumps
- 1x Gasket (sealing ring)
- 1x Fill level indicator with gasket (O-ring)
- 4 mounting screws
Alphacool's 3D model of this reservoir is an STP file, and the 3D viewer shows it from every side.
