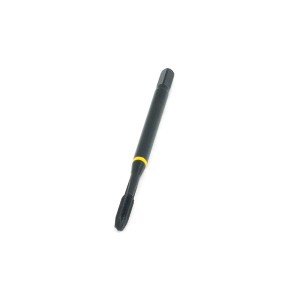

Tap for an M3 thread, can be used as a hand or machine tap.

This tap is a German branded product. The drill is made of steel and its surface is steam-tempered. This prevents cold welding of the drill on the component. The shank is extra reinforced so that the tool remains sharp even after repeated use. On the underside of the drill there are 3 channels in which the chips are thrown out in the cutting direction. The tip has an angle of 60°, which is ideal for use with pre-drilled openings. The dimensions of this component are standardized according to DIN 371.

Technical Details:
Manufacturer: Forum
Material: Steel
ISO Standard Thread DIN 13
Length: 56 mm
DIN: 371

M3 Thread, Pitch 0.5 mm
Shaft Diameter 3.5 mm
Square Shank 2.7 mm
Required Core Hole Diameter 2.5 mm
