Details

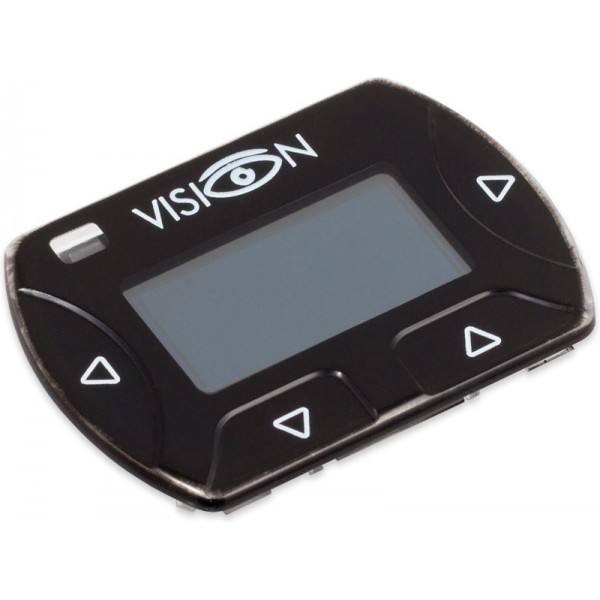

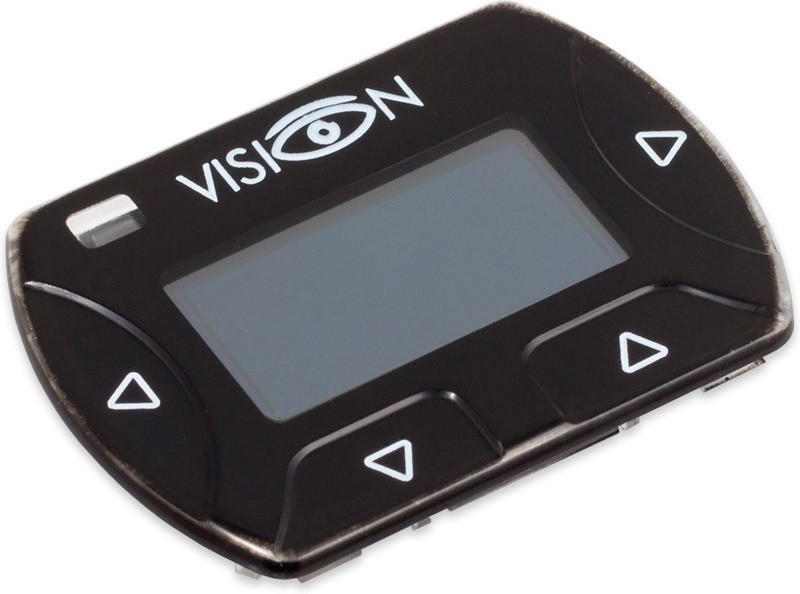

The Aquacomputer VISION Touch Replacement Module (With IR) (53245) is a VISION module assembly with an infrared (IR) receiver for the VISION Touch (53232) and the VISION Touch table top units 53237 and 53238. You receive the module alone, to be used as a replacement part in one of those devices.
Properties
- For
- VISION Touch (53232, 53237, 53238)
- Interface
- USB, aquabus, IR receiver
- Supply
- 5 VDC ±5 %, approx. 50 mA
- Ambient temperature
- 10 to 40 °C (noncondensing)
What the module is
Aquacomputer describes the VISION module as a multi-purpose display and monitoring controller with an integrated OLED display. It is configured from the PC over USB in the aquasuite software, which also does visualization and logging. Via aquabus it works with an aquaero 5 or 6, such as the aquaero 6 LT, and both interfaces can be used at the same time.
Infrared remote control
The IR receiver lets an aquaremote (53088, not included) open the configuration menu. It can also pass PC mouse and keyboard functions on to the computer. In multi device mode, one aquaremote controls up to ten VISION modules independently. The module can run up to ten user defined actions on a specific infrared code, and codes from many commercially available remote controls can be assigned to them. The receiver can also be disabled.
What the device needs
The module goes into an existing VISION Touch device, such as the VISION Touch table top unit with IR receiver (53238); the device itself is not part of this delivery.
aquasuite software
The aquasuite license with this product is an upgrade service: activation brings the current version, and updates are included for at least the next six (6) months. When that period ends, you may keep using and reinstalling the latest version available during it without a time limit. The update service can be extended or renewed at any time for a fee. Please note that an internet connection is required for installation and activation of the software. Further information about licensing and activation can be found on Aquacomputer's licensing pages.
Notes
- Turn off the power supply completely before connecting or disconnecting any cable.
- Clean with a dry and soft cloth; electronic components and headers must not get in contact with coolant or water.
Aquacomputer's manual for the VISION series covers the connectors, the infrared settings and every aquasuite option.
