Details

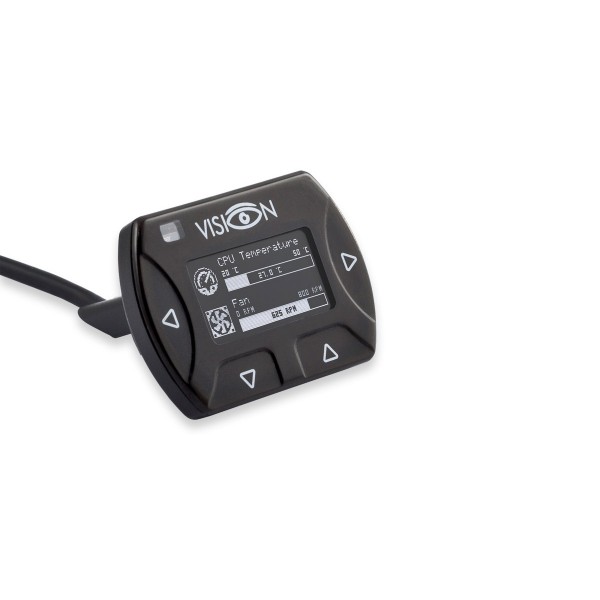

The Aquacomputer VISION Touch with External USB Cable, IR Receiver and Ambient Temperature Sensor is a high resolution 128x64 pixel OLED graphic display for data visualization, with an external USB cable of approx. 200 cm ending in a type A plug. It has four programmable keys, a programmable IR receiver, an integrated ambient temperature sensor, a flow sensor or alarm connector and an aquabus interface.
Properties
- Display
- OLED, 128x64 pixels, up to twelve display pages
- Connection
- USB cable approx. 200 cm, type A plug
- Controls
- four programmable keys, IR receiver
- Connectors
- flow sensor or alarm output, aquabus
- Size
- approx. 42.5 x 31 x 9.5 mm, 42.5 x 31 x 40 mm with stand
Graphic display
The VISION controller is equipped with an OLED graphic display of 128x64 pixels. Aquacomputer says the OLED technology guarantees an exceptional contrast ratio and a wide viewing angle.
Individually configurable display contents
Up to twelve display pages can be configured to show a variety of PC hardware data. Design layouts include single value screens, lists, bar graphs and charts, and all texts and graphical logos may be modified to accommodate personal preferences. A note pad function can display short memos.
Four programmable keys
The four device keys either control the VISION module itself or send USB keyboard commands to the PC. Each key function can be assigned individually for each display page.
Programmable IR receiver and temperature sensor
The infrared receiver can be used with an aquaremote (not included in delivery) or with a variety of third party IR remote controls. With an aquaremote, the remote can substitute for the keyboard and mouse of the PC. With third party remote controls, up to ten infrared codes can be programmed and have individual functions assigned.
Ambient temperature is constantly monitored by the integrated sensor, so that it can be used for display pages. If an adjustable threshold is exceeded, an alarm function can trigger a configurable action.
Connector for flow sensor or alternatively alarm output
One connector features two uses: either an Aqua Computer flow sensor is connected to it, or it serves as an alarm output for emergency shutdown of the PC. For both options, additional accessories are required, and they are not included in delivery. To connect a compatible flow sensor, use the flow sensor cable for VISION (53212). For the shutdown, the alarm output cable (53216) goes to the motherboard's power button header.
aquabus interface
Through the aquabus interface the VISION controller connects to an aquaero 5 or 6, such as the aquaero 6 LT. Both devices can then exchange various sensor data via the aquabus connection. The 4-pin aquabus cable for VISION (53214) is sold separately.
Mounting and software
With the clip-on stand attached, the display stands on a desk; the cable tie in the box mounts it instead. Configuration runs in the aquasuite software. When you activate the product, you receive the current aquasuite version with an upgrade service for at least six (6) months. After it expires, the latest version from the upgrade period stays usable without a time limit. The service can optionally be extended or renewed at any time for a fee, and installation and activation need an internet connection.
Aquacomputer also makes the VISION Touch as a table top unit with matte nickel plating.
Dimensions excluding cable
- Without stand: ca. 42.5 x 31 x 9.5 mm
- With stand attached: ca. 42.5 x 31 x 40 mm
In the box
- 1x VISION Touch with USB cable (approx. 200 cm, type A plug)
- 1x clip-on stand
- 1x cable tie
