Details
The Aquacomputer RGBpx PC Case Lighting Set, 60 LEDs (53271) is a set of addressable LED lighting for installation inside a PC case. Containing four RGBpx LED strips with 15 LEDs each as well as matching cables, it is controlled by an Aqua Computer device with an RGBpx output (not included in delivery).
Properties
- For
- One RGBpx output of an Aqua Computer device
- Pieces
- Four LED strips, four RGBpx cables
- Size
- Each strip approx. 32 cm long, 10 mm wide
- LEDs
- 15 per strip, 60 in total, individually addressable
How the set goes in
Every strip in this set carries 15 individually addressable LEDs, and they are covered by a transparent coating. All four strips contained in the box can be connected in series with the supplied cables, and the whole chain then runs from a single RGBpx output.
For easy mounting, Aquacomputer has embedded four magnets into each strip. Additionally, the rear side of every strip is equipped with a self adhesive coating.
What you need to connect it
An Aqua Computer device is required for operation, one that has an RGBpx output, for example the farbwerk 360 or the OCTO fan controller. An RGBpx cable of 200 cm is sold separately.
Compatibility
Aquacomputer lists the set as compatible with these devices:
- D5 NEXT (41118)
- QUADRO fan controller (53256)
- farbwerk 360 (53279)
- farbwerk nano (53280, 53281)
- OCTO fan controller (53286)
- high flow NEXT (53293)
Technical details of the LED strips
| Length | approx. 32 cm |
| Width | approx. 10 mm |
| LEDs | 15 individually addressable LEDs, with transparent coating |

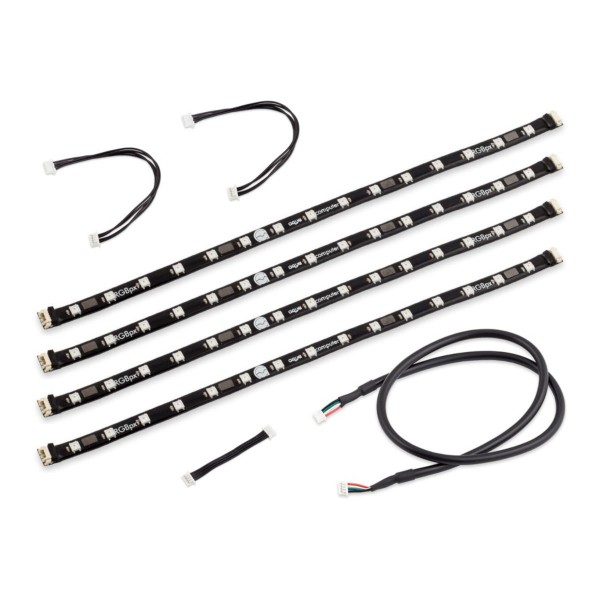

In the box
- Four RGBpx LED strips, length 32 cm, 15 addressable LEDs (item code 53268)
- One RGBpx cable, length 50 cm (item code 53261)
- Two RGBpx cables, length 10 cm (item code 53260)
- One RGBpx cable, length 4 cm (item code 53259)
