Details
The Aquacomputer RGBpx Monitor Lighting Set, 60 LEDs (53272) is an RGBpx lighting set for mounting on the back of a monitor. Consisting of four LED strips and the matching connection cables, it gives 60 addressable LEDs. Aquacomputer calls it ideal for the AMBIENTpx effect.
Properties
- Strips
- Four, 15 controllable LEDs each (60 in total)
- Strip length
- approx. 32 cm
- Strip width
- approx. 10 mm
- LEDs
- Individually addressable, transparent coating
- Mounting
- Four magnets per strip and a self adhesive coating
What the set contains
The technical details of each strip: it includes 15 controllable LEDs, measuring about 32 cm in length and 10 mm in width. They are RGBpx LED strips, item code 53268. With them come the cables to join them: one 200 cm RGBpx cable (53266), two 10 cm cables (53260) and one 4 cm cable (53259).
Mounting
For easy installation, four magnets are embedded into each strip. The rear side of every strip is additionally equipped with a self adhesive coating.
What you need to connect it
All four contained strips can be connected in series and controlled by a single RGBpx output. To operate them, an Aqua Computer control unit with RGBpx output is required (not included in delivery); the compatible devices are listed below. For inside a PC case, the same four strips with a different long cable come as the RGBpx PC case lighting set (53271).
Compatibility
Aquacomputer lists the set as compatible with these devices:
- D5 NEXT (41118)
- QUADRO fan controller (53256)
- farbwerk 360 (53279)
- farbwerk nano (53280, 53281)
- OCTO fan controller (53286)
- high flow NEXT (53293)

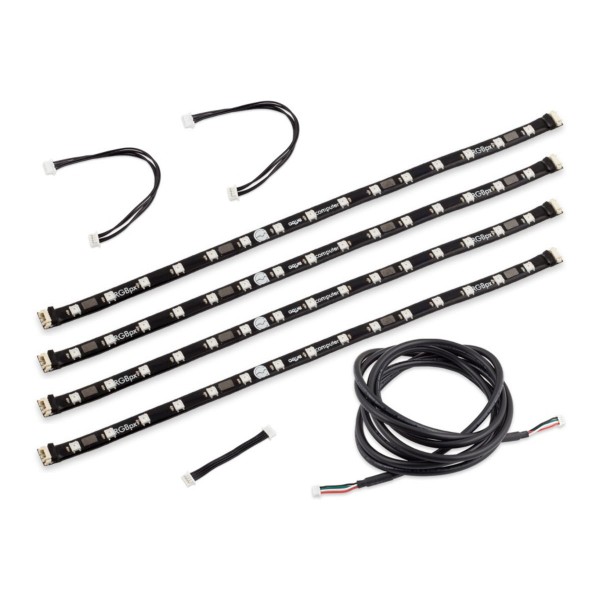

In the box
- Four RGBpx LED strips, length 32 cm, 15 addressable LEDs (item code 53268)
- One RGBpx cable, length 200 cm (item code 53266)
- Two RGBpx cables, length 10 cm (item code 53260)
- One RGBpx cable, length 4 cm (item code 53259)
