Details

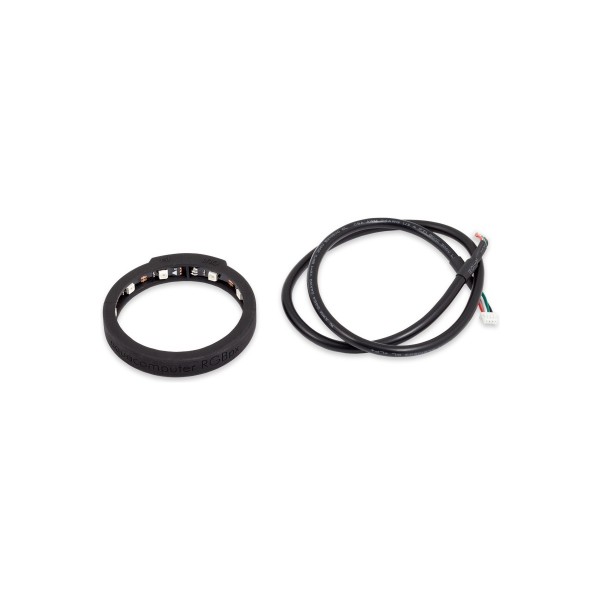

The Aquacomputer RGBpx LED Ring Aqualis 100/150, 10 Addressable LEDs (53276) is an RGBpx-compatible reservoir lighting ring for aqualis 100 and aqualis 150 expansion tanks (reservoirs), with an inner diameter of 50 mm. It holds a total of 10 individually addressable LEDs and needs a control unit with RGBpx output, which is not included.
Properties
- For
- aqualis 100 and aqualis 150 reservoirs (glass tube)
- LEDs
- 10, individually addressable
- Inner diameter
- 50 mm
- Dimensions
- approx. 60 x 62 x 10 mm
- Material
- Black rubber ring
How it fits
The LEDs are mounted inside a black rubber ring. That ring is slid onto the glass tubes of the aqualis 100/150 series reservoirs, so it sits around the outside of the tank. Aquacomputer's details give the ring a size of about 60 x 62 x 10 mm.
What you need to connect it
To operate the LED strip in the ring, an appropriate Aqua Computer device with RGBpx output is required; the compatible ones are listed below. A 50 cm RGBpx cable for that connection comes in the box. At the end of the strip there is an additional connector, so another RGBpx component can be connected consecutively; longer or shorter leads are in our addressable RGB cables section. For ULTITUBE reservoirs Aquacomputer makes the RGBpx LED ring with 13 LEDs (34115).
Compatibility
Aquacomputer lists the LED ring as compatible with these devices:
- D5 NEXT (41118)
- QUADRO fan controller (53256)
- farbwerk 360 (53279)
- farbwerk nano (53280, 53281)
- OCTO fan controller (53286)
- high flow NEXT (53293)
In the box
- 1x RGBpx LED ring for aqualis 100/150, 10 addressable LEDs
- 1x RGBpx connection cable, length 50 cm
