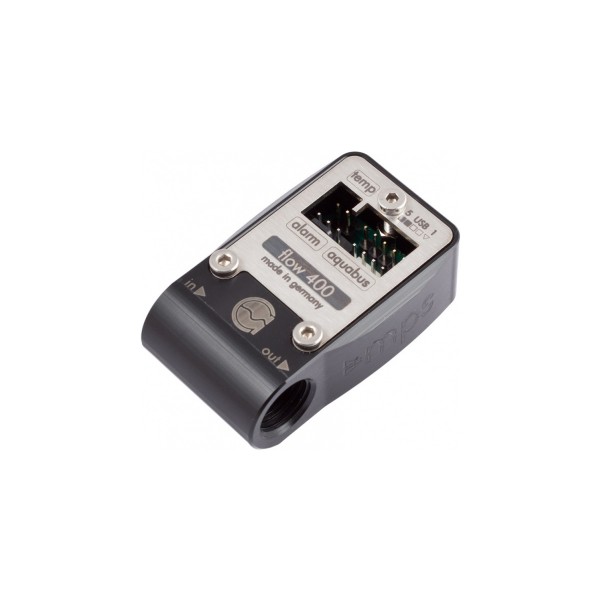

Aquacomputer G1/4 MPS Flow Indicator | 400 (53132)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Aquacomputer G1/4 MPS Flow Indicator | 400 (53132)

Availability: Out of stock

Sku: 71216


Quick Overview

The flow sensors of the mps flow series are based on a pressure difference measurement and require no rotating parts.


The flow sensors of the mps flow series are based on a pressure difference measurement and require no rotating parts.

Thanks to the excellent sensitivity of the used sensor, only minimal flow resistance is induced. This principle of operation is unique in the PC water cooling sector and allows extremely compact sensors.
Boasting intregrated signal analyzation with integrated USB- and aquabus interface, a configurable alarm output as well as an integrated water temperature sensor and external temperature input, this is the ultimate sensor for all applications! For monitoring and configuration the software aquasuite is available for download. A 4-pin aquabus interface allows direct connection to an aquaero 5 (not included). The alarm output can either be configured as an artificial rpm signal for connection to a fan channel with speed monitoring (e.g. Mainboard fan channels) or as a switching channel for e.g. activating a LED in case of an alarm. For alarm monitoring besides the measured flow rate and water temperature, an external temperature sensor input is available. The external temperature sensor input is compatible with all temperature sensors offered by Aqua Computer.

Currently three versions of the mps flow sensor are available, each suitable for a different flow range. Please choose the sensor most suitable for your system:
mps flow 100: Measuring range approx. 20 - 100 liters per hour (Item No. 71214)
mps flow 200: Measuring range approx. 40 - 200 liters per hour (Item No. 71213)
mps flow 400: Measuring range approx. 80 - 400 liters per hour (Item No. 71216)

Compatibility list aquabus interface:
aquaero 5 XT (Item No. 70213 and 70173)
quaero 5 PRO (Item No. 70174)
aquaero 5 LT (Item No. 70175)

Compatibility list external temperature sensor input:
Temperature sensor inline G1/4" (Item No. 71162)
Temperature sensor inner-/outer thread G1/4" (Item No. 71160 and 71170)
Temperature sensor 50cm and 90cm (Item No. 71125 and 71005)

Additional Information

NE US Item # 9SIA9F95MZ1833
Amazon ASIN NA
NE CA Item # 9SIAA5K5MZ1824
Manufacturer Aquacomputer
Product Type Flow Sensor
Measuring Range 80 - 400 Liters per hour
Overall Dimensions Approx. 55 x 34 x 21mm
Power Connector N/A
Input Voltage N/A
Color Black / Silver
Included 1x Aquacomputer MPS Flow Indicator 1x Internal USB Connection Cable 1x Aquabus / RPM Signal Cable (3-pin)
Material No
