Details

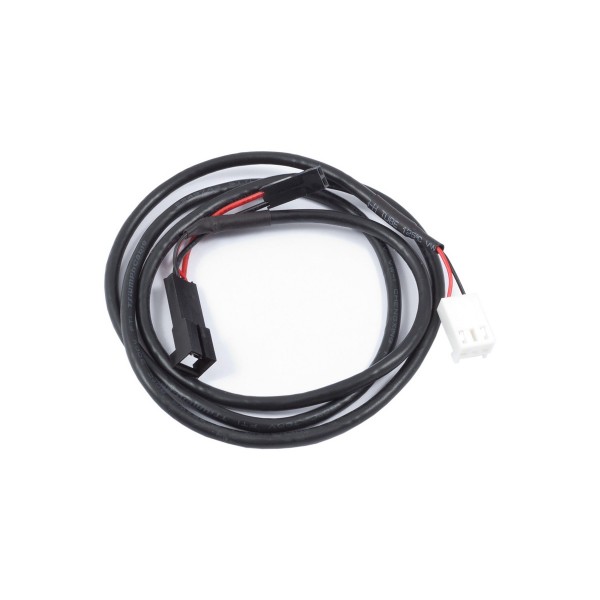

The Aquacomputer Connection Cable Alarm Header (Fan Plug) to Motherboard Power Switch Header (53217) is an emergency shutdown cable, approx. 70 cm in total length. It links the alarm header of an aquastream ULTIMATE or an mps family device (mps flow, mps pressure) to the power switch header of a computer motherboard.
Properties
- For
- aquastream ULTIMATE (41108), mps family devices
- Connects
- RPM/alarm header to motherboard power switch header
- Length
- approx. 70 cm in total
- Pieces
- One cable
How it works
The cable can be used for an emergency shutdown: it allows the PC to be switched off by the power switch input when the pump or sensor raises an alarm condition. It is connected in between the motherboard and the power switch of the PC case, so that switch remains operational as before.
Setting it up
Before you connect anything, make sure the device's RPM/alarm header is configured correctly. This is done in the aquasuite Software:
- For the aquastream ULTIMATE, activate "Power switch (53217)" on the tab "Alarms".
- For mps devices, the entry "Power switch (53217)" has to be activated on the tab "Alarm configuration".
After connecting, test the setup by deliberately creating an alarm condition. If the PC stays on, the cable header on the motherboard must be rotated by 180 degrees, and the test repeated.
Compatibility
Aquacomputer's product information names one device as compatible:
These devices are not on that list: aqualis XT, aquainlet XT and the D5 pump with USB and aquabus interface. Nor are the pump adapter/pump module for aqualis with fill level sensor and the flow sensor high flow USB. The poweradjust 3 USB is not on it either.
Notes
- An emergency shutdown may result in data loss, because the operating system and running programs are not shut down properly.
