Details

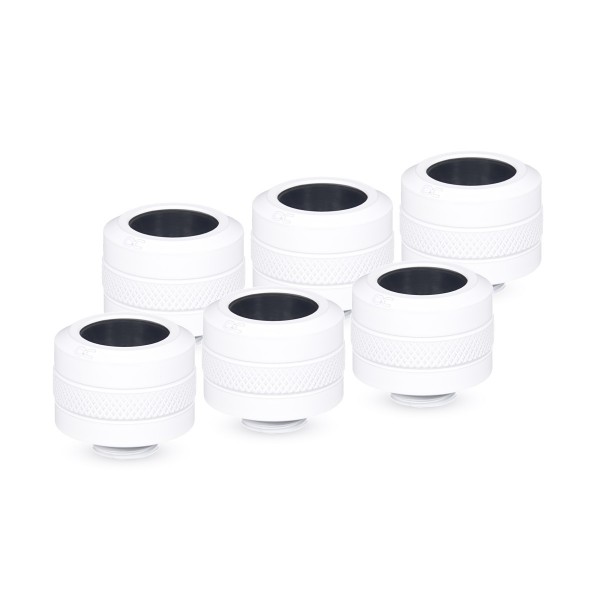

The Alphacool Eiszapfen PRO 16mm HardTube Fitting G1/4 - Six Pack - White is a compression fitting with a G1/4 thread for 16 mm hard tubes, six fittings per pack. Please note: it is not recommended for use with Bitspower brand tubing.
Properties
- Thread
- G1/4
- Tube size
- 16 mm hard tube
- Color
- White
- Material
- Brass
- Pieces in the pack
- Six
The problem it solves
Alphacool presents the Eiszapfen PRO HardTube fittings as the next step in development for the familiar Eiszapfen. In that development the company concentrated on a specific problem: PETG hard tubes deforming at high temperatures. By Alphacool's figure, PETG can start to deform at as little as 60 °C. Although such a temperature is usually rarely reached, it can still occur. These fittings prevent the problem from the outset and hold the tubes in position.
How it holds the tube
The deformation is prevented by the new nylon inserts inside, a design which stabilizes the hard tubes. Furthermore, an O-ring and a compression seal are still part of the fitting. The contact area here, however, spreads over a much larger surface than with normal O-rings, which Alphacool says provides a better grip. With the insert and the compression seal, the tube is strengthened from the inside and the outside.
Alphacool states that the HardTube does not slip even under heavy loads. It has tested the tensile strength of up to 8 kg, so there is no need to worry about loose tubing.
What a run needs
A tube run takes two fittings, one at each end. Each fitting screws into a G1/4 port and takes PETG, acrylic, brass and glass tubes; tubes to match are in our 16mm hard tubing section.
Technical details
| Material | Brass |
| Color | White |
| Height | 23 mm |
| Diameter | 26 mm |
| Thread length | 5 mm |
| Thread | G1/4 |
| HardTube Size | 16 mm |
| Compatibility | PETG, acrylic, brass and glass tubes |
| Weight | 42 g |
Alphacool lists this pack as the White Sixpack. On its site you can find an interactive Fitting Map of all Alphacool fittings and a datasheet PDF to download. Alphacool's 3D model of this fitting is an STP file, and the 3D viewer shows it from every side.
