Details

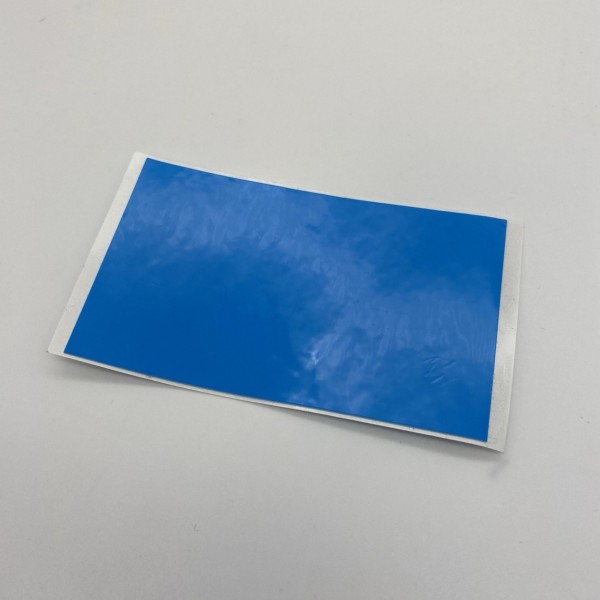

The ModMyMods Thermal Adhesive Pad is a 100 mm x 60 mm sheet of thermally conductive adhesive pad material. It bonds a heatsink to a component and carries the heat across at the same time, so small heatsinks can be fitted where there are no mounting holes or clips. Cut it to size for as many heatsinks as the sheet covers.
Properties
- Type
- Thermal adhesive pad, cut to size
- Size
- 100 x 60 mm
- Pieces in the pack
- 1
Stick heatsinks on without clips
Small heatsinks on memory chips, voltage regulators, controllers and single board computers usually have no mounting hardware. The adhesive pad holds the heatsink in place and makes the thermal contact in one step.
One sheet, many heatsinks
At 100 x 60 mm the sheet covers many small heatsinks. It is the same pad that comes with the ModMyMods Cold Forged Copper Heatsink 10 packs, and it suits the single heatsinks as well.
How to apply
Clean the component and the heatsink base so both are free of dust and grease. Cut a piece the size of the heatsink base, peel off the protective film, stick the piece to the heatsink and press the heatsink firmly onto the component. The pad is flexible, so it follows the surface of the part.
Technical data
| Product | Thermal adhesive pad |
| Sheet size | 100 x 60 mm |
| Use | Bonding small heatsinks to chips |
In the box
- 1x ModMyMods Thermal Adhesive Pad - 100mm x 60mm
