Details

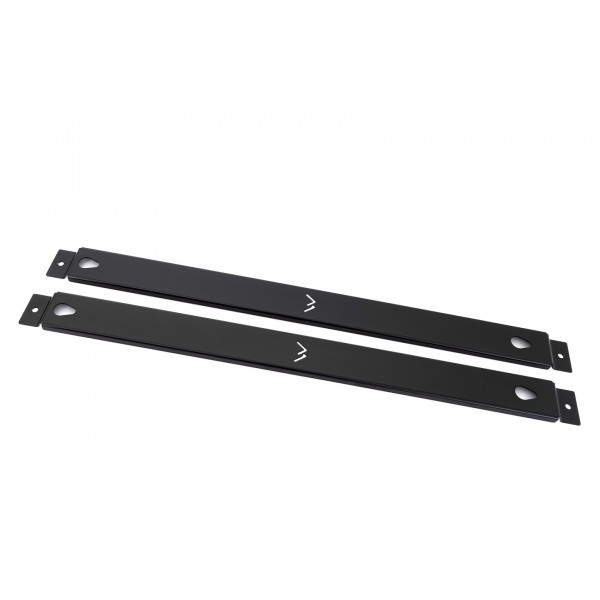

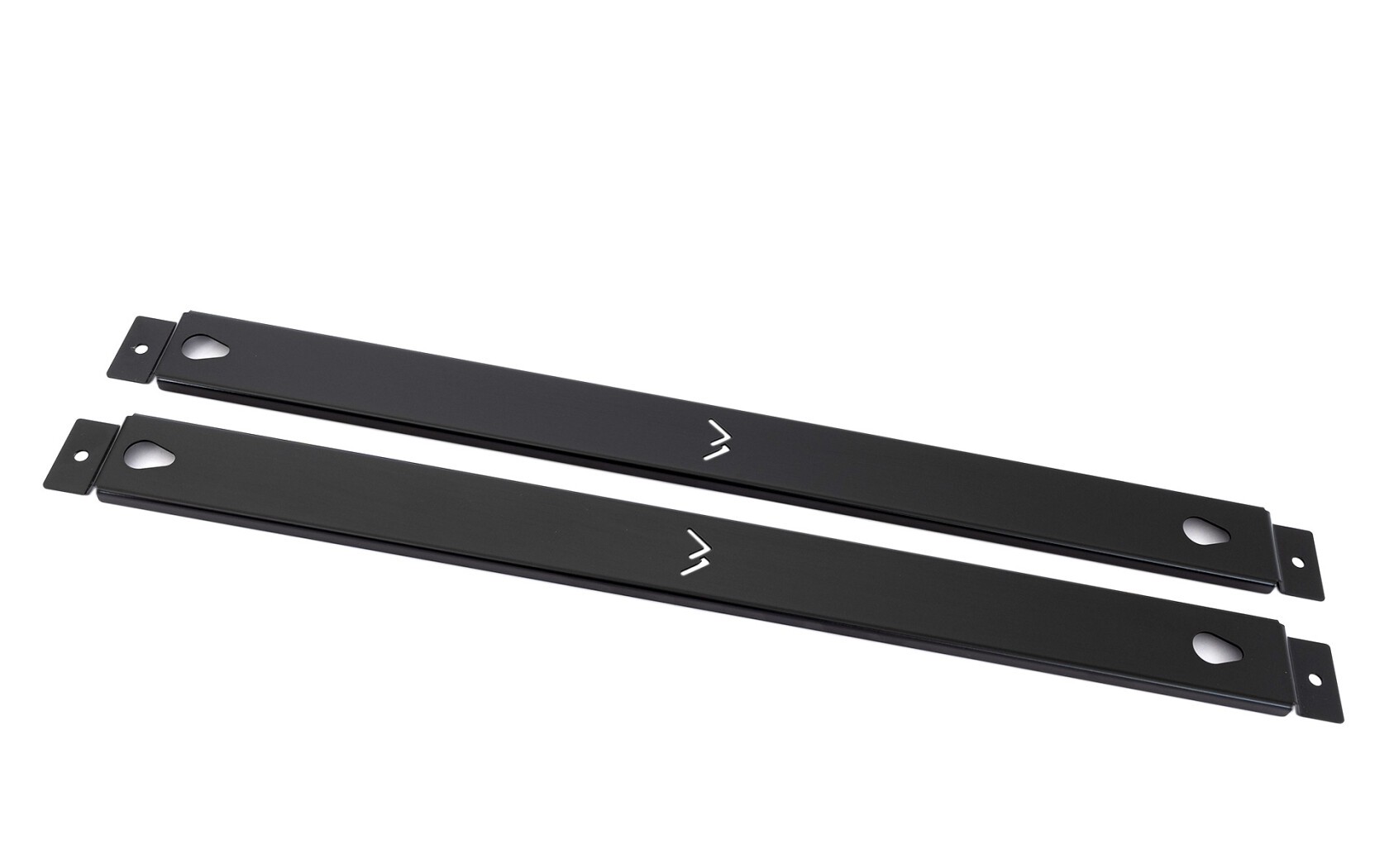

A wall mount for the MO-RA IV 600 radiator that holds it on any large, flat surface, such as a wall. The Watercool MO-RA IV 600 Wall Mount - Black (26630) is sheet steel, powder-coated in black, 605.5 mm long, and it ships with its mounting material.
Properties
- For
- All MO-RA IV 600
- Size
- 605.5 x 46 x 11 mm (L x W x H)
- Material
- Sheet steel, powder-coated black
- Weight
- 0.91 kg
Maximum flexibility with the MO-RA IV radiator and the Wall-Mount
The design of the bracket allows for easy installation and removal of the radiator, ensuring maximum flexibility: you can easily mount your MO-RA IV and take it down again when needed.
Quick conversion and easy adjustments
Once the wall mount is up, quick conversions and various adjustments to the MO-RA IV can be carried out quickly and easily. On the radiator side the mounting parts are fitted as Watercool's instructions show. Check that the washers are positioned properly, because they anchor the radiator in the wall bracket.
Options
For the smaller radiators there is the MO-RA IV 200/400 Wall Mount - Black (26430). More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Sheet steel powder-coated in black or white |
| Dimensions (L x W x H) | 605.5 x 46 x 11 mm |
| Weight | 0.91 kg |
| Compatibility | All MO-RA IV 600 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the bracket and its mounting parts.
- 1x MO-RA IV Wall Mount
- 1x mounting material
Watercool's assembly instructions cover the MO-RA IV series, with a page on the wall mount and the hole spacing of each size.
