Details

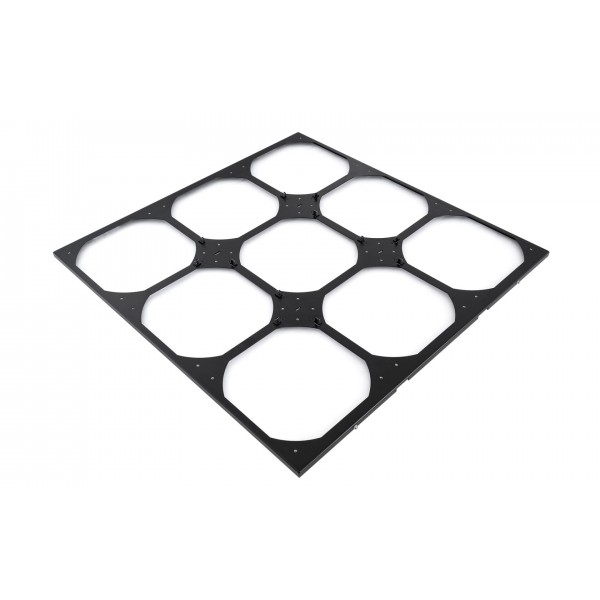

An additional fan frame for the MO-RA IV 600 radiator that takes 200 mm fans (200 x 200 x 30 mm) and has a fan splitter built in. With it the MO-RA IV can be equipped with fans on both sides. The Watercool MO-RA IV 600 Fan Frame for 200mm Fans - Black (26620) is black powder-coated sheet steel.
Properties
- For
- MO-RA IV 600
- Fans
- 200 x 200 x 30 mm
- Size
- 631 x 615 x 10 mm (L x W x H)
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 1.13 kg
Quick-mount system
Watercool newly designed these frames, and like the fan grill they use its specially developed quick-mount system. The fan frame is therefore very easy to install, and it comes off again without tools for maintenance. The MO-RA IV 600 adds a Quick Lock feature. A permanent lock is also possible as an option, though not necessary.
Cabling taken into account
Watercool has also thought about the wiring and integrated a fan splitter, so the fans you have on the back plug into the frame. This saves you the hassle of complex cabling with 200mm fans.
Options
The front of the same radiator takes the MO-RA IV 600 Fan Grill (26610) in black. The frame also comes in white (26621), and more parts for the radiator are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 631 x 615 x 10 mm |
| Weight | Approx. 1.13 kg |
| Surface | Black |
| Fan compatibility | 200 x 200 x 30 mm |
| Compatible | MO-RA IV 600 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- A Noctua NF-A20 mounts with short M4x10 mm screws.
In the box
The scope of delivery is the frame alone.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions cover the MO-RA IV series, with the fan frame, Quick Lock and fan mounting steps and the dimensions of each size.
