Details

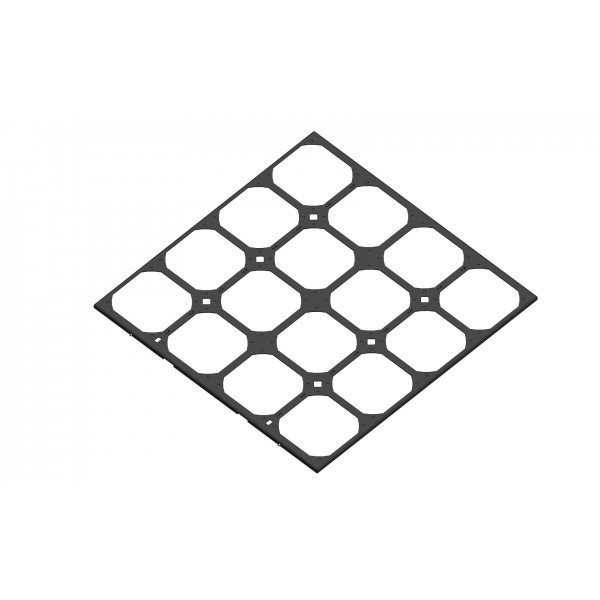

A fan frame for the MO-RA IV 600 radiator that holds sixteen 140 mm fans (16x 140 x 140 mm). The Watercool MO-RA IV 600 Fan Frame for 140mm Fans - Black (26625) is black powder-coated sheet steel and goes on with Watercool's quick-mount system.
Properties
- For
- MO-RA IV 600
- Fans
- 16x 140 x 140 mm
- Size
- 615 x 630.5 x 10 mm (L x W x H)
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 0.55 kg
For anyone who relies on 140mm fans
Watercool calls this frame the ideal option for builders who already have 140 mm fans or prefer them over the 200 mm size.
Quick-mount system
The fan frames are newly designed, and like the fan grill they use Watercool's specially developed quick-mount system. The frame is therefore very easy to install, and it can be mounted and unmounted without tools for maintenance. On the MO-RA IV 600 there is also a Quick Lock feature. Locking the frame in place permanently is possible as an option, though not necessary.
Cabling
Watercool has also taken the wiring into account and provided the necessary options for routing the fan cables on the frame.
Options
Pick sixteen 140 mm fans to fill it. Standard fans with a 25 mm frame height mount with M3x30 screws. For 200 mm fans on the same radiator there is the MO-RA IV 600 Fan Frame for 200mm Fans (white), and the front takes the MO-RA IV 600 Fan Grill. More parts are in our MO-RA IV Accessories category.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 615 x 630.5 x 10 mm |
| Weight | Approx. 0.55 kg |
| Surface | Black |
| Fan Compatibility | 16x 140 x 140 mm |
| Compatible | MO-RA IV 600 |
Notes
- Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
In the box
The scope of delivery is the frame alone.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions cover the MO-RA IV series, with the fan frame, Quick Lock and fan mounting steps and the dimensions of each size.
