Details

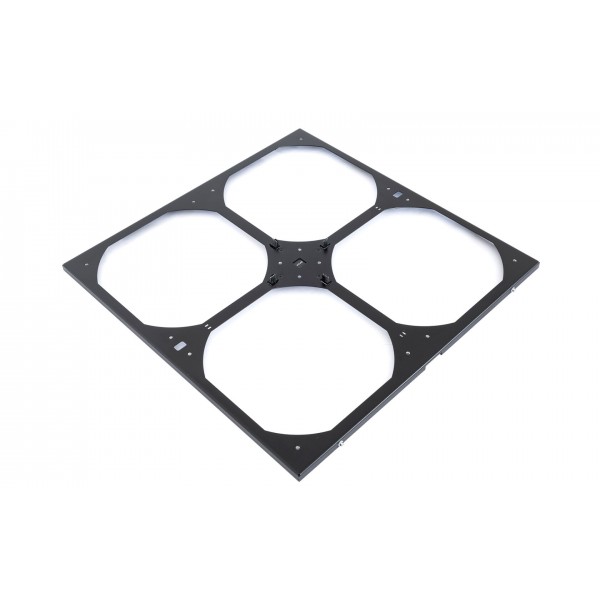

An additional fan frame for the MO-RA IV 400 radiator that takes two 200 mm fans (200 x 200 x 30 mm) on the back. With it the radiator can be equipped with fans on both sides. The Watercool MO-RA IV 400 Fan Frame for 200mm Fans - Black (26420) is black powder-coated sheet steel with a fan splitter integrated.
Properties
- For
- MO-RA IV 400
- Fans
- 2x 200 x 200 x 30 mm
- Size
- 421 x 416 x 10 mm
- Material
- Powder-coated sheet steel, black
- Weight
- Approx. 0.55 kg
Quick-mount, no tools
Watercool newly designed the frames, and like the fan grill they use its specially developed quick-mount system. The fan frame is therefore very easy to install. It goes on and comes off without tools, which helps with maintenance. A permanent lock is possible as an option but is not necessary.
Wiring already solved
Watercool says it has also taken the cabling into account: the frame has an integrated fan splitter for the fans on the back. This saves you the hassle of wiring, as you do not have to cable each of the 200mm fans on its own.
Options
The frame is also made in white (26421), and for 140 mm fans there is the MO-RA IV 400 Fan Frame for 140mm Fans - Black. Other parts for the radiator are listed under MO-RA IV Accessories.
Technical data
| Material | Powder-coated sheet steel |
| External dimensions (L x W x H) | 421 x 416 x 10 mm |
| Weight | Approx. 0.55 kg |
| Surface | Black |
| Fan compatibility | 2x 200 x 200 x 30 mm |
| Compatible | MO-RA IV 400 |
Notes
- No screw may reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
- Noctua NF-A20 fans mount with short M4x10 mm screws, 4 per fan.
In the box
Watercool's scope of delivery is the frame on its own.
- 1x MO-RA IV Fan Frame
Watercool's assembly instructions are for the whole MO-RA IV series and show how the fan frame and the fans are mounted, with the dimensions of every size.
