Details

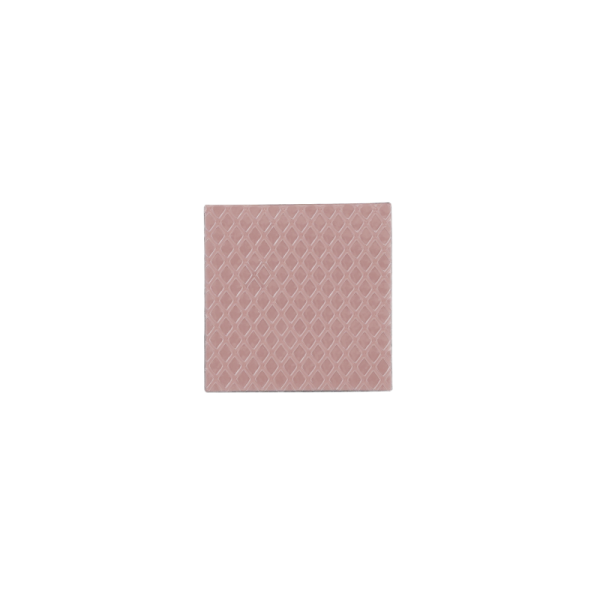

Thermal Grizzly Minus Pad 8 thermal pad, 30 x 30 mm and 0.5 mm thick, one piece, for the gaps between components and a cooler. The same square also comes 1.5 mm and 2.0 mm thick.
Properties
- Size
- 30 x 30 mm
- Thickness
- 0.5 mm
- Pieces
- 1
- Degree of hardness
- Shore 00-60
- Electrically insulating
- Yes (8KV/mm ASTM D149)
- Operating temperature
- -100°C to +250°C
What the pads do

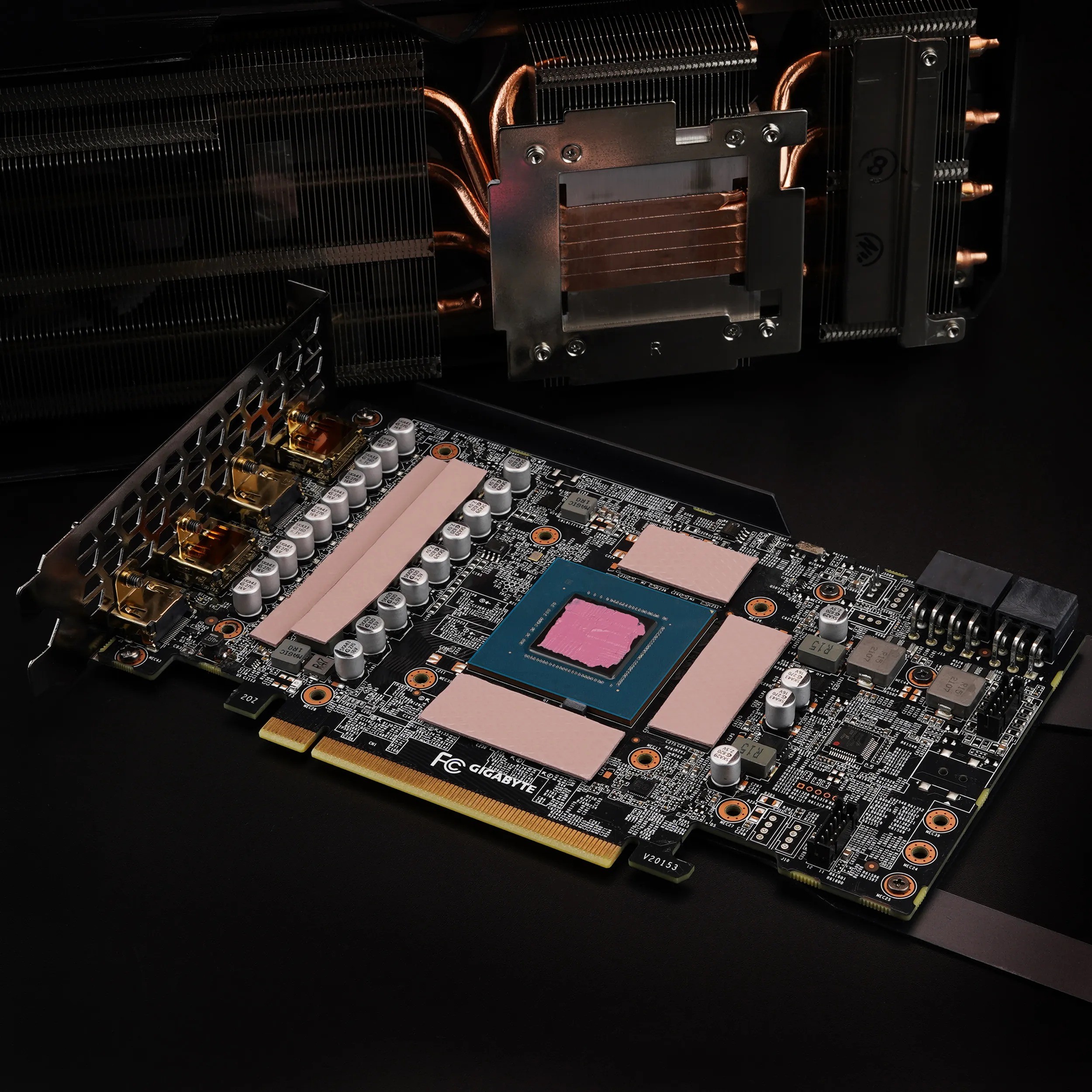

The high performance thermal pads of the Minus Pad series consist of a very elastic and flexible surface area with very high thermal conductivity, compensating for even the smallest of gaps between parts. Thermal Grizzly adds high compressibility and electrical insulation to the list. According to its data sheet, the pads are mainly used when refurbishing graphics cards or converting graphics cards to water coolers, and also when installing M.2 SSDs. Thermal Grizzly's pad range also includes the Minus Pad Extreme V2.
Material
Easy to process, the minus pads are made up of different constituents, based on a ceramic silicon formula complex and nano aluminum oxide. Thus the pads ensure a constant, optimal heat transfer. The color is pink and the flammability rating is V-0. They are all ecofriendly and RoHS-compliant.
Fitting

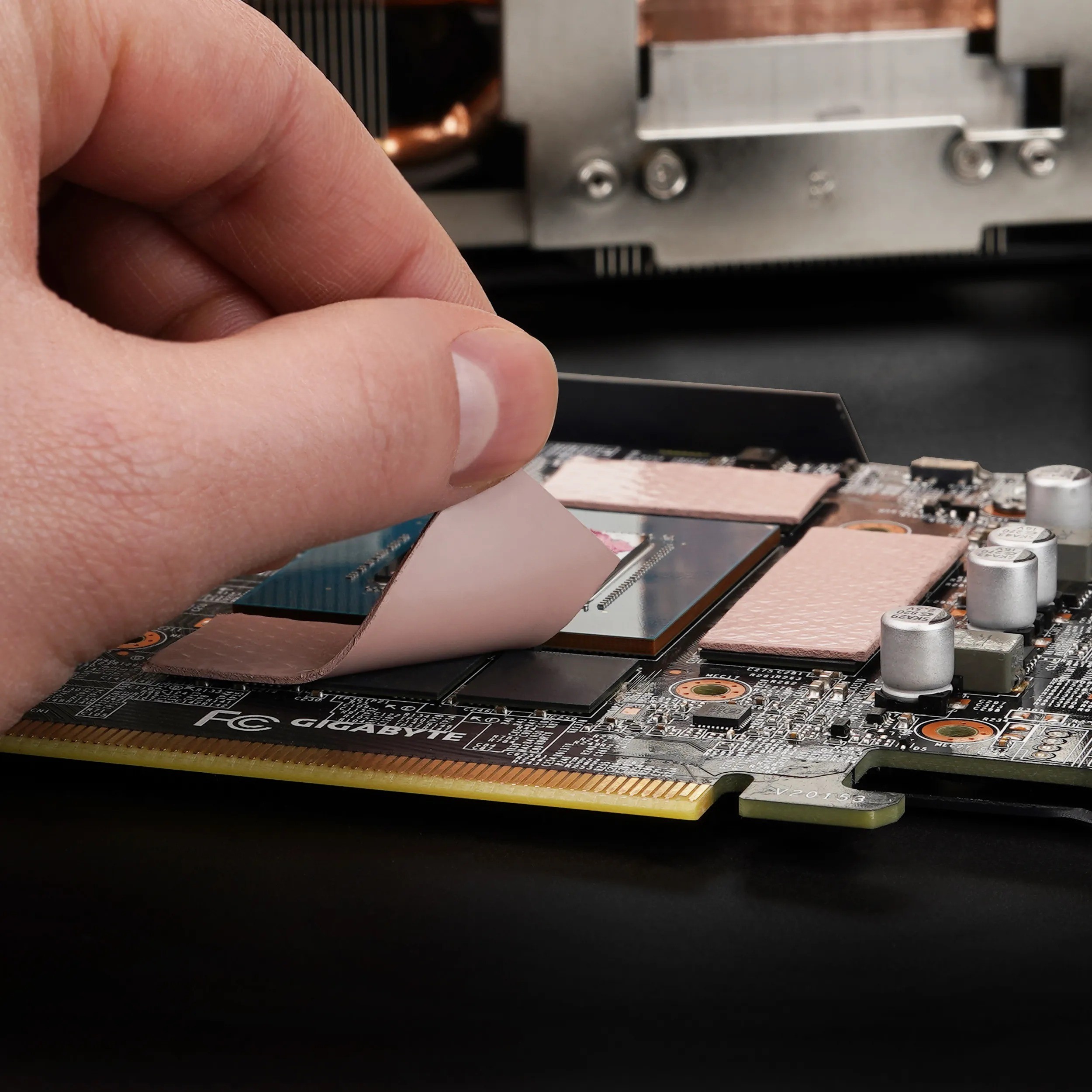

The lightest of touches is enough to attach them optimally. The pad weighs 2 g, or 8 g with the packaging.
Sizes and thicknesses
The minus pads 8 are available in a variety of different sizes and thicknesses: 30x30mm, 120x20mm and 100x100mm, as well as 0,5mm, 1mm, 1,5mm, 2mm and 3mm thick. At 0.5 mm we also stock 120 x 20 mm and 100 x 100 mm pads.
In the box
- 1x thermal pad, 30 x 30 x 0.5 mm
Thermal Grizzly's data sheet is a PDF.
