Details
The DeltaMate extender fittings are water-cooling fittings for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the extender fittings are precision-machined from brass. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper.
General information
The sealing rings (O-rings) are made of highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of DeltaMate fittings allows installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings enables seamless integration of the individual products.

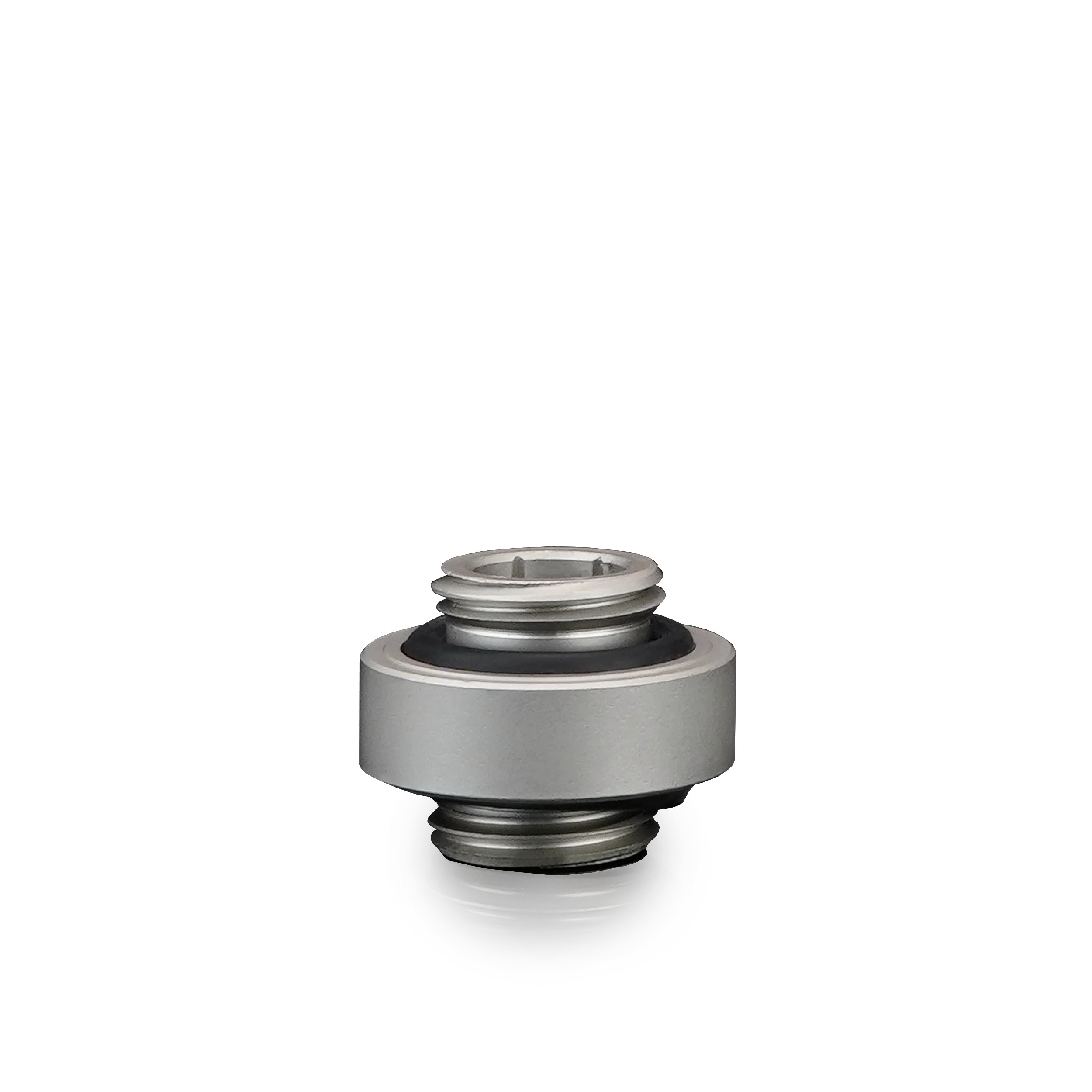

The DeltaMate Extender - MM7R features two G1/4" male threads and offers a high-quality finish in the form of a matt nickel coating, which is also easy to clean. As an extension fitting, the extender is used between two water-cooling components with female threads (for example, a GPU block and a flow sensor).
Properties
- Used for a close connection between two parts with female-thread ports.

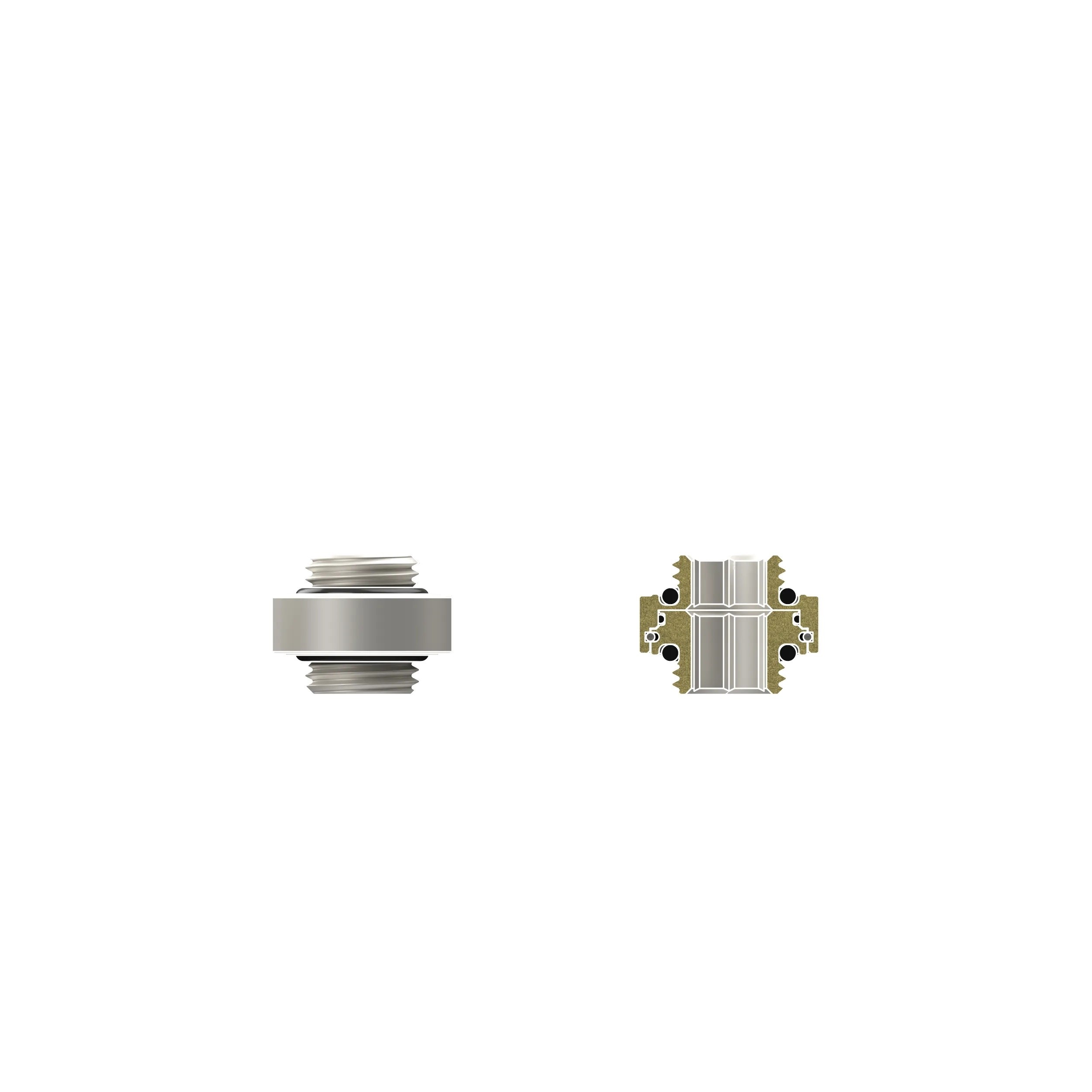

- The swivel joint provides full rotational freedom.
- The internal hex connections allow both sides to be installed together or independently of each other.
- Uniform outer diameter across all DeltaMate fittings for seamless integration.
- Robust design allows installation using an 8 mm hex key.
Additional Information
| Manufacturer | Thermal Grizzly |
|---|---|
| Fitting Type | Extender Fitting |
| Tubing Dimensions | Threaded |
| Fitting Thread | G1/4 |
| Color | Nickel |
| Included | 1x Thermal Grizzly DeltaMate 7mm Male to Male Extender Fitting - MM7R - Matt Nickel |
| Material | Brass |
