Details

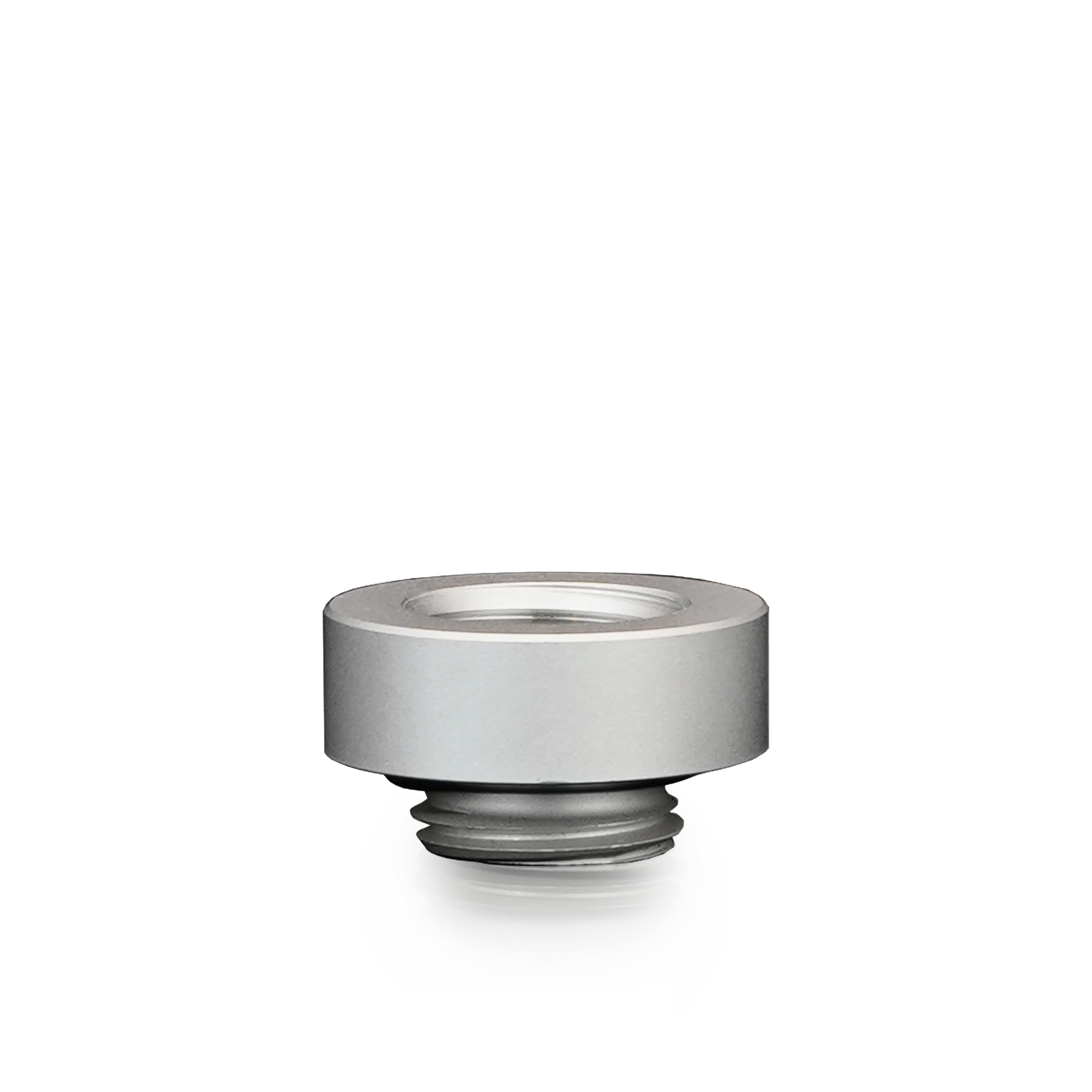

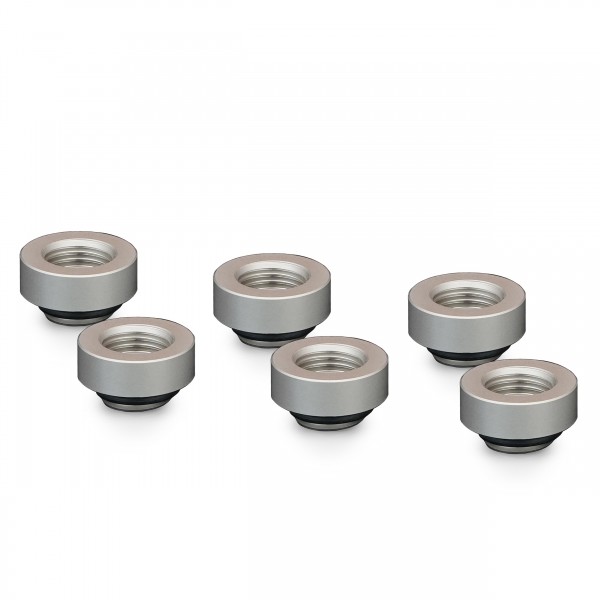

A 6 pack of Thermal Grizzly's DeltaMate 7mm Male to Female Extender Fitting (MF7) in Matt Nickel. Each one sits between a G1/4 port and the fitting screwed into it and adds 7 mm of spacing. Need only one? The single MF7 is here, and the 6 pack also comes in black.
Properties
- Pack
- 6 fittings
- Added spacing
- 7 mm, fixed length
- Threads
- One G1/4" male, one G1/4" female
- Material
- Brass with matt nickel plating, EPDM O-rings
- Tool
- 8mm hex key
- Weight
- 14 g each, 126 g for the boxed 6 pack
Where it goes

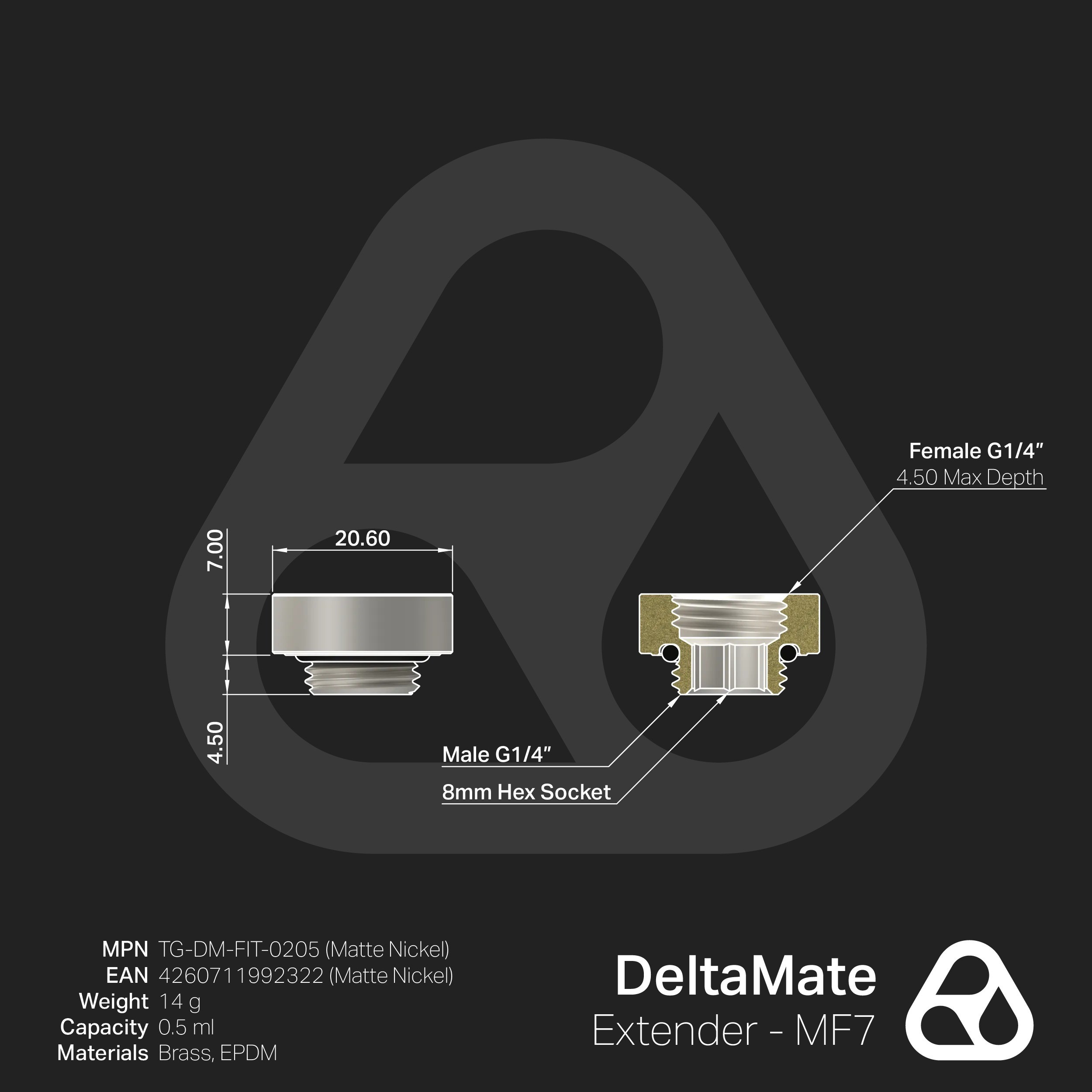

The MF7 features one G1/4" male thread on one end and one G1/4" female thread on the other. Used as an extension fitting, it's installed between the water-cooling component's port and the fitting, increasing the gap by a fixed length. That makes it a practical way to increase the spacing between ports and fittings by a set 7mm. It can be combined with two DeltaMate Rotary - 90° fittings to create a Double Rotary with an offset of 28mm. Thermal Grizzly notes a maximum thread depth of 4.5 mm.
General information
Thermal Grizzly designed its DeltaMate Extender Fittings as water cooling connectors for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, to use the maker's phrase, each extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matt nickel plating that's both easy to clean and, in Thermal Grizzly's words, premium in appearance.
Installation
The robust design allows for installation using an 8 mm hex key. The outer diameter is uniform and consistent with all DeltaMate fittings, which Thermal Grizzly says ensures completely seamless integration of individual components.
In the box
- 6x DeltaMate Extender MF7 fittings in Matt Nickel (1x 6 pack)
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
