Details

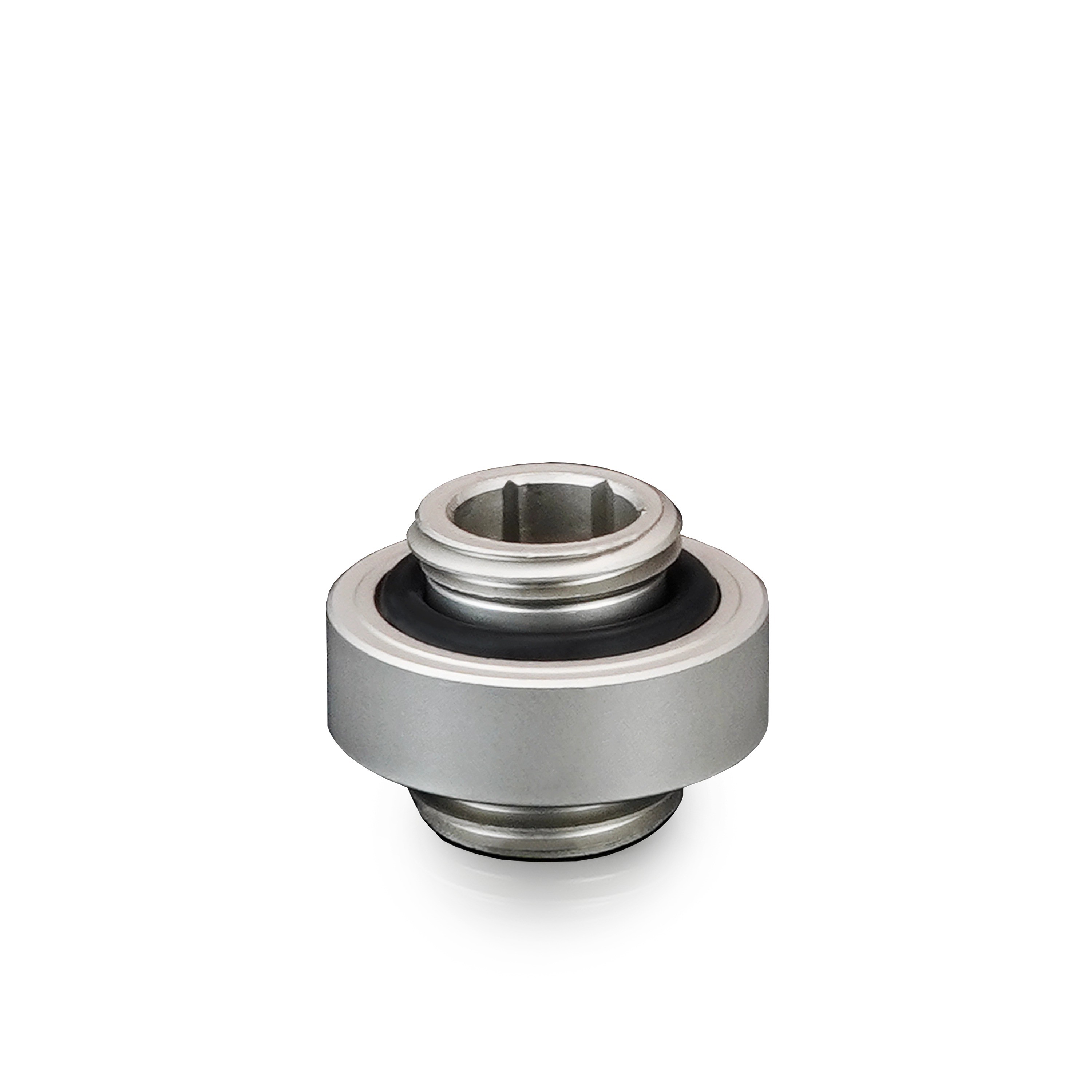

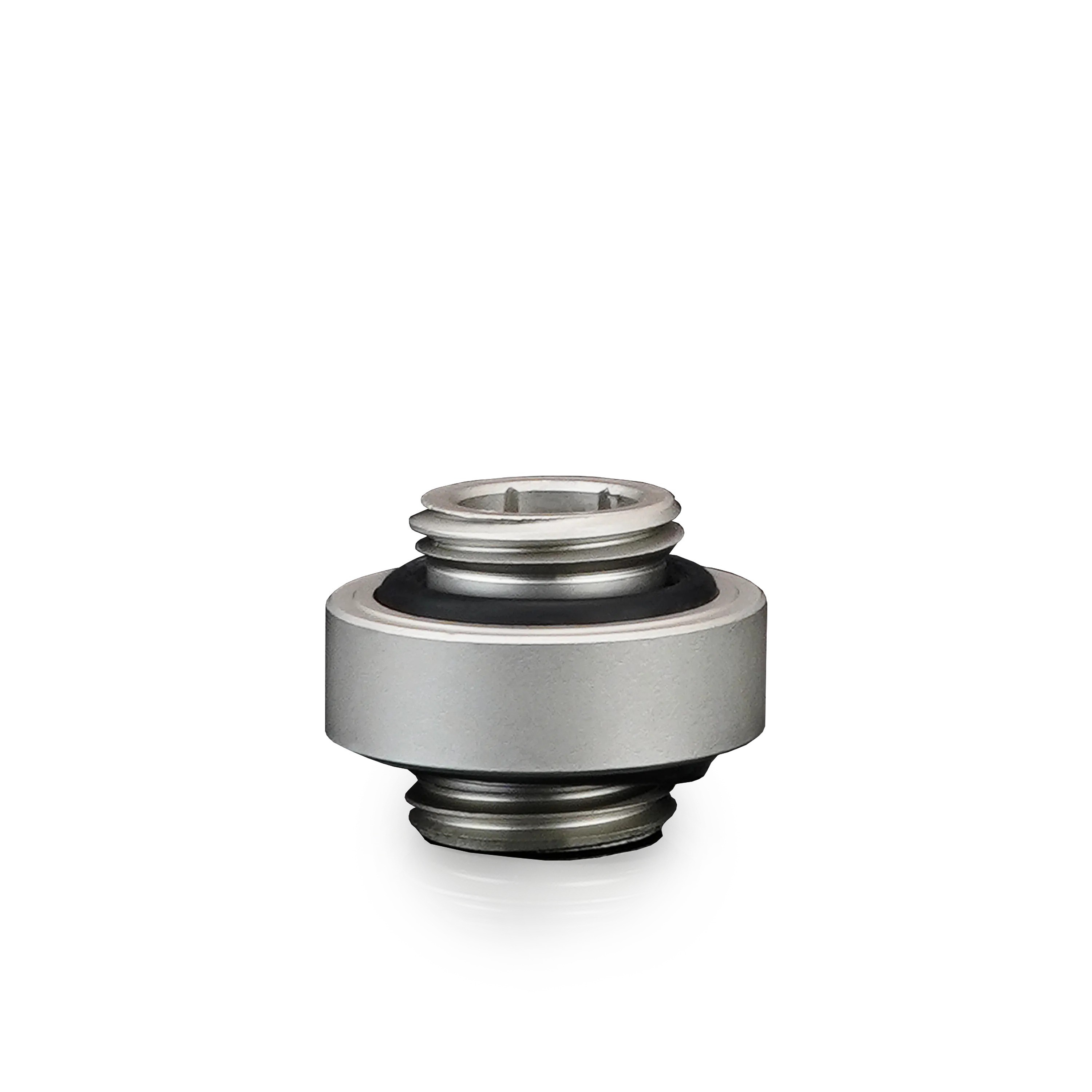

Thermal Grizzly's DeltaMate 7mm Male to Male Extender Fitting (MM7R) in Matt Nickel is an extension fitting with two G1/4" male threads and a swivel joint. It is used as a close link between two water-cooling components with female threads, for example a GPU block and a flow sensor. The same extender comes in black.
Properties
- Threads
- 2x G1/4" male
- Joint
- Swivel, full rotation
- Material
- Brass, matt nickel coating
- O-rings
- EPDM
- Install
- 8 mm hex key, internal hex
- Weight
- 17 g, 19 g boxed

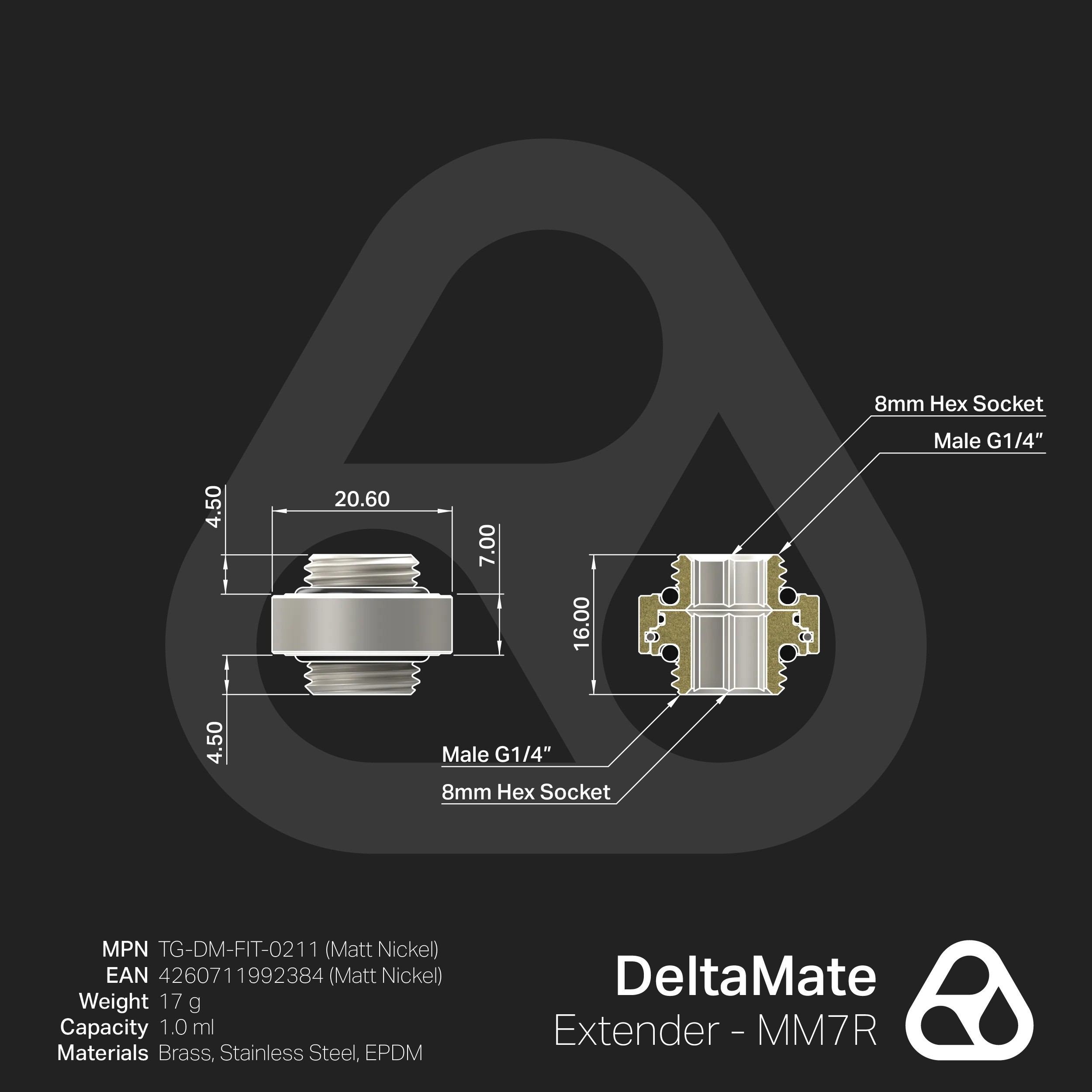

Threads and swivel joint
The MM7R features a male thread on both sides, which gives a close connection between two parts with female-thread ports. Its swivel joint provides full rotational freedom. Its internal hex connections allow the two sides to be installed together, or independently of each other. With one male and one female thread, the 7mm extender is the MF7.
General information
The DeltaMate extender fittings are water-cooling fittings Thermal Grizzly makes for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the extender is precision-machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made of EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The finish comes in the form of a matt nickel coating, which Thermal Grizzly calls high-quality and which is also easy to clean.
Installation
The robust design allows installation using an 8 mm hex key. A uniform outer diameter across all DeltaMate fittings enables seamless integration of the individual products in a loop.
In the box
- 1x DeltaMate MM7R extender fitting, matt nickel
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
