Details

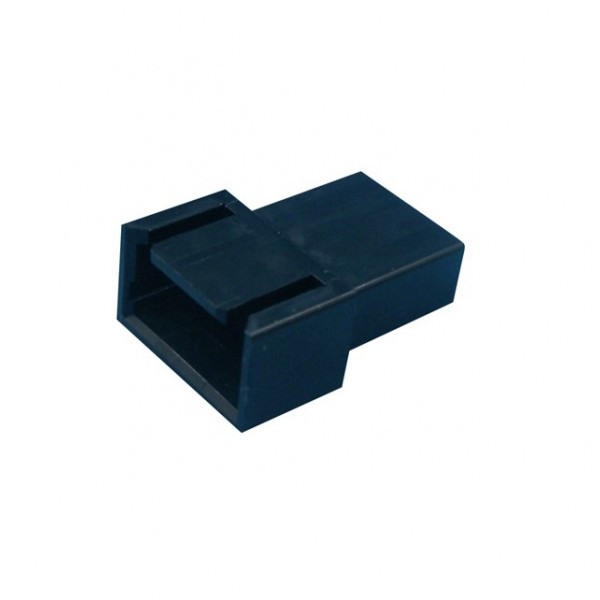

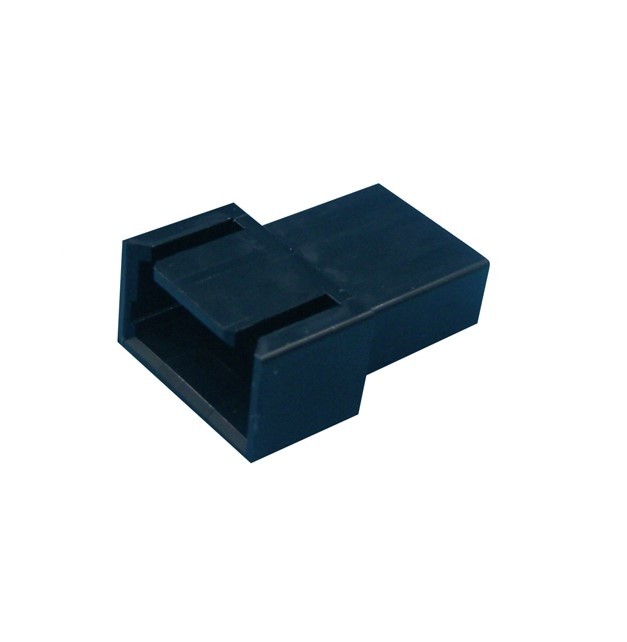

The ModMyMods 4-pin PWM male connector is a black, empty connector housing for building your own PWM fan and pump extensions, or for giving an existing cable a fresh black connector. Fit it with fan male pins (MMM Fan Male Pin - 3 Pack, MOD-0118) and make the cable exactly the way you want it: your length, your wire, your sleeving.
Properties
- Type
- Connector housing, male
- Connector
- 4-pin PWM fan
- Positions
- 4
- Pins used
- fan male pins (MMM Fan Male Pin - 3 Pack, MOD-0118)
- Color
- Black
- Pieces in the pack
- 1
Where it goes
The male 4-pin PWM housing is the one at the input end of a fan extension, where the plug of a PWM fan or pump goes in. It mates with the MMM 4-Pin PWM Female Connector (MOD-0112).
Replace tired connectors
Use the housing to replace beige, white or faded connectors on an existing cable set with a clean black one, or to finish new custom-length cables and extensions. ModMyMods carries replacement connectors and pins for the standard internal power supply, fan and SATA cables, sold one by one so you only buy what you need.
3+1 layout
This connector has the 3+1 layout, so it also takes 3-pin fan connectors as well as 4-pin PWM connectors.
Pins for this connector
The housing comes empty. Crimp fan male pins (MMM Fan Male Pin - 3 Pack, MOD-0118) onto your wires, then push each pin into its cavity from the back of the housing.
Technical data
| Type | Connector housing |
| Connector | 4-pin PWM fan |
| Gender | Male |
| Positions | 4 |
| Pins used | fan male pins (MMM Fan Male Pin - 3 Pack, MOD-0118) |
| Mates with | MMM 4-Pin PWM Female Connector (MOD-0112) |
| Color | Black |
Notes
- Pins are sold separately: fan male pins (MMM Fan Male Pin - 3 Pack, MOD-0118).
- Check the type and gender of the connector you are replacing before you order, so the new housing matches it.
- To take a pin back out of the housing, use a pin extractor such as the ModMyMods Fan / JST / SL Pin Extractor Tool (MOD-0319).
In the box
- 1x MMM 4-Pin PWM Male Connector - Black
