Details

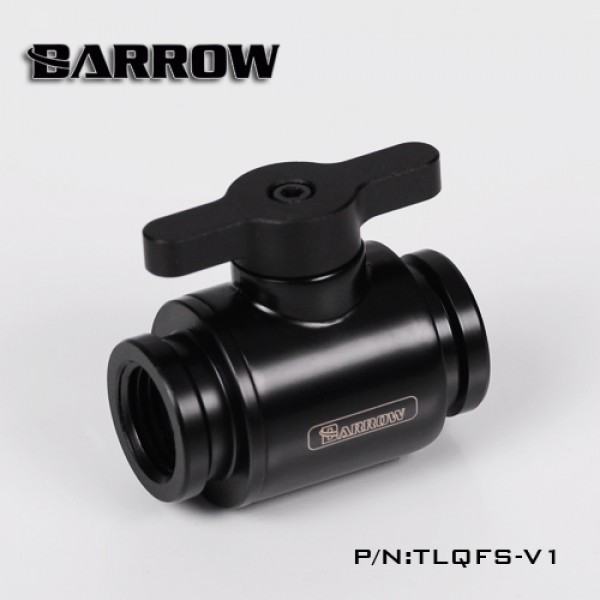

The Barrow TLQFS-V1 is a mini ball valve with a G1/4" female thread on each end. A quarter turn of the aluminum handle opens or closes the flow, so you can shut off part of the loop or drain it. The body is H59 brass in black, and this version has a black aluminum handle.
Properties
- Type
- Ball valve (shut-off valve)
- Thread
- G1/4" female on both ends
- Size (L x H)
- 35.7 x 33.5 mm
- Material
- H59 brass body, aluminum alloy handle
- Color
- Body black, handle black
- Pieces in the pack
- 1
Shut off or drain the loop
Barrow makes this valve for stopping and draining the water in a water cooling loop. Put it at the lowest point of the loop with a fitting and a short tube as a drain, or between two parts of the loop so you can close it and take one part out without emptying everything.
Small body, metal handle
The valve is only 35.7 mm long, and the ends are 18 mm across. The flat T-handle is aluminum alloy; Barrow says it makes the valve easy to turn.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Standard G1/4" connections
Both ends are standard G1/4" female threads, so the valve takes fittings, extenders and adapters from Barrow and from other makers. Screw a male to male adapter into one end to mount the valve straight onto a port.
Technical data
| Model | TLQFS-V1 |
| Type | Mini ball valve, female to female |
| Threads | G1/4" female | G1/4" female |
| Length | 35.7 mm |
| Height with handle | 33.5 mm |
| End diameter | 18 mm |
| Material | H59 brass body, aluminum alloy handle |
| Body color | Black |
| Handle color | Black |
Notes
- Barrow makes the valve body in black, white and shiny silver, with handles in several colors. This listing is the black body with a black handle.
- Fittings are not included; each end needs its own G1/4" fitting.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Mini Ball Valve Fitting "Metal Handle Version" - Black/Black
