Details

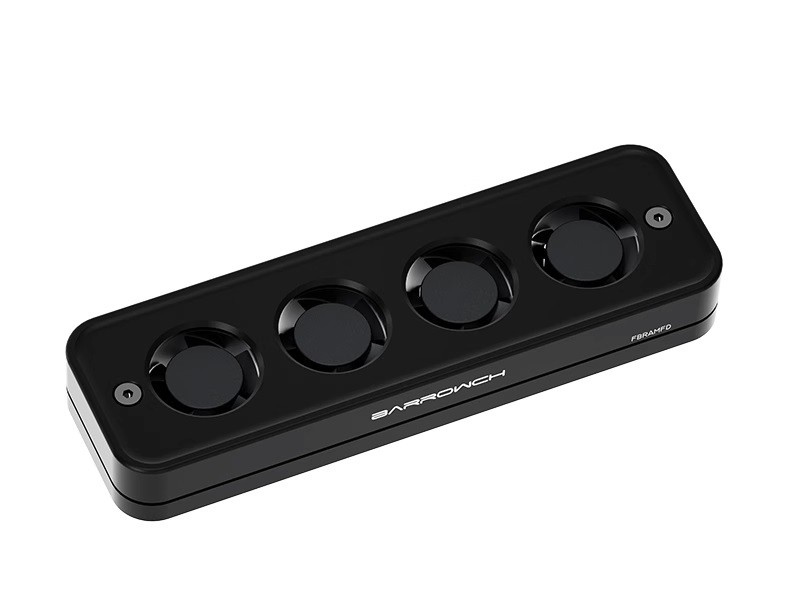

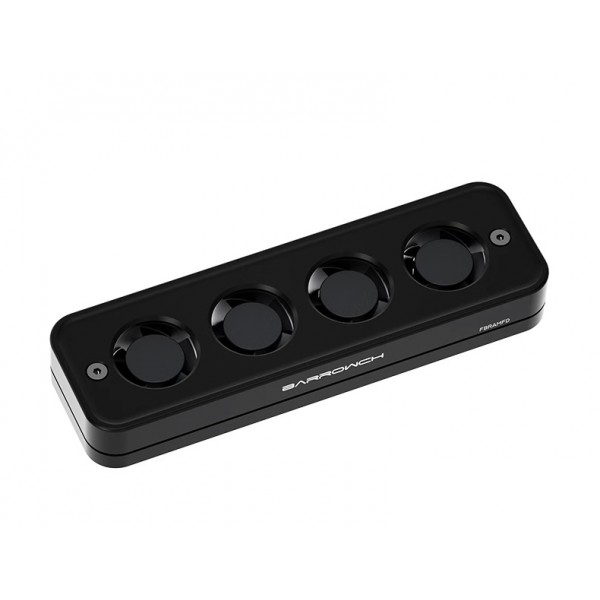

The Barrowch FBRAMFD is an active air cooling module for desktop memory. Four 8000 RPM PWM fans in a slim black aluminum housing sit on top of Barrowch FBRAMLD-01 memory heatsinks and push fresh air down into them, which Barrow says further lowers the temperature of fast running memory. The FBRAMLD-01 housings are sold separately.
Properties
- Type
- RAM fan module, 4 PWM fans
- Fan speed
- 8000 RPM (Barrow)
- Fan connection
- 4-pin PWM fan header
- Use with
- Barrowch FBRAMLD-01 RAM housings (sold separately)
- Size (L x W x H)
- 138 x 42 x 18 mm
- Material
- Aluminum alloy
- Color
- Black
- Pieces in the pack
- 1 set
Four PWM fans over the memory
Barrow fits the module with four 8000 RPM fans with PWM speed control. Connected to a 4-pin fan header, their speed follows the temperature inside the case, so Barrow says they balance cooling and noise.
Built on the FBRAMLD-01 memory vest
Barrow calls the FBRAMLD-01 housings memory vests. The FBRAMFD screws onto the top of a row of them and blows air into their vents from above. Barrow shows it on a set of four modules, and lists the FBRAMFD without the vests, so order one FBRAMLD-01 for every module.
Installation
- Fit each memory module into its FBRAMLD-01 housing (remove any original heat spreader first) and plug the modules into the motherboard.
- Undo the two screws of the upper shell of the FBRAMFD and lift it off.
- Set the lower part with the fans on the memory housings and fix it with the mounting screws, as Barrow shows.
- Put the upper shell back on and tighten its two screws.
- Connect the cable: the plug on the module end only fits one way; connect the other end to a 4-pin fan header on the motherboard.
Technical data
| Model | FBRAMFD |
| Type | Active RAM air cooling module |
| Fans | 4, PWM |
| Fan speed | 8000 RPM |
| Connection | 4-pin PWM fan header |
| Dimensions (L x W x H) | 138 x 42 x 18 mm |
| Fits on | Barrowch FBRAMLD-01 RAM housings |
| Material | Aluminum alloy |
| Color | Black |
Notes
- The RAM heatsink housings (Barrowch FBRAMLD-01) are not included.
- Barrow makes the FBRAMFD in black and white. This listing is the black version.
- Check the clearance under your CPU cooler and side panel: the fan module is 18 mm tall and sits on top of the memory housings.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrowch RAM Active Air Cooler - Black
- 1x PWM cable to control the fans
- 1x Mounting hardware
