Aquacomputer Retrofit Kit Socket AM5/AM4/3000/5000/7000/8000/9000 For Cuplex Kryos NEXT - Acrylic Glass Version (21789)

Name: Aquacomputer Retrofit Kit Socket AM5/AM4/3000/5000/7000/8000/9000 For Cuplex Kryos NEXT - Acrylic Glass Version (21789)
Brand: Aquacomputer
SKU: 1019686
Price: 24.00 USD
Availability: OutOfStock

Availability: Out of stock

Sku: 1019686

$24.00

Quick Overview

This set contains the necessary parts to adapt an existing Cuplex Kryos NEXT or Cuplex Kryos NEXT VISION to socket AM4/3000/5000 motherboards.

Be the first to review this product

Email to a Friend

Out of stock. Want an email when it is back? One email when it is back in stock. No account needed, no newsletter.

Specifications

Manufacturer: Aquacomputer
Product Type: CPU Mounting Plate
Socket Type: AMD AM4/AM5
Color: Stainless Steel
Material: Stainless Steel

Details

The Aquacomputer Retrofit Kit Socket AM5/AM4/3000/5000/7000/8000/9000 For Cuplex Kryos NEXT - Acrylic Glass Version (21789) is an AMD mounting kit for a CPU water block. It contains the parts necessary to adapt an existing cuplex kryos NEXT or NEXT VISION to Socket AM5 or AM4 motherboards. Please note: it is compatible with the acrylic glass version only.

Properties

For: cuplex kryos NEXT and NEXT VISION, acrylic glass version
Sockets: AM5, AM4

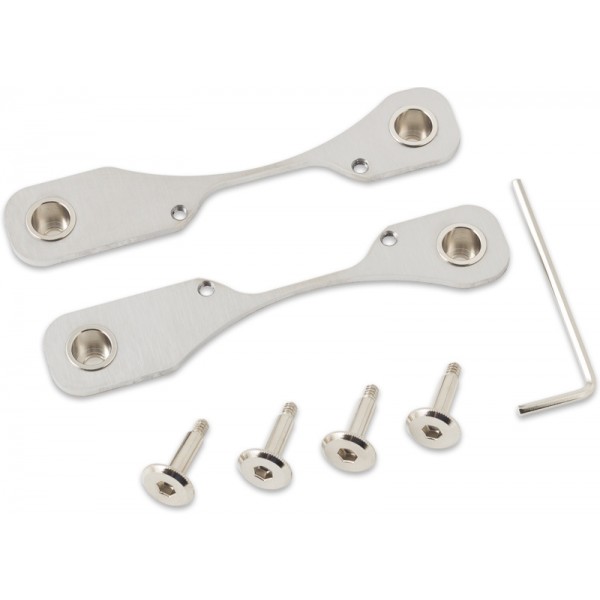

Pieces: 2 mounting plates with spring cups, 4 knurled screws
Material: Stainless steel plates

Off-center mounting

On the AM5/AM4 9000/8000/7000/5000/3000 retention system the block does not sit centered on the CPU. Aquacomputer places it slightly off-center instead, in line with the asymmetrical internal design of these CPU series, for optimum heat dissipation.

Swapping the retention plates

Besides the plates, the set also includes a suitable set of mounting material: four knurled screws. First take the four screws out of the base part of the block and lift the base part off. The acrylic version skips the set screw step, so the old retention plates then pull straight out of the water block housing.

Slide the new plates into the recesses of the housing. If the gaskets came off the housing, put them back into their grooves, aligned exactly with them. Then set the base part on the housing and fit the countersunk head screws from the first step. Tighten them by hand only, with no excessive force.

What it fits

The kit is for a block you already own; mounting it on the motherboard then follows the block's own installation steps. Other mounting parts are in our mounting hardware section. Blocks that are not acrylic glass take the standard version of this kit instead.
